Part no.: 10.01.06.01975

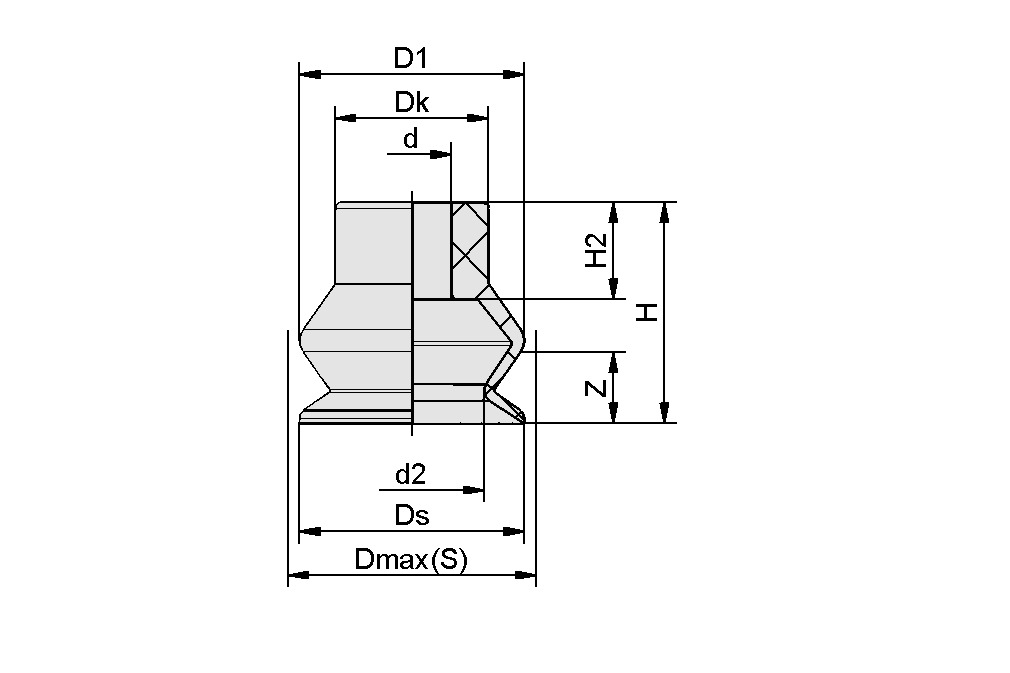

| Attribute | Value |
|---|---|
| d | 6.6 mm |
| d2 | 12.2 mm |
| D1 | 19 mm |
| Dk | 13 mm |
| Dmax(S) | 21.5 mm |
| Ds | 19 mm |
| H | 18.7 mm |
| H2 | 8.2 mm |
| Z (Stroke) | 6 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 5.9 N |
| Pull-off force | 10 N |
| Volume | 2.02 cm³ |
| Workpiece radius min. (convex) | 20 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 19 |
| Nipple family | N 056 |
| Number of folds | 1.5 |
| Suction cup material | Polyvinyl chloride PVC |
| Material hardness [Shore A] | 50 Shore A |
| Weight | 1.5 g |
| Product family | FGA |
| Nipple | N 056 |
| Thread G1 | M5-M |
| Length L1 | 17 (mm) |
| Fitting length | 5 (mm) |
| Nominal size | 200 |
| Material | Aluminum |
| SW2 | 4 (mm) |
| Nipple | N 056 |
| Thread G1 | G1/8"-M |
| Length L1 | 20 (mm) |
| Fitting length | 5 (mm) |
| Nominal size | 400 |
| Material | Aluminum |
| SW2 | 4 (mm) |
| Nipple | N 056 |
| Thread G1 | G1/8"-F |
| Length L1 | 17 (mm) |
| Fitting length | 10 (mm) |
| Nominal size | 400 |
| Material | Aluminum |
| SW2 | 4 (mm) |
