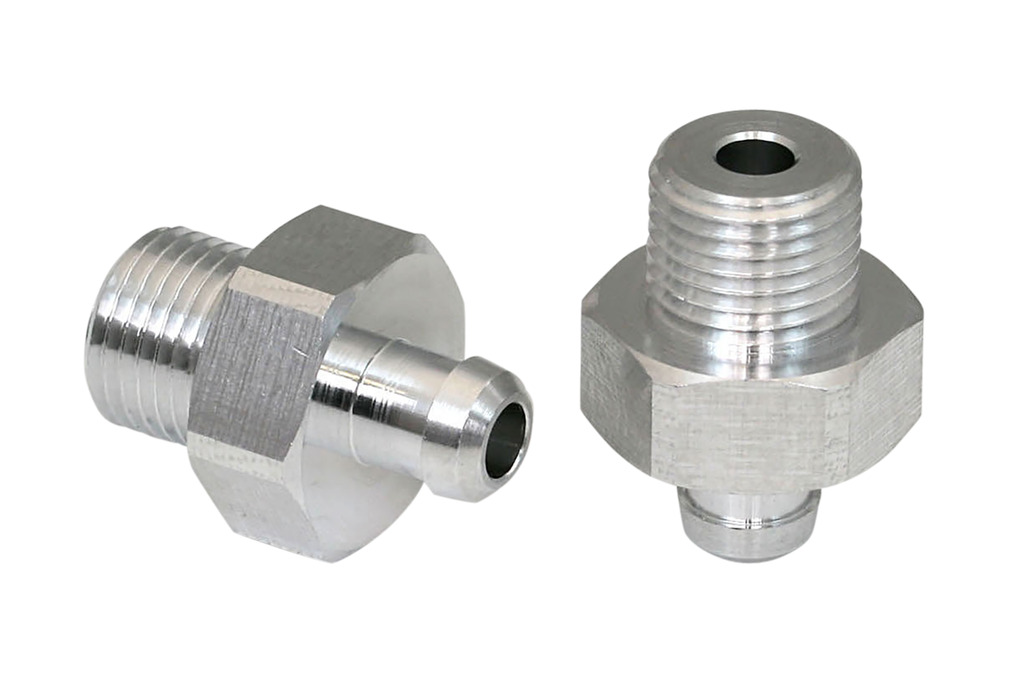

Part no.: 10.01.06.03080

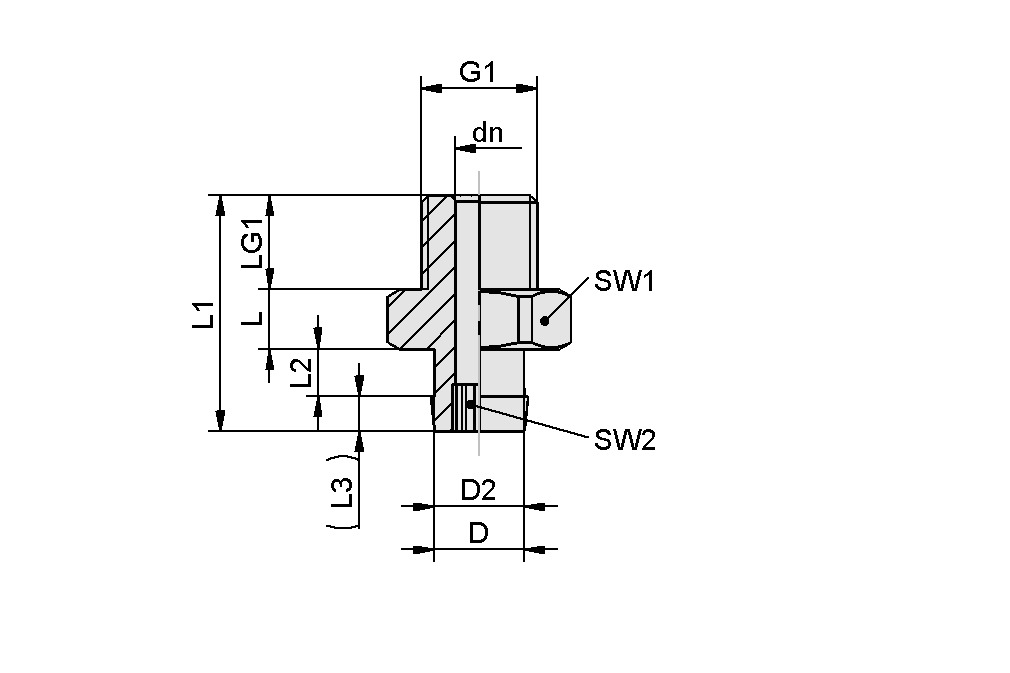

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 2 mm |
| D | 8.2 mm |
| D2 | 7.6 mm |
| G1 | M5-M |
| L | 5 mm |
| L1 | 17 mm |
| L2 | 4 mm |
| L3 | 3 mm |
| LG1 | 5 mm |
| SW1 | 14 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nipple family | N 056 |
| Material | Aluminum |
| Weight | 3.2 g |
