Part no.: 10.01.06.05810

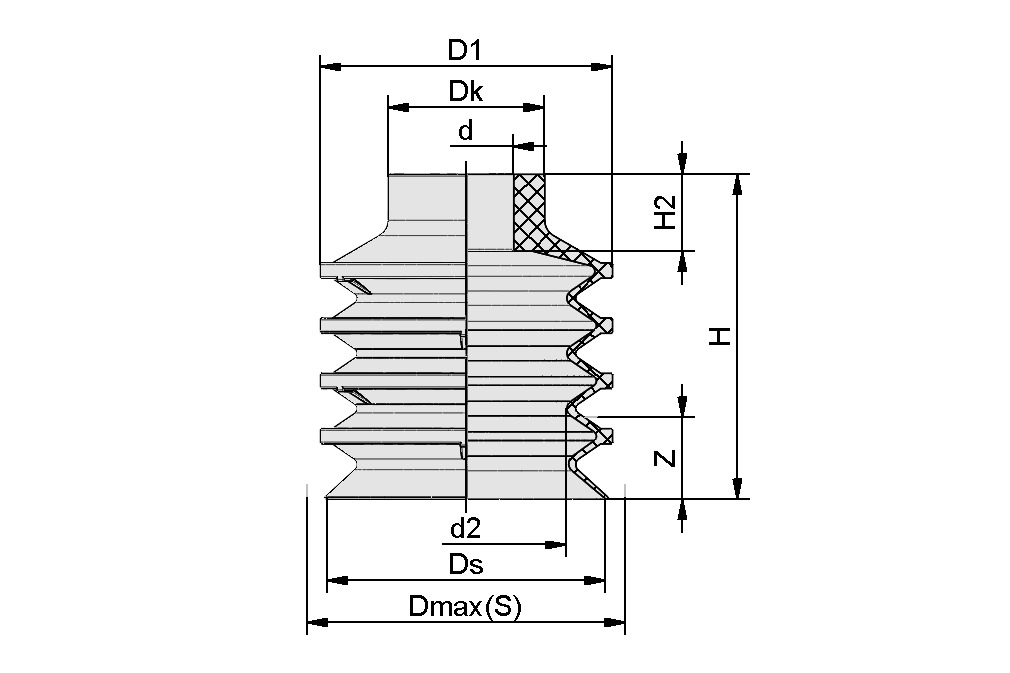

Design Data
Design Data
| Attribute | Value |
|---|---|
| Z (Stroke) | 14.8 mm |
| D1 | 29.8 mm |
| Dk | 29 mm |
| Dmax(S) | 30 mm |
| Ds | 27.5 mm |
| d2 | 18.3 mm |
| d | 20 mm |
| H | 37.1 mm |
| H2 | 14 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 4.5 |
| Size | 30 |
| Suction cup material | Nitrile rubber NBR |
| Suction force (-600mbar) | 15.8 N |
| Product family | FGC |
| Material hardness [Shore A] | 55 Shore A |
| Nipple family | SC 090 |
