SPB2f 15 SI-55 SC040
Part no.: 10.01.06.04090

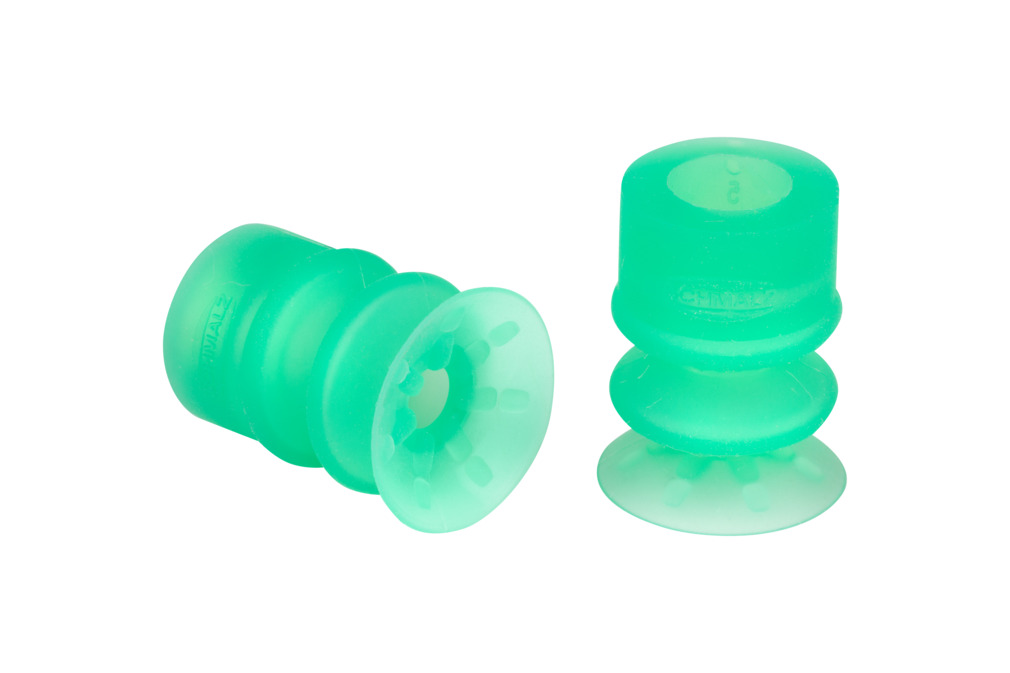

Bellows suction cup (round) for very uneven workpieces
| Size | 15 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Number of folds | 2.5 |
Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 7.5 mm |
| d1 | 10.5 mm |
| d2 | 4 mm |
| D1 | 14 mm |
| Dk | 13.1 mm |
| Dmax(S) | 17 mm |
| Ds | 15 mm |
| H | 20.3 mm |
| H2 | 4.6 mm |
| H3 | 6.6 mm |
| Z (Stroke) | 7.3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force at -200 mbar | 0.25 N |
| Suction force at -400 mbar | 0.5 N |
| Suction force (-600mbar) | 0.75 N |
| Volume | 1.2 cm³ |
| Size | 15 |
| Nipple family | SC 040 |
| Number of folds | 2.5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 1.5 g |
| Product family | SPB2f |
