SGP 30 HT1-60 N033
Part no.: 10.01.01.12395
Flat suction cup (round) for careful gripping of paper, plastic film, etc.
| Size | 30 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Material property | non-marking |

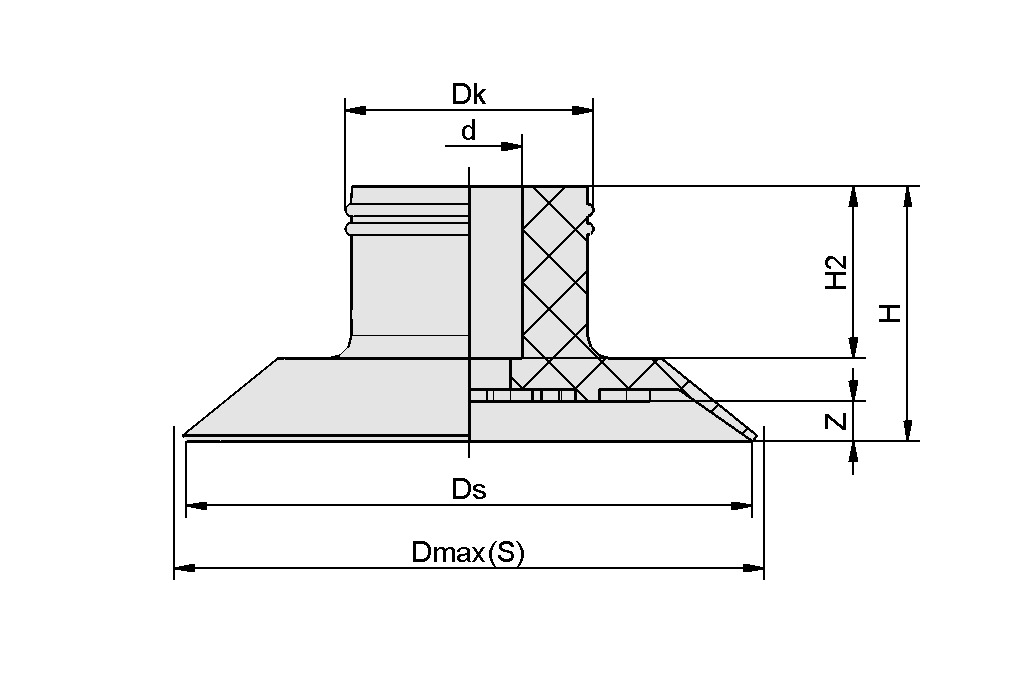

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 11.2 mm |
| Dk | 15.6 mm |
| Dmax(S) | 32 mm |
| Ds | 30 mm |
| H | 22.2 mm |
| H2 | 15.7 mm |
| Z (Stroke) | 2 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 19 N |
| Volume | 3 cm³ |
| Size | 30 |
| Nipple family | N 033 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 3.1 g |
| Product family | SGP |
