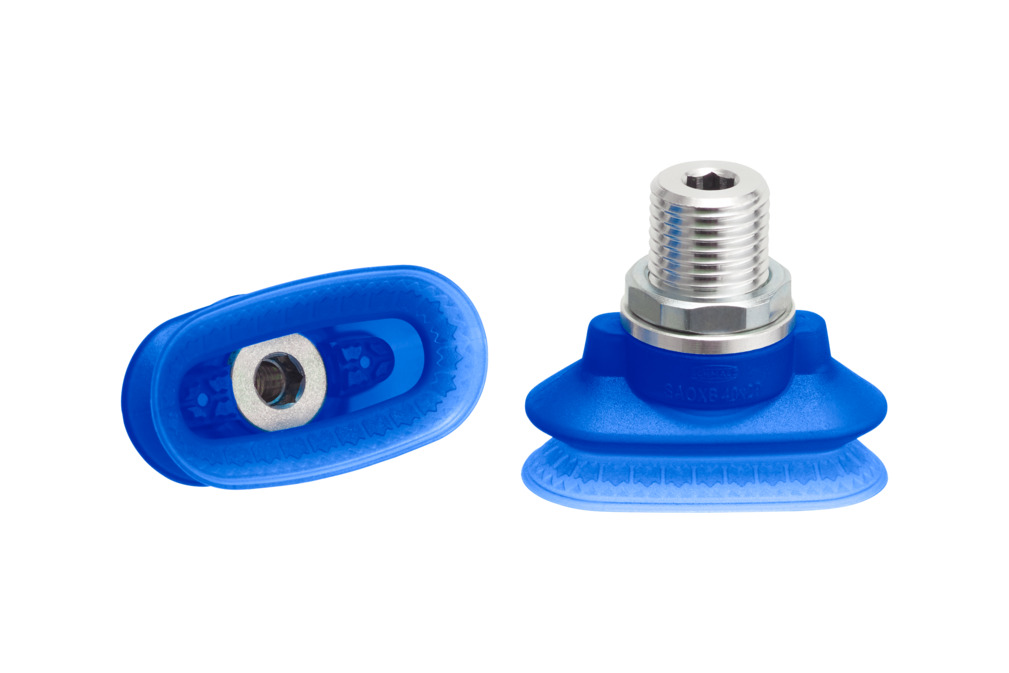

Part no.: 10.01.06.05991

Design Data

Attribute	Value
G1	M12-M
H	26.4 mm
Z (Stroke)	7.5 mm
B1	19.6 mm
L1	39.5 mm
Bs	20 mm
dn	4.5 mm
SW3	5 mm
Ls	40 mm
Lmax.(S)	43 mm
Bmax(S)	24 mm
LG1	8.5 mm
SW1	18 mm
SW2	5 mm
l2	29.2 mm
b2	9.2 mm

Technical Data

Attribute	Value
Suction cup material	Elastodur ED
Suction force (-600mbar)	14.3 N
Product family	SAOXB
Nipple material	Aluminum
Number of folds	1.5
Material hardness [Shore A]	85 Shore A
Dimension (LxW)	40x20

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Documentation

Spare parts

SAOXB 40x20 ED-85 SC042 10.01.06.05780 High-speed bellows suction pads for maximum dynamics on highly curved and oiled surfaces

Dimension (LxW)	40x20
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 (Shore A)
Number of folds	1.5
