SAX 100 ED-85 G3/8-AG

Part no.: 10.01.19.00200

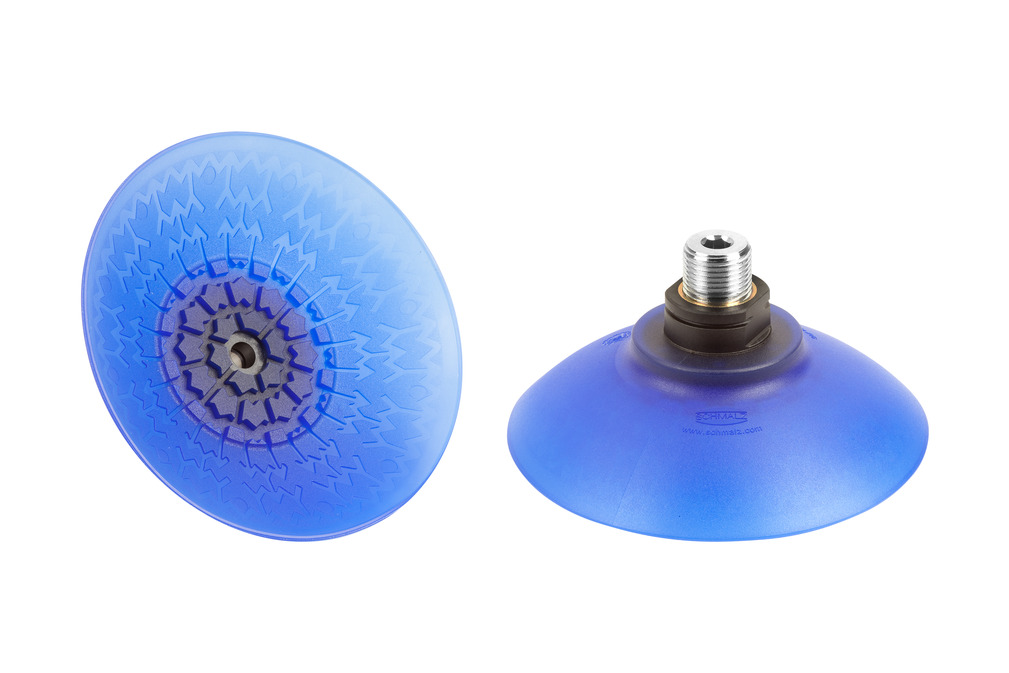

Bell suction cup (round) for best adaptation to strongly curved surfaces

Size	100
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 (Shore A)
Connection	G3/8"-M
Number of folds	0

Product information

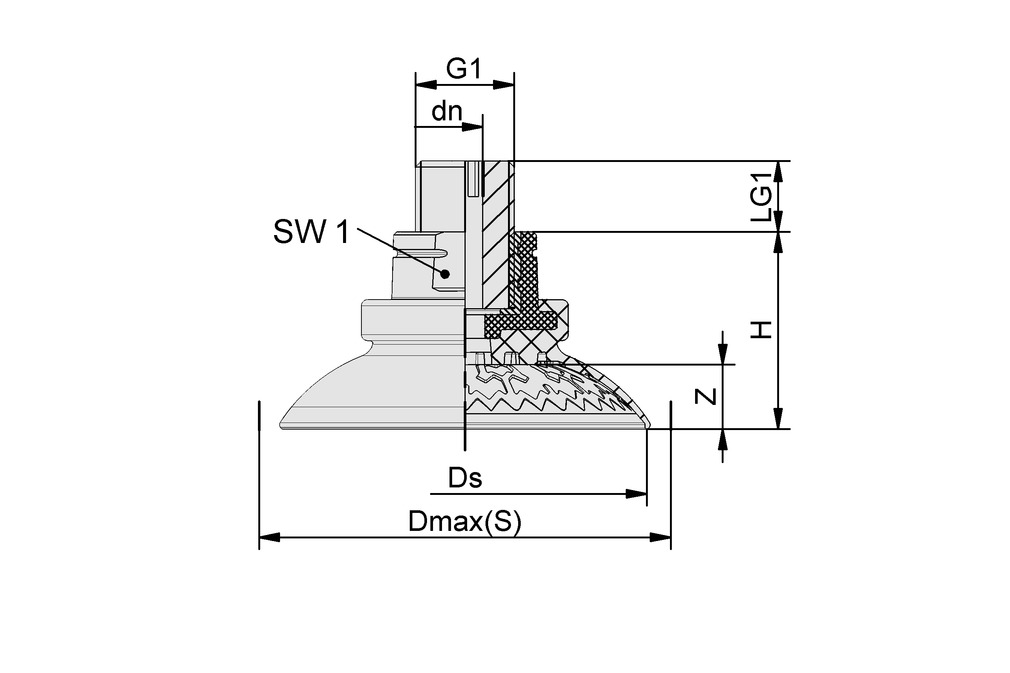

Design Data

Attribute	Value
dn	6.1 mm
Dmax(S)	111.1 mm
Ds	100.1 mm
G1	G3/8"-M
H	39.7 mm
LG1	12 mm
SW1	22 mm
Z (Stroke)	17.3 mm

Technical Data

Attribute	Value
Suction force (-600mbar)	412 N
Lateral force	284 N
Lateral force oily surface	414 N
Volume	96 cm³
Workpiece radius min. (convex)	40 mm
Size	100
Connection	G3/8"-M
Number of folds	0
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 Shore A
Weight	56.5 g
Product family	SAX

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
