Part no.: 10.01.24.00021

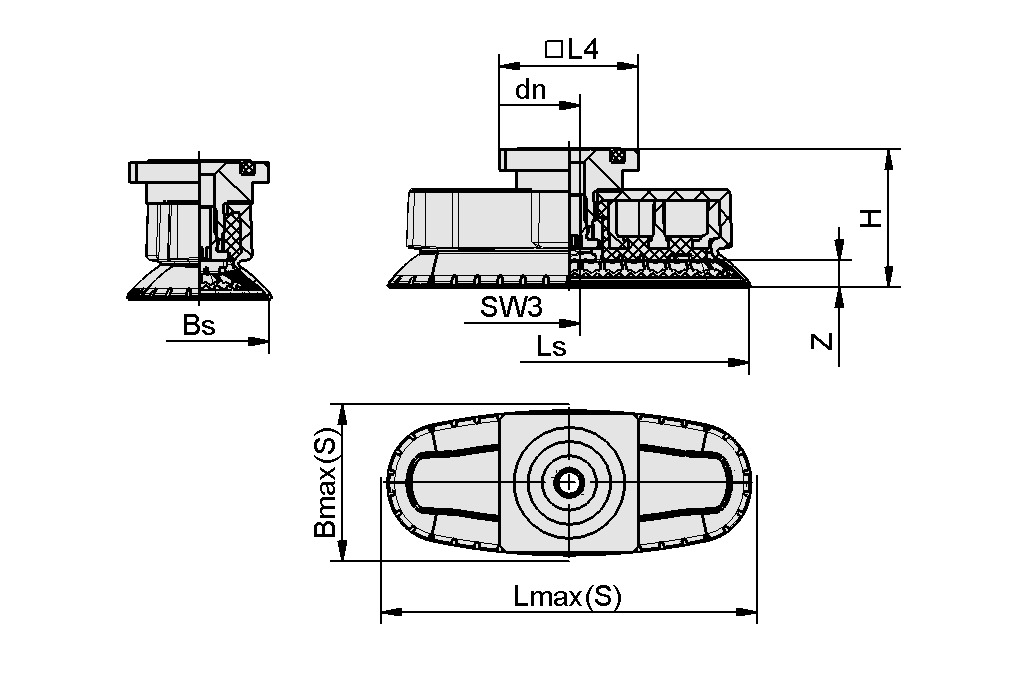

| Attribute | Value |
|---|---|
| Bmax(S) | 24 mm |
| Bs | 18.7 mm |
| dn | 5.1 mm |
| H | 30.8 mm |
| L4 | 31.8 mm |
| Lmax.(S) | 67 mm |
| Ls | 61.8 mm |
| SW3 | 5 mm |
| Z (Stroke) | 4.5 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 56 N |
| Lateral force | 44 N |
| Lateral force oily surface | 62 N |
| Volume | 5 cm³ |
| Workpiece radius min. (convex) | 10 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Dimension (LxW) | 60 x 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 Shore A |
| Weight | 34.9 g |
| Product family | SAOXM |
| Dimension (LxW) | 60 x 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Size | 45 |
| Shape | Anti Rot / Friction Elem |
| Utilization | SAOXM 60x20 |
| Connection type | 045-AR |
| Length L | 9.5 (mm) |
| Shape | Self Locking |
| Dimension (LxW) | 60 x 20 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Size | 45 |
| Shape | Anti Rot / Friction Elem |
| Utilization | SAOXM 60x20 |
