Part no.: 10.01.01.13486

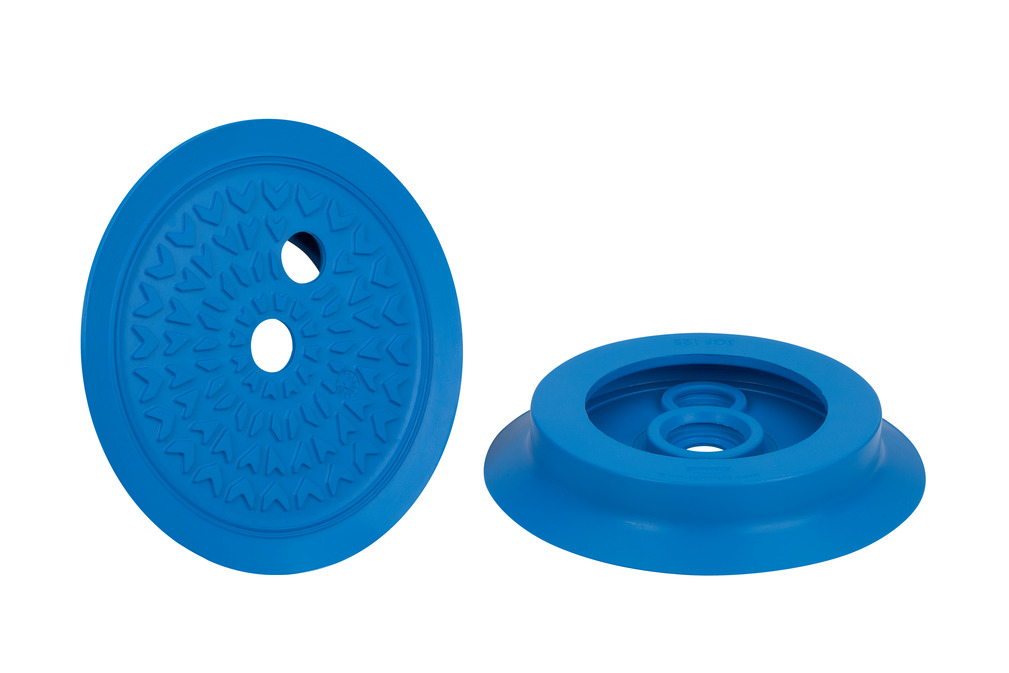

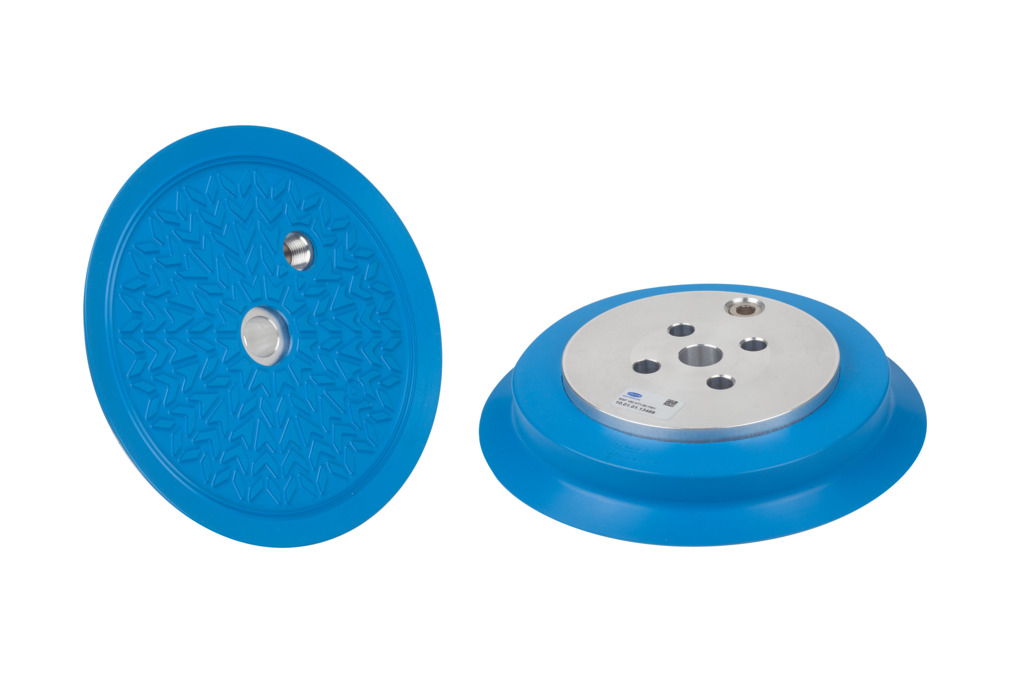

Flat suction cup (round) for highly dynamic handling of glass
| Size | 150 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Connection | 4x8,7mm LK38,2 90° |
| Attribute | Value |
|---|---|

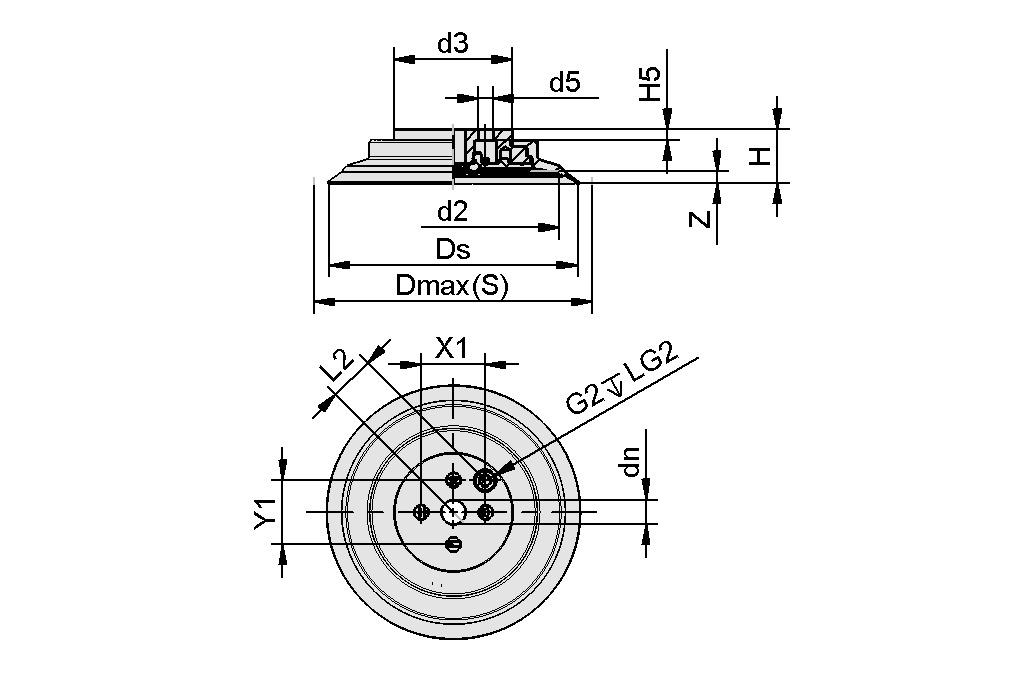

| d2 | 125 mm |
| d3 | 93 mm |
| d5 | 8.7 mm |
| dn | 14.5 mm |
| Dmax(S) | 156 mm |
| Ds | 148.3 mm |
| G2 | G1/4"-F |
| H | 27.7 mm |
| H5 | 6 mm |
| L2 | 36.5 mm |
| LG2 | 20 mm |
| X1 | 27 mm |
| Y1 | 27 mm |
| Z (Stroke) | 3.3 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1,060 N |
| Suction force d2 | 730 N |
| Volume | 64.88 cm³ |
| Workpiece radius min. (convex) | 2,000 mm |
| Hose inner diameter (recom.) d | 9 mm |
| Size | 150 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 490 g |
| Product family | SGF |
| Size | 150 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Height H | 21.7 (mm) |
| Thread G1 | G1/4"-M |
| Material | Brass |
| Surface | nickel plated |
| Thread G1 | G1/4"-M |
| Thread G2 | G1/8"-F |
| Spring stroke Z | 13 (mm) |
| Size | 160 |
| Clamping range [mm] | 150.0 ... 180.0 mm |
| Temperature resistance | 80 (°C) |
