DR-SGF 150 HT1-60
Part no.: 10.01.01.13020
Rubber Seal for SGF suction cup
| Size | 150 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Height H | 21.7 (mm) |

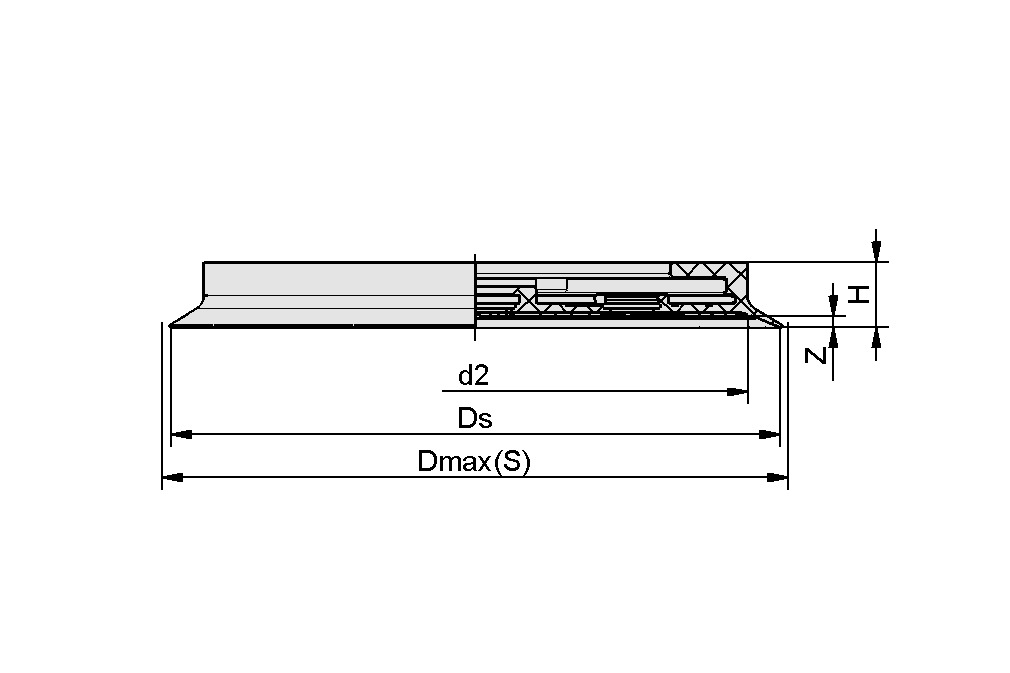

Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 125 mm |
| Ds | 148.3 mm |
| Dmax(S) | 156 mm |
| H | 21.7 mm |
| Z (Stroke) | 3.3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1,060 N |
| Volume | 64.88 cm³ |
| Workpiece radius min. (convex) | 2,000 mm |
| Size | 150 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 115.3 g |
| Product family | DR-SGF |
