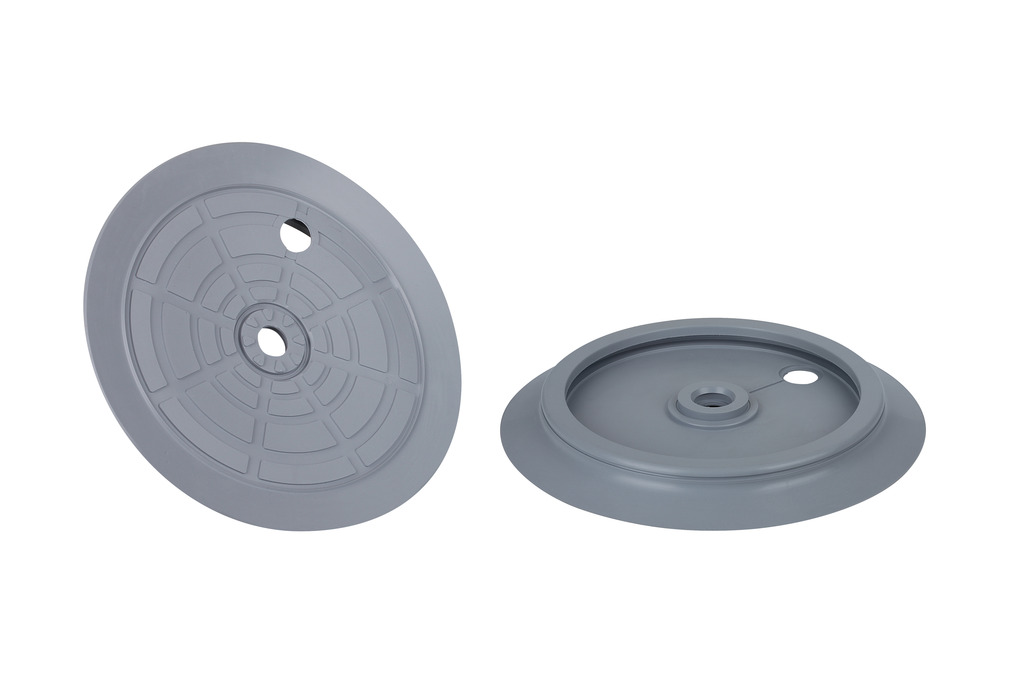

DR-SPU 210 NBR-55 B10.01.01.10502Sealing ring for suction plate SPU
| Size | 210 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |

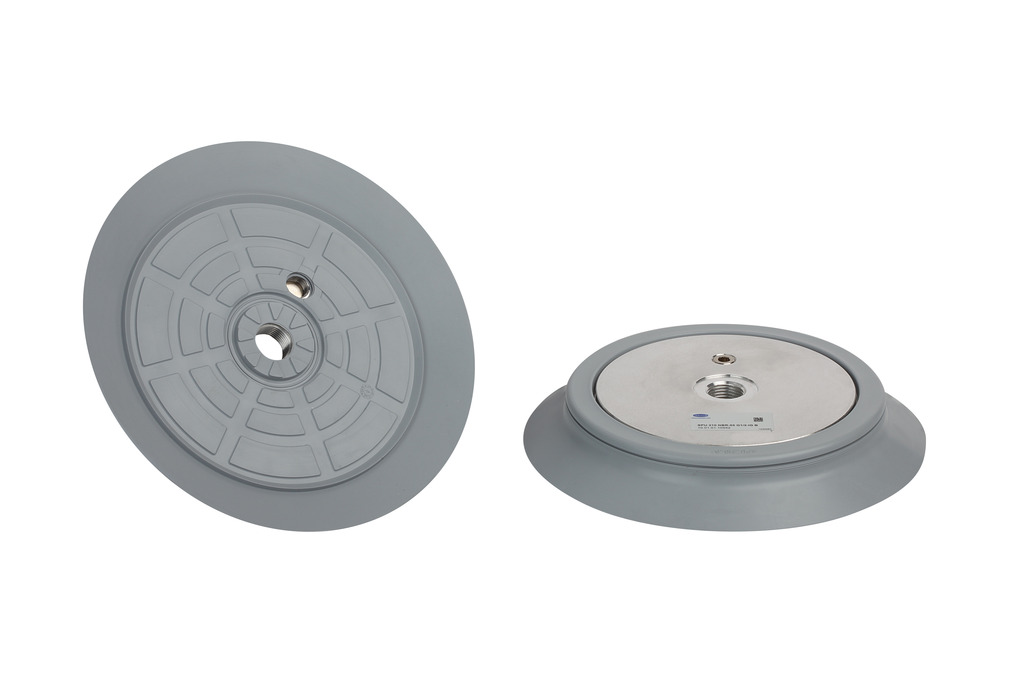

SPU 210 NBR-55 G1/2-IG B
Part no.: 10.01.01.10552
Suction plate (round), universal, for smooth and slightly rough surfaces
| Size | 210 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Connection | G1/2"-F |
Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 34 mm |
| d2 | 159 mm |
| d3 | 138 mm |
| Dmax(S) | 220 mm |
| Ds | 210 mm |
| G1 | G1/2"-F |
| G2 | G1/4"-F |
| H | 29 mm |
| H1 | 29.5 mm |
| L2 | 36.5 mm |
| LG1 | 13.5 mm |
| LG2 | 15 mm |
| Z (Stroke) | 9.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1,870 N |
| Suction force d2 | 1,190 N |
| Volume | 321 cm³ |
| Workpiece radius min. (convex) | 750 mm |
| Hose inner diameter (recom.) d | 12 mm |
| Size | 210 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 860 g |
| Number of folds | 0 |
| Product family | SPU |
Documentation
Documentation
Spare parts
Accessories
SU 21010.01.01.12439Cover for suction cup
| Size | 210 |
| Clamping range [mm] | 210.0 ... 220.0 mm |
| Temperature resistance | 80 (°C) |
