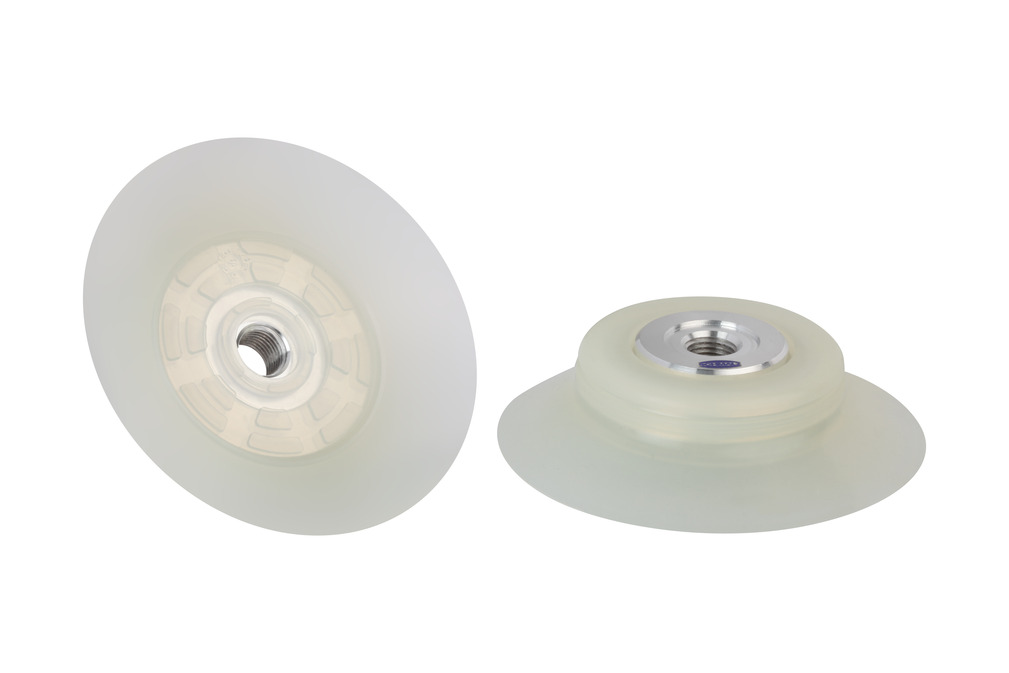

DR-SPU 100 SI-6010.01.01.01105Sealing ring for suction plate SPU
| Size | 100 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 60 (Shore A) |
Part no.: 10.01.01.01108
Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 22 mm |
| d2 | 60 mm |
| Dmax(S) | 108 mm |
| Ds | 100 mm |
| G1 | G1/4"-F |
| H | 25 mm |
| H1 | 26 mm |
| LG1 | 13 mm |
| Z (Stroke) | 7 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 425 N |
| Suction force d2 | 185 N |
| Volume | 44.3 cm³ |
| Workpiece radius min. (convex) | 130 mm |
| Hose inner diameter (recom.) d | 9 mm |
| Size | 100 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 100 g |
| Number of folds | 0 |
| Product family | SPU |
Documentation
Documentation
Spare parts
Accessories
SU 10010.01.01.12840Cover for suction cup
| Size | 100 |
| Clamping range [mm] | 100.0 ... 115.0 mm |
| Temperature resistance | 80 (°C) |
