SPL-HT 60 ST G1/4-IG

Name: SPL-HT 60 ST G1/4-IG
SKU: 10.01.23.00006

Part no.: 10.01.23.00006

Suction plate for high-temperature applications

Industries: Automotive | Glass | Metal

Size	60
Suction cup material	Silicate fabric ST
Connection	G1/4-IG
Working temperature max.	600 (°C)

Product information

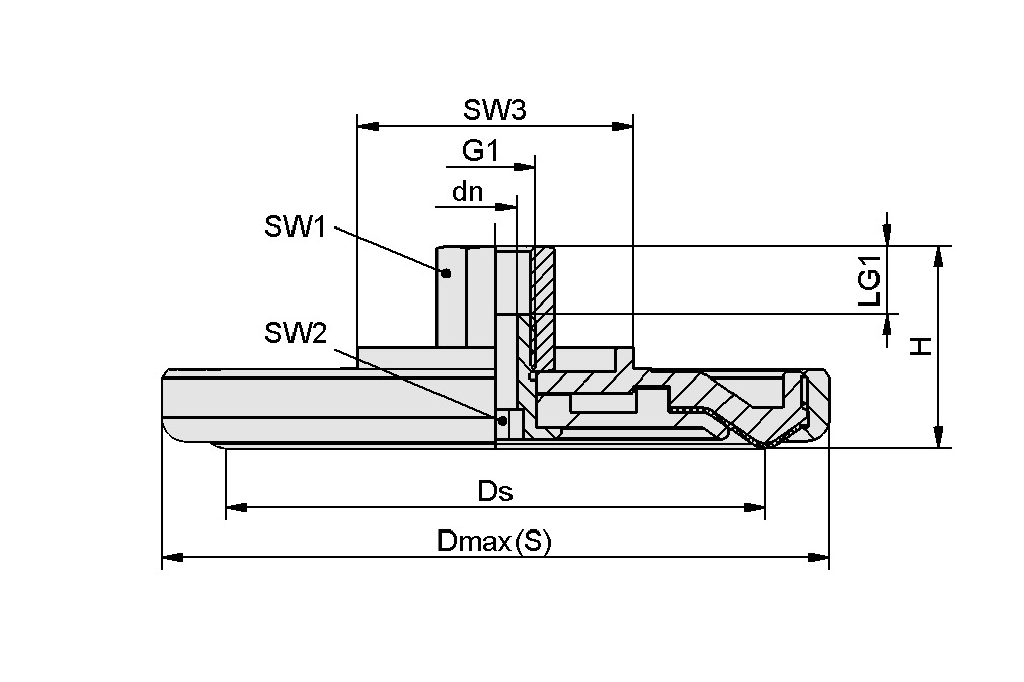

Design Data

Attribute	Value
dn	7 mm
Dmax(S)	79.5 mm
Ds	58 mm
G1	G1/4"-F
H	39 mm
LG1	12 mm
SW1	17 mm
SW2	8 mm
SW3	27 mm

Technical Data

Attribute	Value
Suction force (-600mbar)	130 N
Volume	12 cm³
Workpiece radius min. (convex)	440 mm
Required suction capacity for pu = -0.6 bar	32 l/min
Hose inner diameter (recom.) d	6 mm
Size	60
Working temperature max.	600 °C
Suction cup material	Silicate fabric ST
Weight	375 g
Product family	SPL-HT

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
