Product information

SA-NIP N002 M3-AG DN70

Part no.: 10.01.01.00314

Suction cup connection nipple

Thread G1	M3-M
Length L1	6.5 (mm)
Fitting length	2 (mm)
Nominal size	0.70 mm
Material	Aluminum

Product information

Design Data

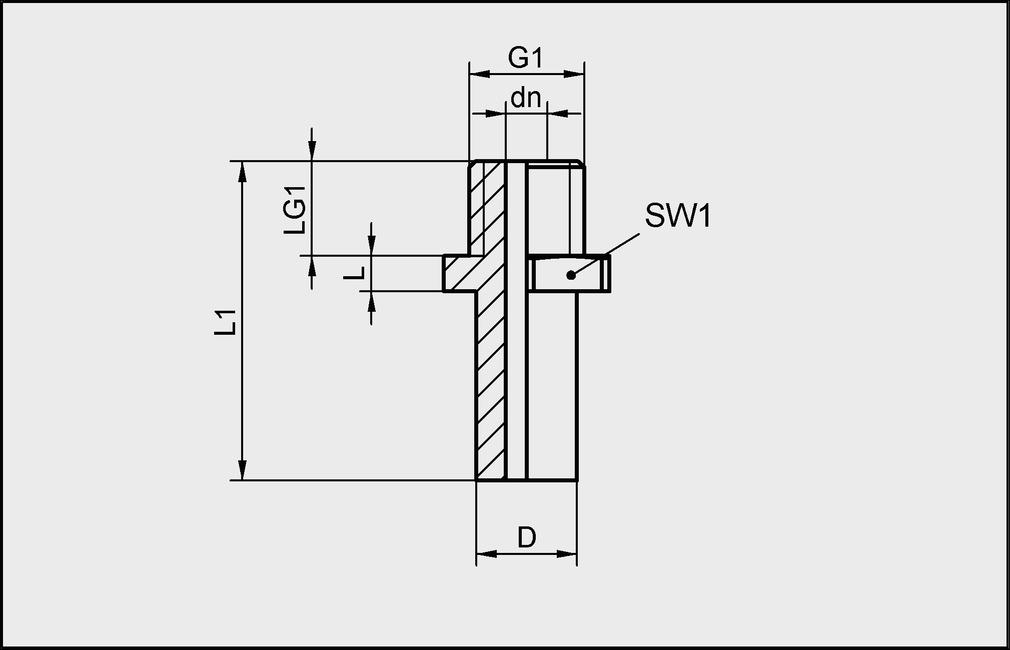

Design image

Attribute	Value
D	1.5 mm
dn	0.7 mm
G1	M3-M
L	2 mm
L1	6.5 mm
L2	1.5 mm
LG1	3 mm
SW1	5 mm

Technical Data

Attribute	Value
Nipple family	N 002
Material	Aluminum
Weight	1 g

Documentation

Accessories

PFG 1.5 NBR-CO-55 N002

PHASE-OUT ITEM

PFG 1.5 NBR-CO-55 N002 10.01.01.10336 Flat suction cup (round) for smooth or slightly rough surfaces

Size	1.5
Suction cup material	Nitrile rubber NBR-conductive
Material hardness [Shore A]	55 (Shore A)

PFG 1.5 NBR-55 N002

PHASE-OUT ITEM

PFG 1.5 NBR-55 N002 10.01.01.00002 Flat suction cup (round) for smooth or slightly rough surfaces

Size	1.5
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	55 (Shore A)

PFG 1.5 SI-55 N002

PHASE-OUT ITEM

PFG 1.5 SI-55 N002 10.01.01.00022 Flat suction cup (round) for smooth or slightly rough surfaces

Size	1.5
Suction cup material	Silicone SI
Material hardness [Shore A]	55 (Shore A)
Material characteristics	FDA-compatible
