Part no.: 10.01.01.14106

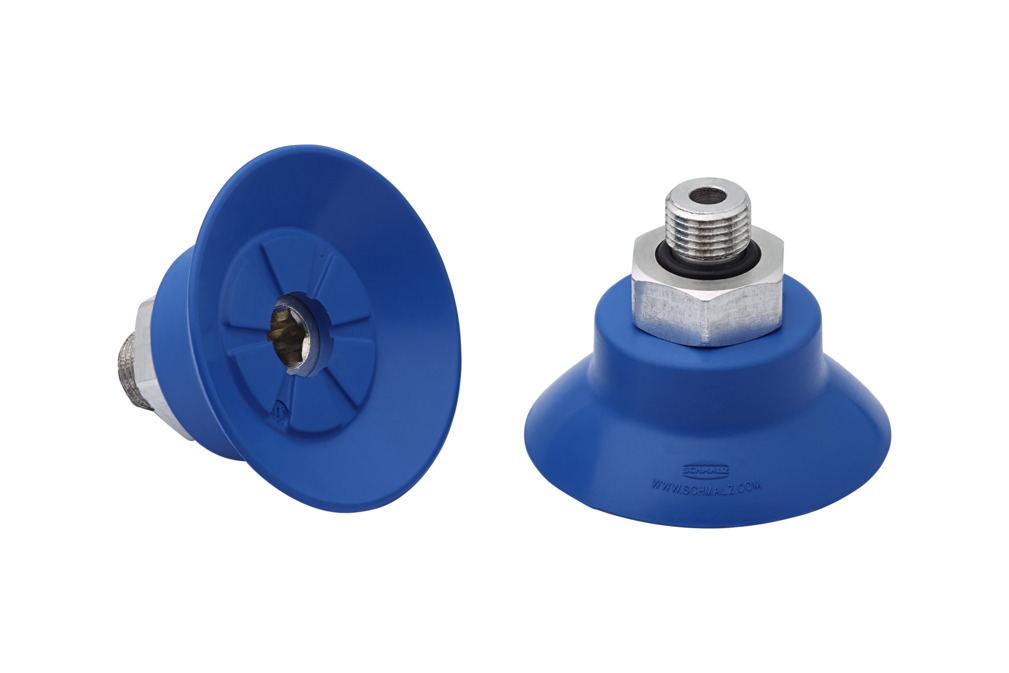

Flat suction cup (round) for process safe handling of smooth or slightly rough surfaces
| Size | 35 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SUF |

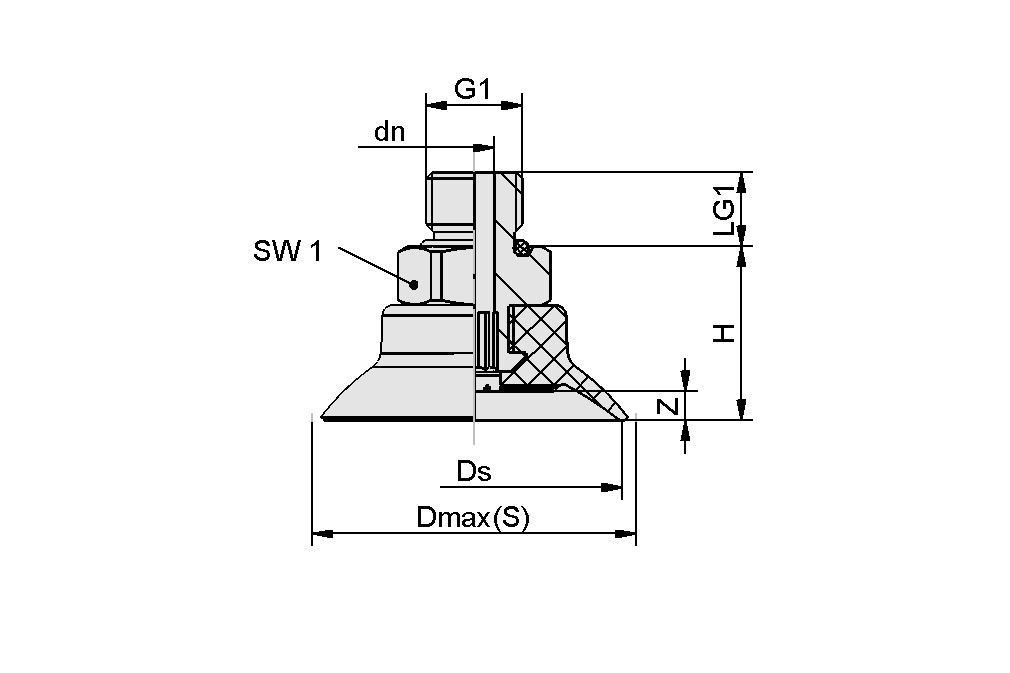

| Attribute | Value |
|---|---|
| Dmax(S) | 39.2 mm |
| Ds | 35 mm |
| dn | 4.1 mm |
| G1 | G1/8"-M |
| H | 22.1 mm |
| LG1 | 7.5 mm |
| SW1 | 17 mm |
| Z (Stroke) | 3.5 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 46 N |
| Pull-off force | 46 N |
| Volume | 2.4 cm³ |
| Workpiece radius min. (convex) | 40 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 35 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 14.1 g |
| Product family | SUF |
| Number of folds | 0 |
| Size | 35 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Connection type | 050 |
| Fitting length | 7.2 (mm) |
| Nominal diameter dn | 4.1 (mm) |
