- PHASE-OUT ITEM
SA-NIP N028 M5-IG DN20010.01.01.00813Suction cup connection nipple
| Thread G1 | M5-F |
| Fitting length | 10 (mm) |
| Material | Aluminum |

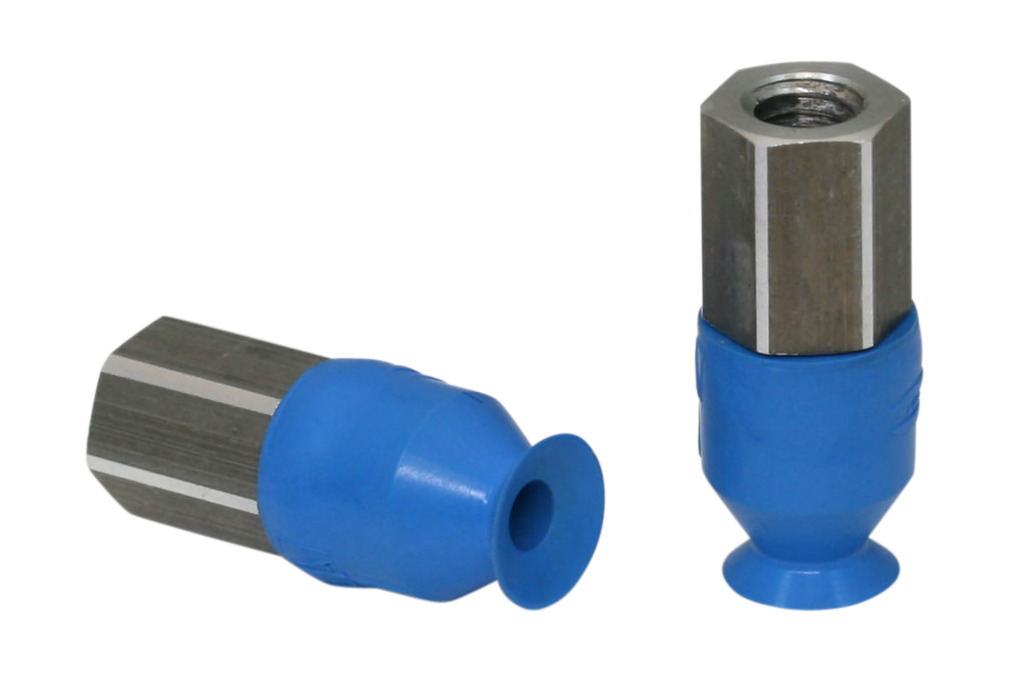

SGAN 7 PU-60 M5-IG
Part no.: 10.01.01.00799
Flat suction cup (round) for particularly sensitive workpieces
| Size | 7 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 60 (Shore A) |
| Connection | M5-F |
Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 2 mm |
| Dmax(S) | 7.5 mm |
| Ds | 7 mm |
| G1 | M5-F |
| H | 22 mm |
| LG1 | 5.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 1 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1.6 N |
| Volume | 0.19 cm³ |
| Workpiece radius min. (convex) | 7.5 mm |
| Hose inner diameter (recom.) d | 2 mm |
| Size | 7 |
| Nipple family | N 028 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 1.7 g |
| Number of folds | 0 |
| Product family | SGAN |
Documentation
Documentation
Spare parts
SGA 7 PU-55 N02810.01.01.00570Flat suction cup (round)
| Size | 7 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 55 (Shore A) |
