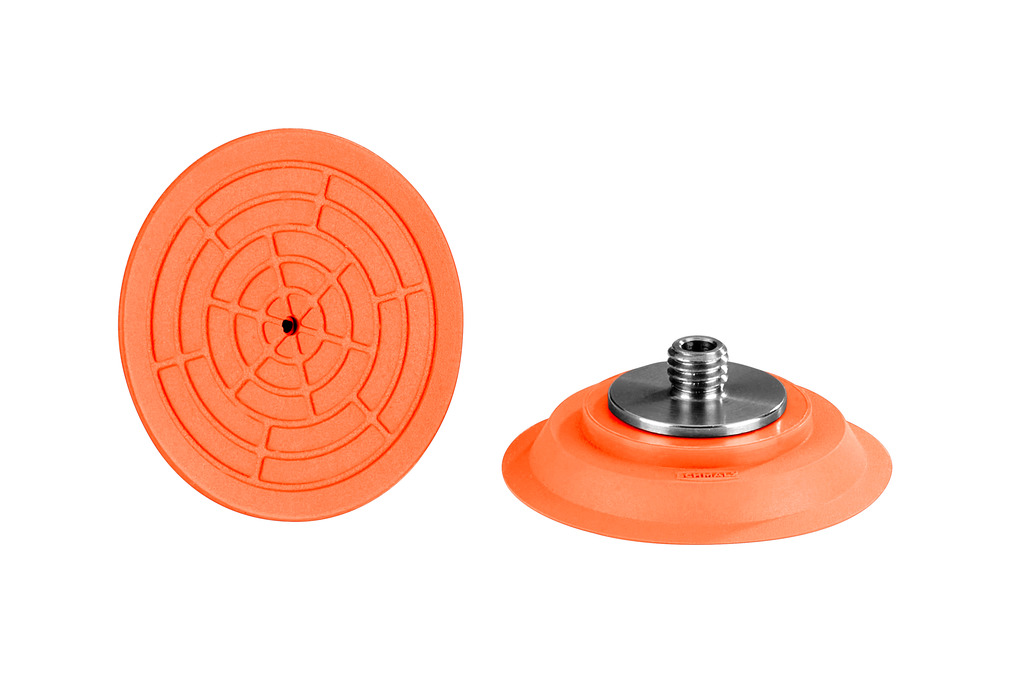

Part no.: 10.01.01.16271
Flat suction cup for gentle handling of displays and thin workpieces
| Size | 30 |
| Suction cup material | Hochtemp. Material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Austenitic stainless steel |
| Product family | PFYN |

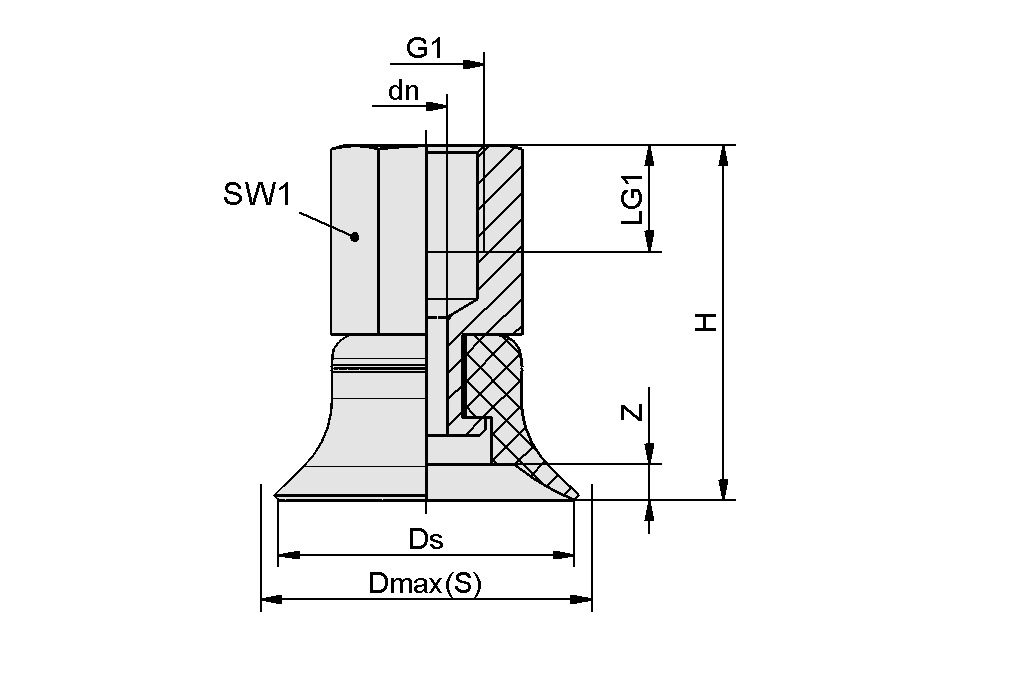

| Attribute | Value |
|---|---|
| dn | 1.5 mm |
| Dmax(S) | 30.5 mm |
| Ds | 30 mm |
| G1 | M5-M |
| H | 10.5 mm |
| LG1 | 4 mm |
| SW1 | 2.5 mm |
| Z (Stroke) | 0.3 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 31 N |
| Volume | 0.24 cm³ |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 30 |
| Suction cup material | Hochtemp. Material HT1-ESD |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 5.5 g |
| Product family | PFYN |
| Number of folds | 0 |
| Size | 30 |
| Suction cup material | Hochtemp. Material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
