SA-NIP N010 G1/2-IG10.01.01.00796Suction cup connection nipple
pre-assembly
| Thread G1 | G1/2"-F |
| Material | Aluminum |
PFYN 200 SI-55 G1/2-IG
Part no.: 10.01.01.00342
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 200 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Product family | PFYN |

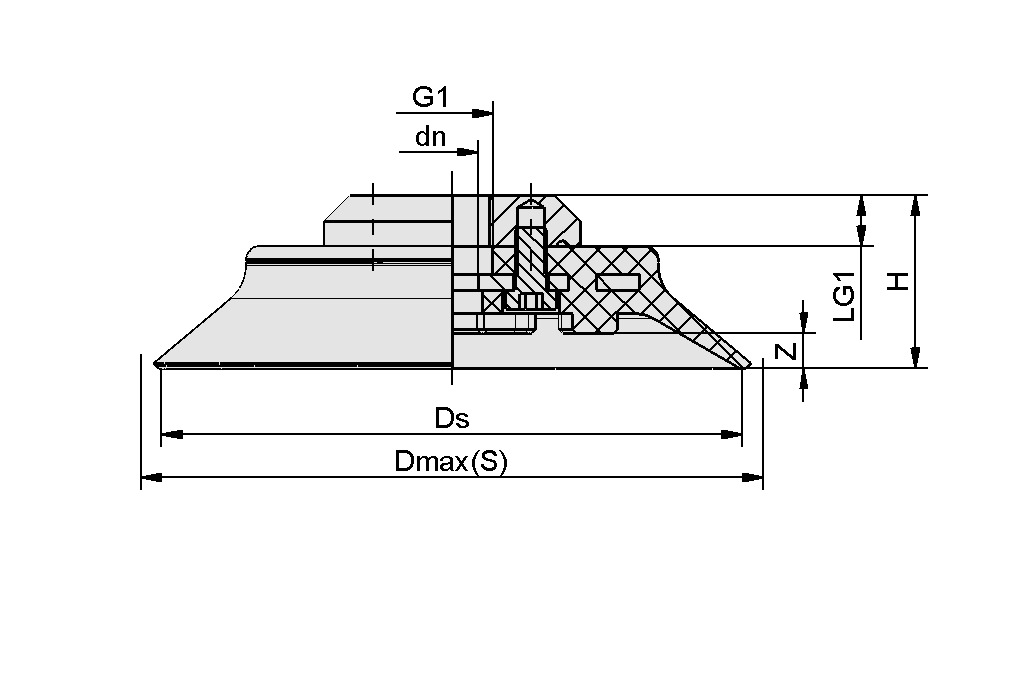

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 13.5 mm |
| Dmax(S) | 222 mm |
| Ds | 193 mm |
| G1 | G1/2"-F |
| H | 50.5 mm |
| LG1 | 13 mm |
| Z (Stroke) | 13 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1,498 N |
| Volume | 427 cm³ |
| Workpiece radius min. (convex) | 400 mm |
| Hose inner diameter (recom.) d | 9 mm |
| Size | 200 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 784.6 g |
| Product family | PFYN |
| Number of folds | 0 |
Documentation
Documentation
Spare parts
PFG 200 SI-55 N01010.01.01.00336Flat suction cup (round) for
smooth or slightly rough surfaces
| Size | 200 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
Accessories
SU 21010.01.01.12439Cover for suction cup
| Size | 210 |
| Clamping range [mm] | 210.0 ... 220.0 mm |
| Temperature resistance | 80 (°C) |
