Part no.: 10.01.01.00255
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 10 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Product family | PFYN |

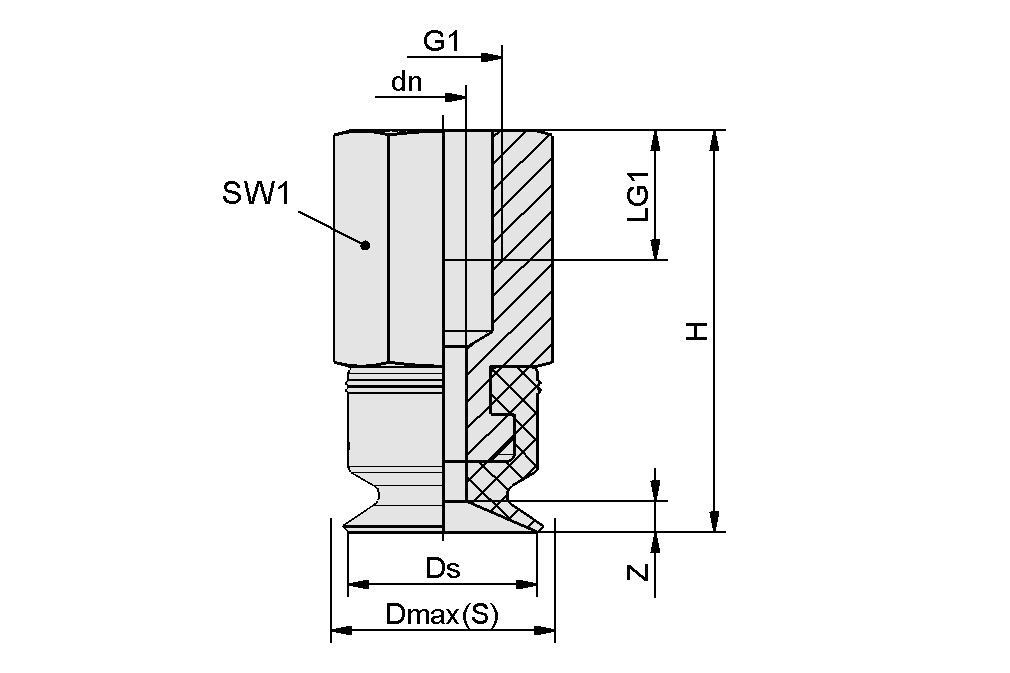

| Attribute | Value |
|---|---|
| dn | 2 mm |
| Dmax(S) | 11.5 mm |
| Ds | 10 mm |
| G1 | G1/8"-F |
| H | 23.5 mm |
| LG1 | 9 mm |
| SW1 | 14 mm |
| Z (Stroke) | 1.4 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 4 N |
| Volume | 0.07 cm³ |
| Workpiece radius min. (convex) | 12.5 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 10 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 5.3 g |
| Product family | PFYN |
| Number of folds | 0 |
| Thread G1 | G1/8"-F |
| Length L1 | 20 (mm) |
| Fitting length | 16 (mm) |
| Nominal size | 2.00 mm |
| Material | Aluminum |
| Size | 10 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
