PFG 8 HT1-ESD-60 N004
Part no.: 10.01.01.16203
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 8 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Material property | non-marking |

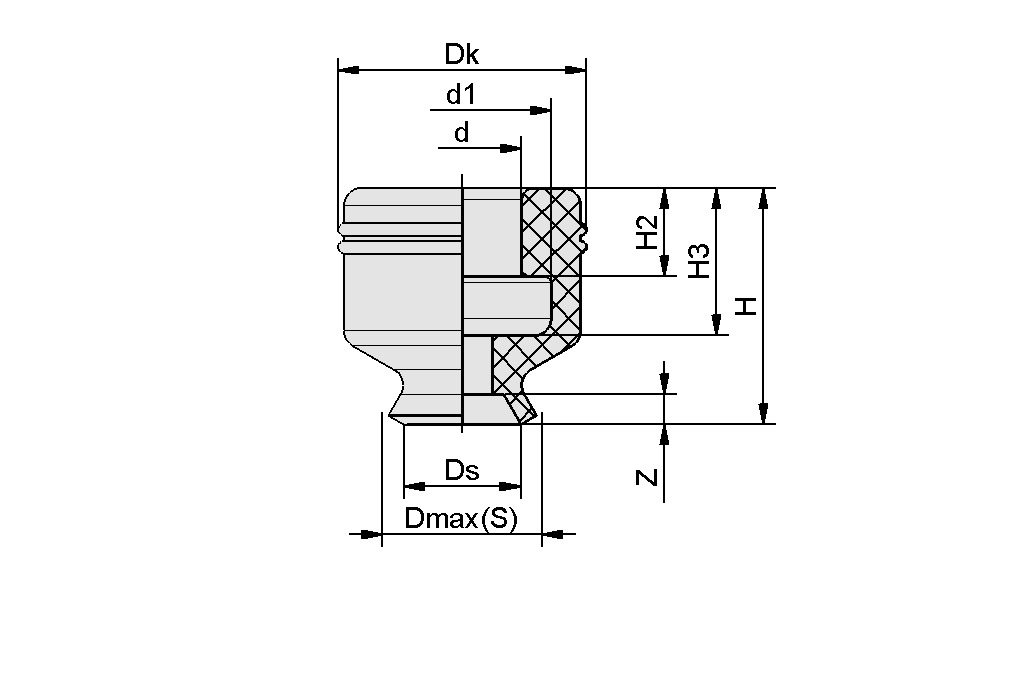

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 4 mm |
| d1 | 6 mm |
| Dk | 8.2 mm |
| Dmax(S) | 9 mm |
| Ds | 8 mm |
| H | 7 mm |
| H2 | 2 mm |
| H3 | 4 mm |
| Z (Stroke) | 1.3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 2.3 N |
| Volume | 0.16 cm³ |
| Workpiece radius min. (convex) | 10 mm |
| Size | 8 |
| Nipple family | N 004 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 0.2 g |
| Product family | PFG |
