SGON 7x3.5 SI-HD-65 M3-AG

Part no.: 10.01.05.01046

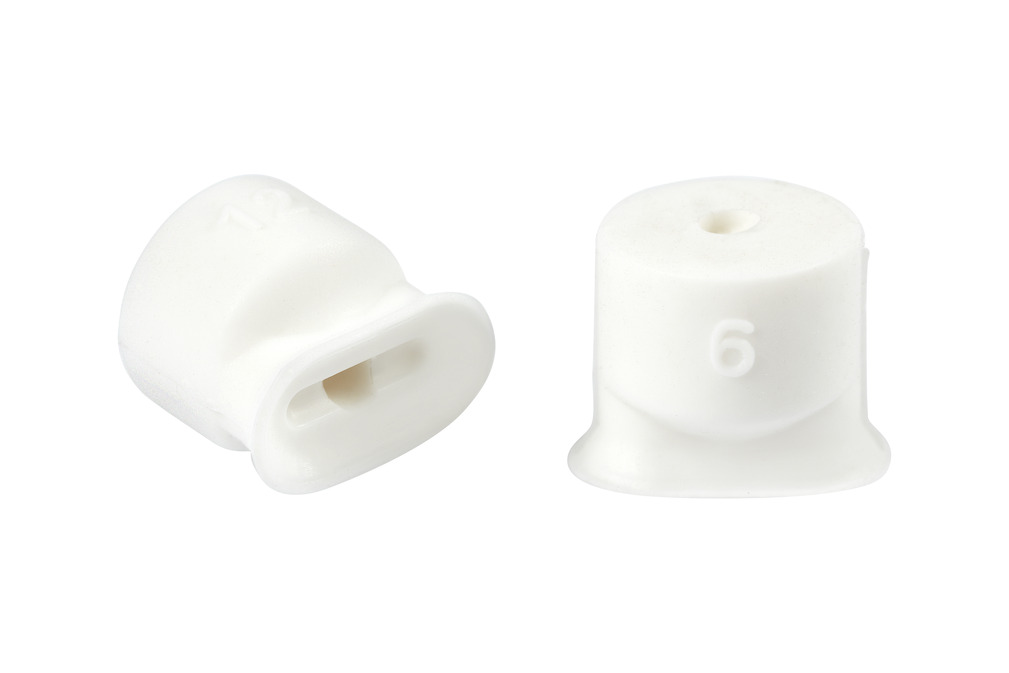

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)	7x3.5
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)
Nipple material	Aluminum
Connection	M3-M

Product information

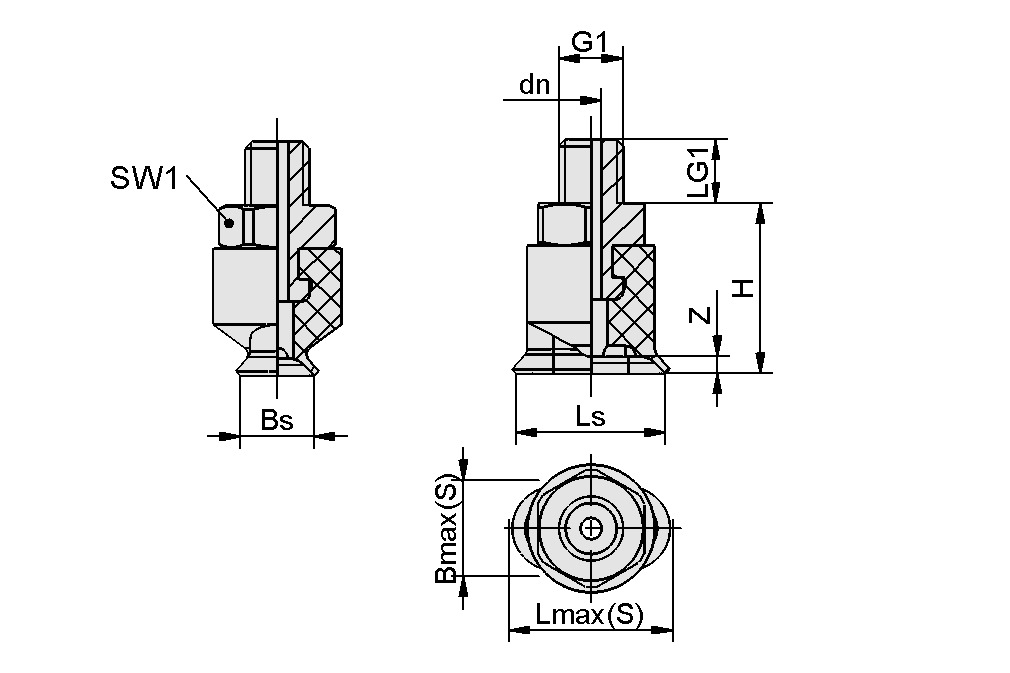

Design Data

Attribute	Value
Bmax(S)	4.5 mm
Bs	3.5 mm
dn	1 mm
G1	M3-M
H	8 mm
LG1	3 mm
Lmax.(S)	8 mm
Ls	7 mm
SW1	5 mm
Z (Stroke)	0.8 mm

Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3.

Technical Data

Attribute	Value
Dimension (LxW)	7x3.5
Suction force (-600mbar)	1 N
Volume	0.03 cm³
Workpiece radius min. (convex)	3 mm
Hose inner diameter (recom.) d	2 mm
Number of folds	0
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 Shore A
Weight	2 g
Product family	SGON

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
