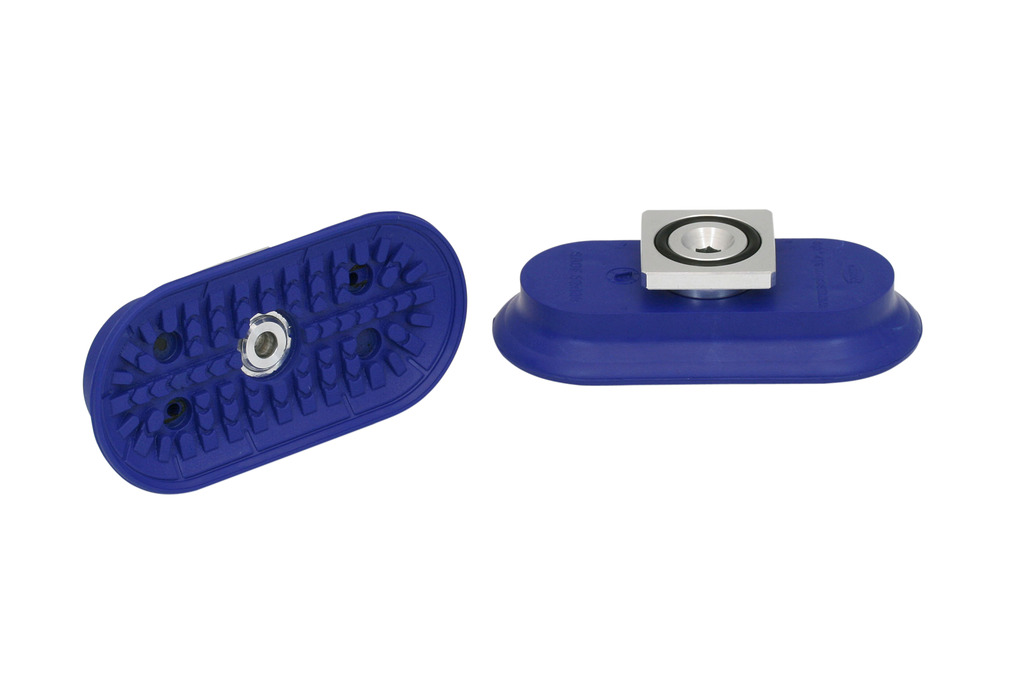

SAOF 100x50 NBR-60 RA

Part no.: 10.01.05.00302

Flat suction cup (oval) for very dynamic handling of smooth and oily workpieces

Dimension (LxW)	100x50
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 (Shore A)
Nipple material	Aluminum
Connection	RA

Product information

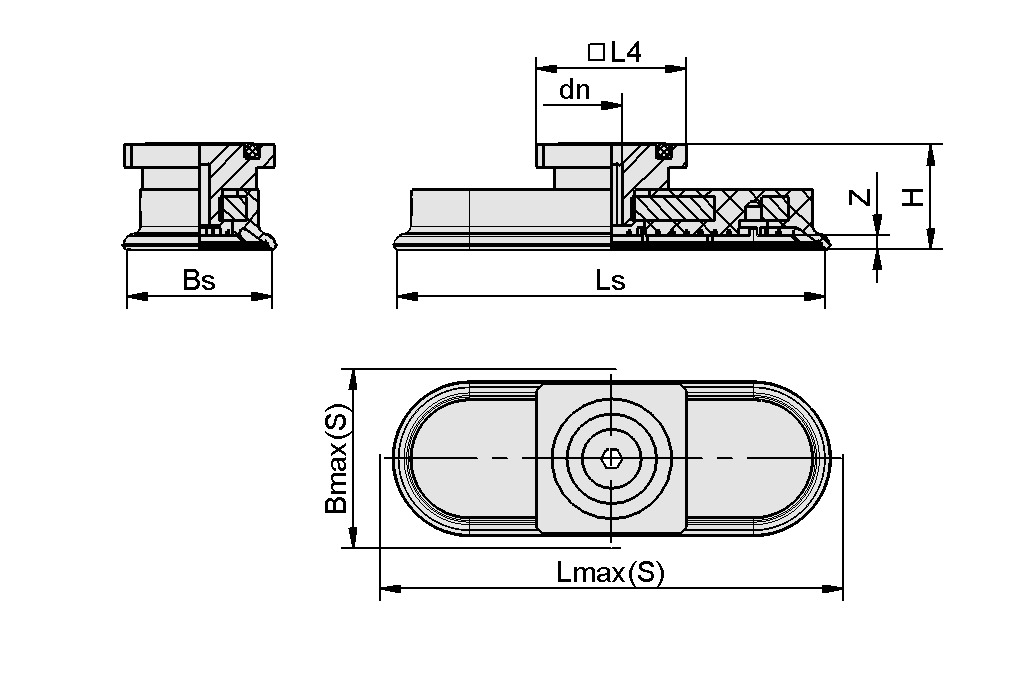

Design Data

Attribute	Value
Bmax(S)	54 mm
Bs	48.1 mm
dn	6 mm
H	25 mm
L4	32 mm
Lmax.(S)	106 mm
Ls	101.1 mm
Z (Stroke)	5 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	217 N
Lateral force	181 N
Lateral force oily surface	121 N
Volume	21.8 cm³
Workpiece radius min. (convex)	75 mm
Hose inner diameter (recom.) d	6 mm
Number of folds	0
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 Shore A
Weight	72 g
Product family	SAOF
Dimension (LxW)	100x50

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Documentation

Ordering information

SAOF 100x50 NBR-60 RA
