FG 7 NBR-ESD-55 N062

Part no.: 10.01.06.04139

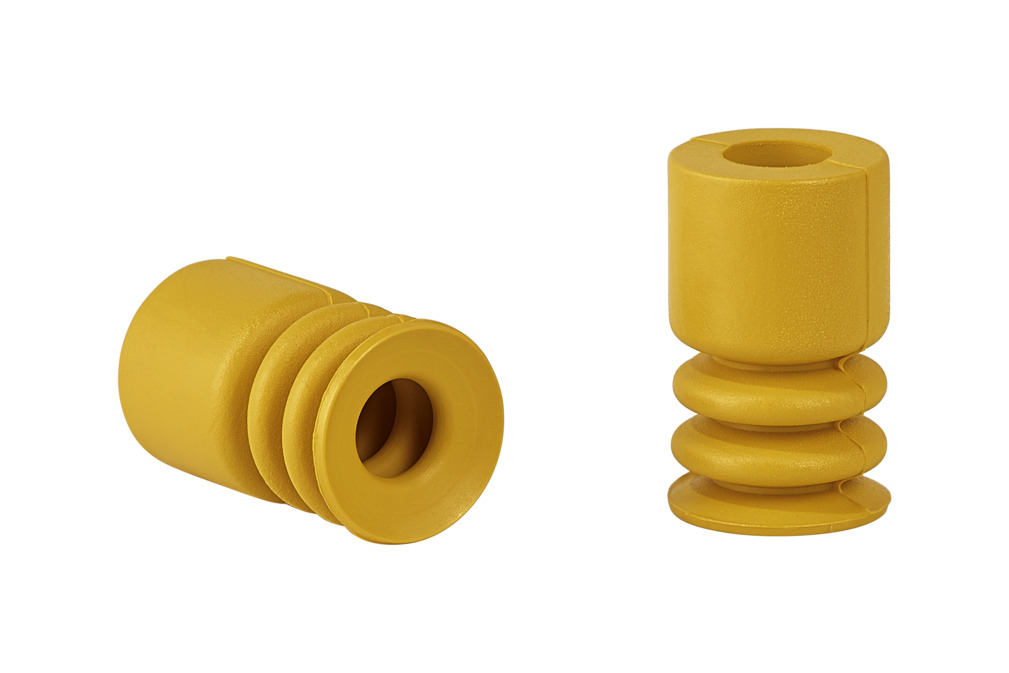

Bellows suction cup (round) for very uneven workpieces

Size	7
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)
Number of folds	2.5

Product information

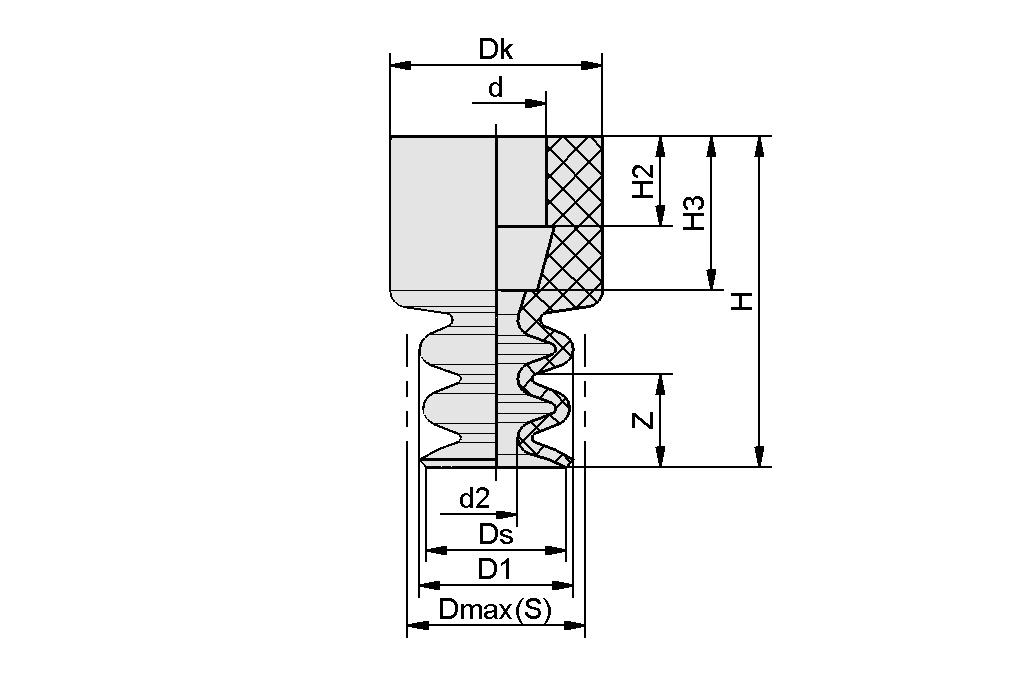

Design Data

Attribute	Value
d	4.5 mm
d2	1.8 mm
D1	6.5 mm
Dk	9 mm
Dmax(S)	7 mm
Ds	5.9 mm
H	14 mm
H2	3.8 mm
H3	6.5 mm
Z (Stroke)	3 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	0.15 N
Pull-off force	0.9 N
Volume	0.16 cm³
Workpiece radius min. (convex)	7.5 mm
Size	7
Nipple family	N062
Number of folds	2.5
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 Shore A
Weight	0.5 g
Product family	FG

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
