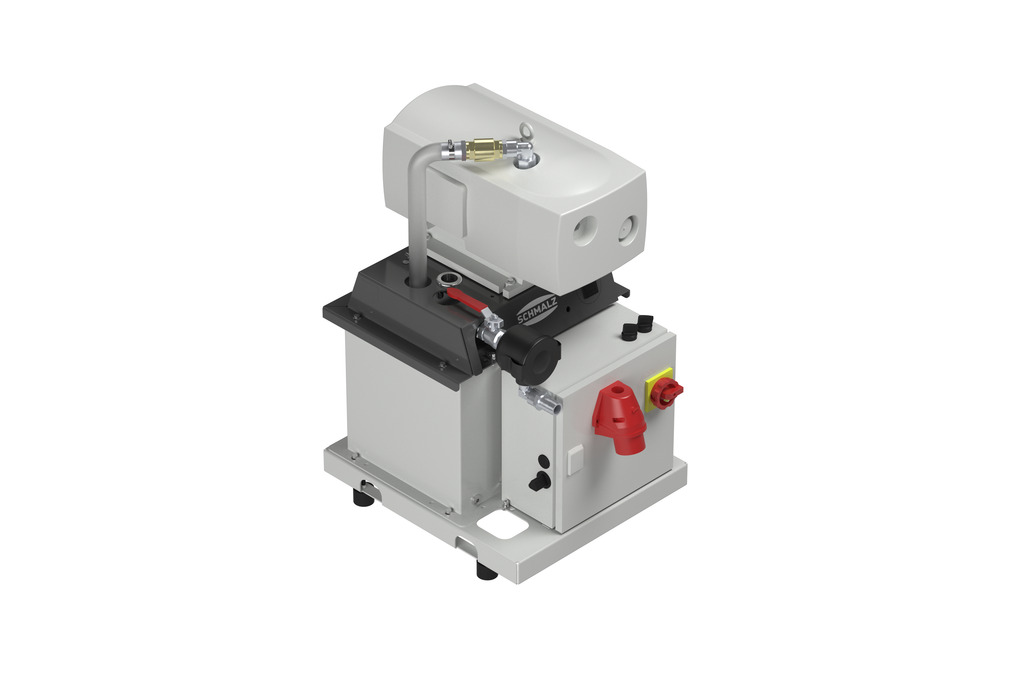

VH-TR Plus 25 30

Part no.: 10.01.55.00009

Vacuum unit with vacuum pump and accumulator

Shape	Plus
Design vacuum generator	Dry-running pump EVE-TR
Suction rate (max.)	25 (m³/h)
Reservoir volume	30 (l)
Width B	457 (mm)
Height H	782 (mm)
Max. vacuum	-850 (mbar)
with	Filter
Functionality of the ejector	electronic air-saving function
Additional function ejector	Vacuum switch digital

Design Data

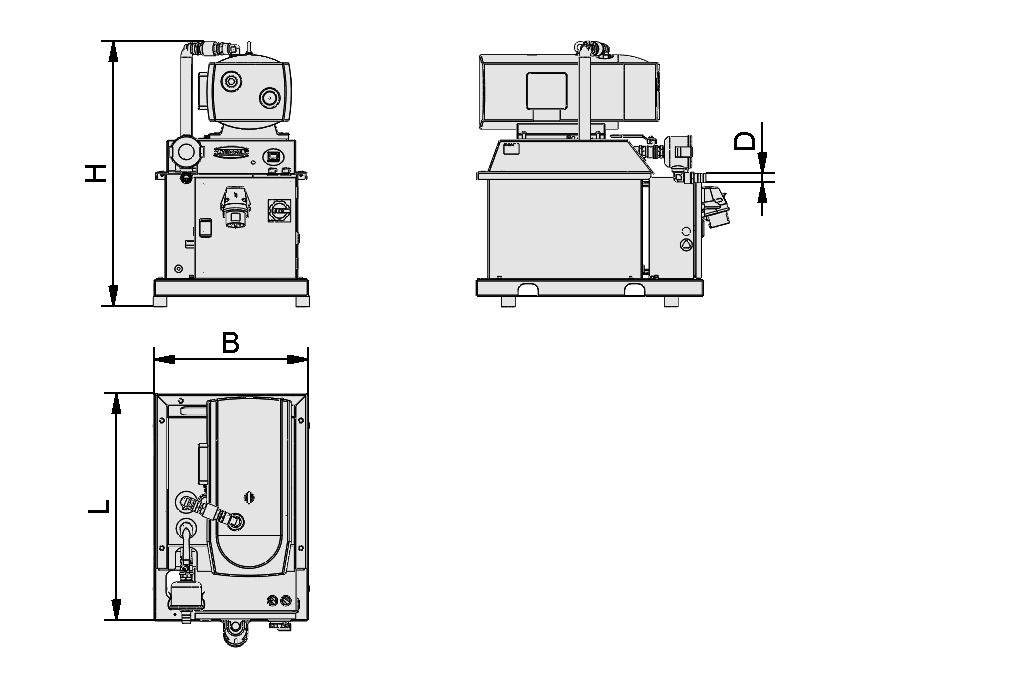

Design image

Attribute	Value
L	521 mm
B	457 mm
H	782 mm
D	25 mm
with	Filter

Technical Data

Attribute	Value
Suction rate (max.)	25 m³/h
Reservoir volume	30 l
Max. vacuum	-850 mbar
Functionality of the ejector	electronic air-saving function
Additional function ejector	Vacuum switch digital

Documentation

Spare parts

EVE-TR 25 AC3

EVE-TR 25 AC3 10.03.01.00141 Oil-free pump with constant suction rate, robust, requires little maintenance

Current type	Three phase A.C.
Sound pressure level at 50 Hz	62 (dB(A))
Voltage at 50 Hz	S102
Voltage 60 Hz	S028
Voltage at 60 Hz	190 - 290 V / 330 - 500 V AC3
Suction rate (50 Hz)	25 (m³/h)
Suction rate (60 Hz)	30 (m³/h)
Vacuum (50 Hz)	-850 (mbar)
Rated power at 50 Hz	0.75 (kW)
Rated power at 60 Hz	0.9 (kW)
Weight	26 (kg)

SET VS EIN V/VP10 W-D

SET VS EIN V/VP10 W-D 10.06.02.00863 Assembly set

Utilization design	Vacuum switch
Mounting	Installation
Shape	Cube, digital display

RSV 20 G3/4-IG MS

RSV 20 G3/4-IG MS 10.05.05.00004 No-return valve for maintaining the system vacuum in the case of a power failure

Nominal size	20 (mm)
Thread G1	G3/4"-F
Nominal flow rate	45 (m³/h)
Operating temperature	-20 ... 100 °C
Material	Brass

STF G3/4-IG N

STF G3/4-IG N 10.07.01.00007 Dust filter

Connection	G3/4"-F
Shape	Steel housing
Nominal flow rate	42 (m³/h)
Filter pore size	3 (µm)

FILT-EINS 3 65x70 PAP STF-3/4-IG

FILT-EINS 3 65x70 PAP STF-3/4-IG 10.07.01.00017 Filter insert (round)

Filter pore size	3 (µm)
Outside diameter D	65 (mm)
Length L	69.5 (mm)
Filter material	Paper
Utilization design	Dust filter STF
Size	3/4-IG

VST EVE-TR-25

VST EVE-TR-25 10.03.01.00134 Set of parts subject to wear pump

Utilization design	Pump EVE-TR
Size	25
contains	Brush slide
and	Filter

Accessories

VSL 33-25 PVC-DS KL-TR

VSL 33-25 PVC-DS KL-TR 10.07.09.00041 Hose for vacuum and compressed-air systems

Outside diameter D	33 (mm)
Internal diameter d	25 (mm)
Length max.	50 (m)
Material hose	PVC with wire spiral
Bending radius min.	95 (mm)
Pressure range (operating pressure) [bar]	-0.85 ... 4.00 bar
Operating temperature	-15 ... 65 °C
Color	Clear-transparent

NEW
EFFICIENT

ZUB VH 4CAS 10.01.27.02333 Accessories

Utilization design	Vakuum Aggregat VH
Outside diameter D	60 (mm)
Height H	100 (mm)
Weight	3.08 (kg)
