Part no.: 10.01.55.00033

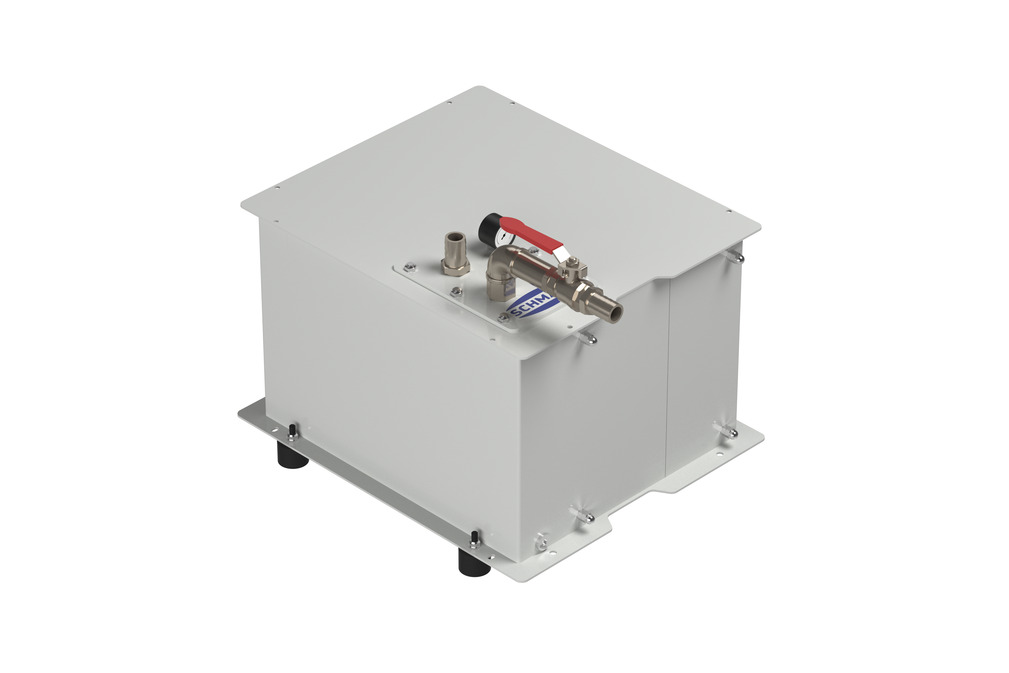

Vacuum storage tank with accessories
| Reservoir volume | 50 (l) |
| with | Filter |
| Width B | 443 (mm) |
| Height H | 346 (mm) |

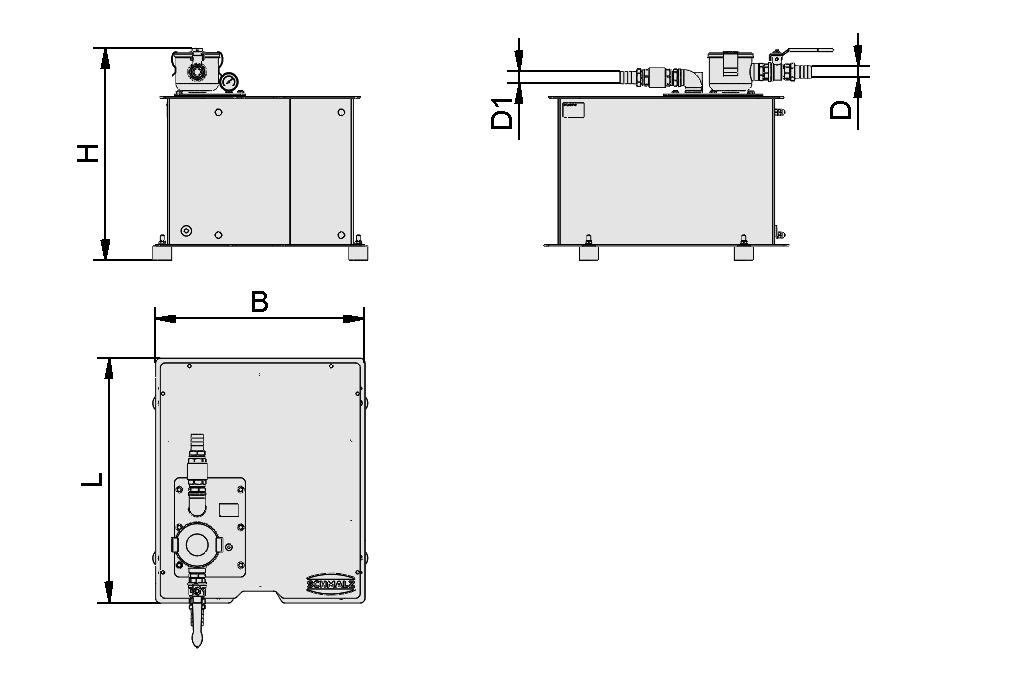

| Attribute | Value |
|---|---|
| B | 443 mm |
| D1 | 25 mm |
| D | 25 mm |
| H | 346 mm |
| with | Filter |
| Attribute | Value |
|---|---|
| Reservoir volume | 50 l |
| Pressure range (operating pressure) [bar] | -1.00 ... 0.50 bar |
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at bottom |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |
| Nominal size | 20 (mm) |
| Thread G1 | G3/4"-F |
| Nominal flow rate | 45 (m³/h) |
| Operating temperature | -20 ... 100 °C |
| Material | Brass |
| Connection | G1-1/4"-F |
| Shape | Steel housing |
| Nominal flow rate | 96 (m³/h) |
| Filter pore size | 3 (µm) |
| Filter pore size | 3 (µm) |
| Outside diameter D | 98 (mm) |
| Length L | 70 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 1-1/4-IGN |
| Outside diameter D | 41 (mm) |
| Internal diameter d | 32 (mm) |
| Length max. | 50 (m) |
| Material hose | PVC with wire spiral |
| Bending radius min. | 110 (mm) |
| Pressure range (operating pressure) [bar] | -0.85 ... 4.00 bar |
| Operating temperature | -15 ... 65 °C |
| Color | Clear-transparent |
| Utilization design | Vakuum Aggregat VH |
| Outside diameter D | 60 (mm) |
| Height H | 100 (mm) |
| Weight | 3.08 (kg) |
