Part no.: 10.01.55.00031

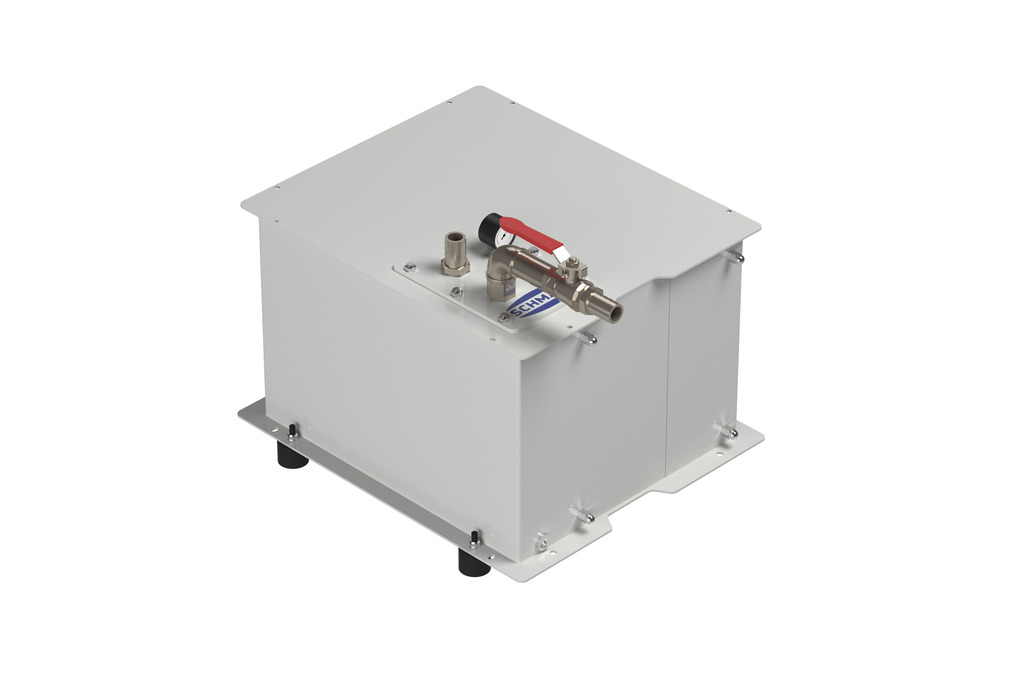

Vacuum storage tank with accessories
| Reservoir volume | 10 (l) |
| with | Filter |

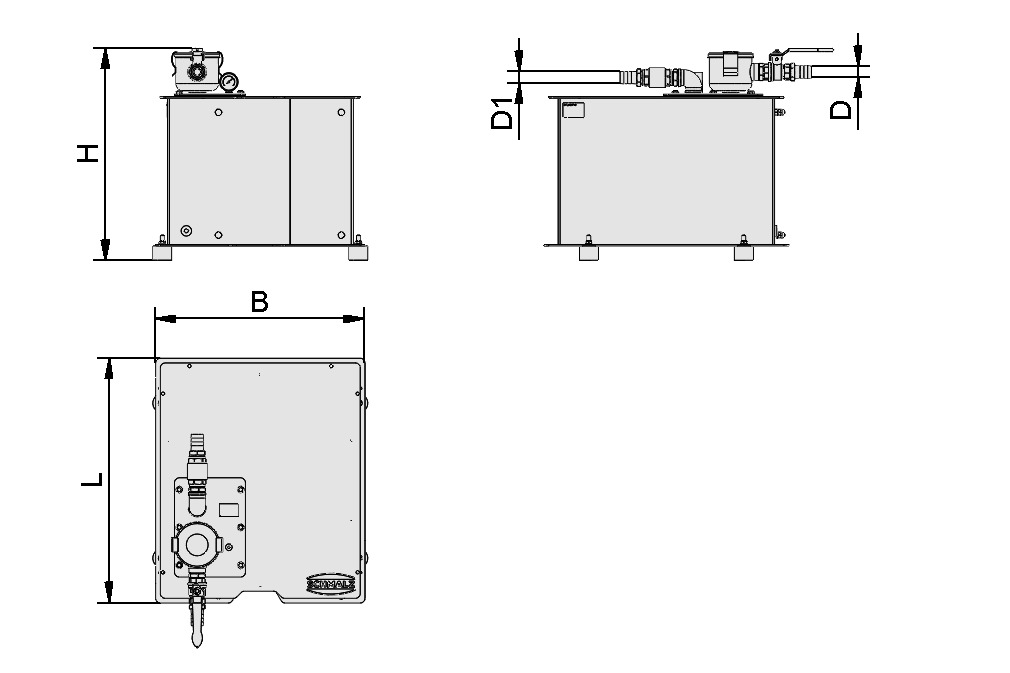

| Width B | 281 (mm) |
| Height H | 307 (mm) |
| Attribute | Value |
|---|---|
| B | 281 mm |
| D1 | 13 mm |
| D | 13 mm |
| H | 307 mm |
| with | Filter |
| Attribute | Value |
|---|---|
| Reservoir volume | 10 l |
| Pressure range (operating pressure) [bar] | -1.00 ... 0.50 bar |
| Outside diameter D | 63 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at rear |
| Product family | VAM |
| BAR/PSI scale |

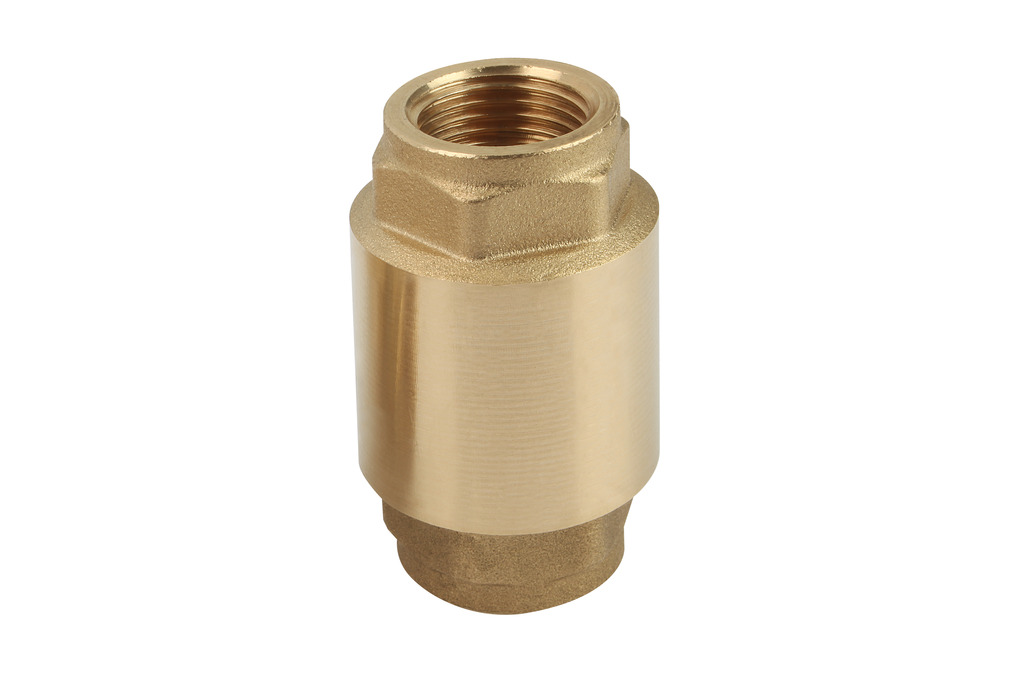

| Nominal size | 18 (mm) |
| Thread G1 | G1/2"-F |
| Nominal flow rate | 26 (m³/h) |
| Operating temperature | -20 ... 100 °C |
| Material | Brass |
| Connection | G3/4"-F |
| Shape | Steel housing |
| Nominal flow rate | 42 (m³/h) |
| Filter pore size | 3 (µm) |
| Filter pore size | 3 (µm) |
| Outside diameter D | 65 (mm) |
| Length L | 69.5 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 3/4-IG |
| Outside diameter D | 19.2 (mm) |
| Internal diameter d | 13 (mm) |
| Length max. | 50 (m) |
| Material hose | PVC with wire spiral |
| Bending radius min. | 85 (mm) |
| Pressure range (operating pressure) [bar] | -0.90 ... 5.00 bar |
| Operating temperature | -15 ... 65 °C |
| Color | Clear-transparent |
| Utilization design | Vakuum Aggregat VH |
| Outside diameter D | 60 (mm) |
| Height H | 100 (mm) |
| Weight | 3.08 (kg) |
