Schmalz

  • EFFICIENT

Handling Sets ECBPi

Set contains all components for the quick assembly of a gripper ready-to-connect

Integrated ventilation valve for fast, precise placement of the workpiece during handling

Process monitoring through connection via IO-Link or digital signals; condition monitoring to prevent errors

NFC interface allows readout and parameterization via smartphone

Energy efficient by adapting the power to the handling process by means of speed control

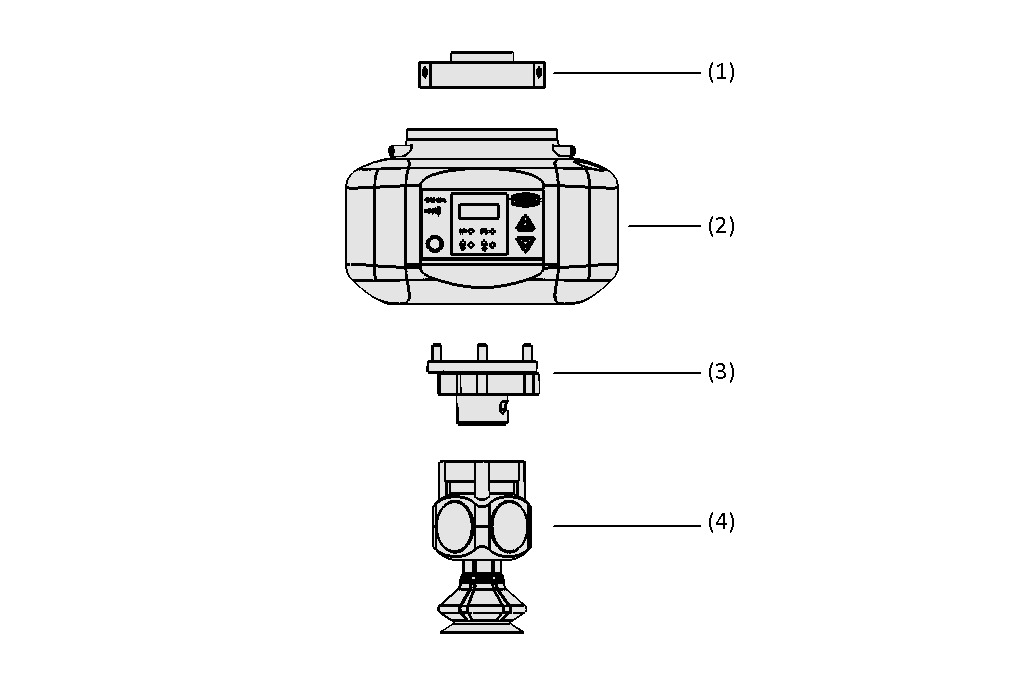

Design
  • Flange adapter plate (1) for mechanical connection to the lightweight robot or cobot
  • M12 8-pin plug connection as digital interface between the ECBPi (2) to the robot
  • NFC interface for convenient data transfer via smartphone
  • Flange for gripper connection (3)
  • End effector VEE (4) with a replaceable suction cup
Technical Data
  • Vacuum generator including flange, gripper and connection cable
  • Flexible replacement of the gripper possible
  • Suction rate up to 12 l/min and max. vacuum: 75 %
  • Suitable for operation with lightweight robots and robots
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
English
Software

The matching software for this product is available in this section.

SoftwareLanguage
English
