Part no.: 10.02.02.07457

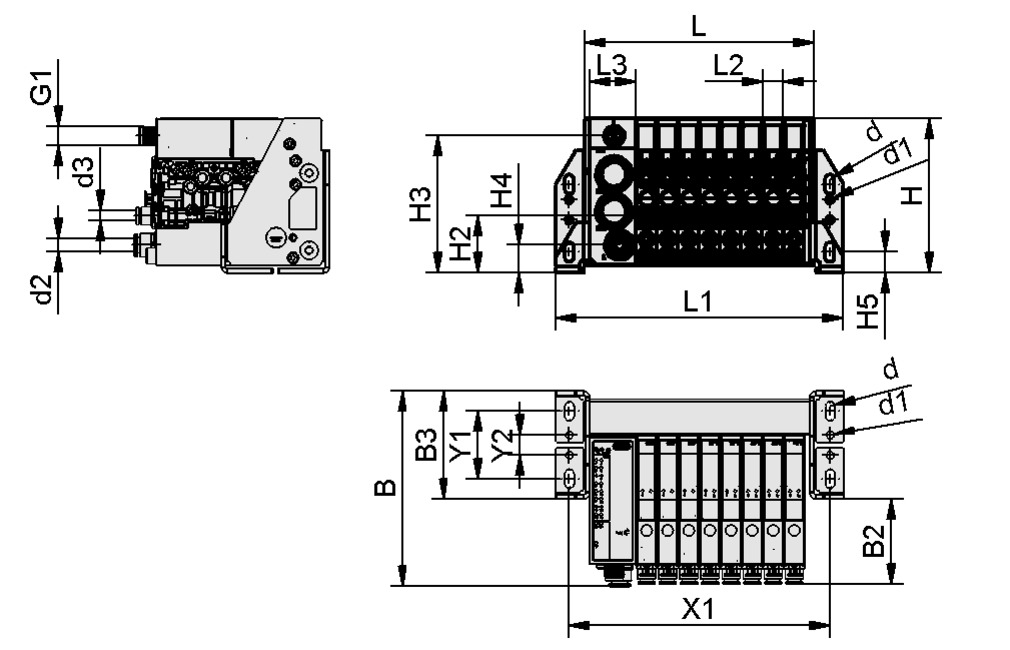

| Attribute | Value |
|---|---|
| B | 115.8 mm |
| B2 | 51.8 mm |
| B3 | 64 mm |
| d | 5.5 mm |
| d1 | 4.5 mm |
| d2 | 8 mm |
| d3 | 6 mm |
| G1 | M12x1-M |
| H | 91.5 mm |
| H2 | 34 mm |
| H3 | 81.2 mm |
| H4 | 16.5 mm |
| H5 | 12.5 mm |
| L | 136.5 mm |
| L1 | 171.5 mm |
| L2 | 12.5 mm |
| L3 | 27.5 mm |
| X1 | 155.5 mm |
| Y1 | 40 mm |
| Y2 | 12 mm |
| Attribute | Value |
|---|---|
| Number of ejectors | E8 |
| Communication | IO-Link |
| Ejector type 1 | SCPMt 10 6/4 NO E1T |
| Weight | 1.54 kg |
The matching software for this product is available in this section.

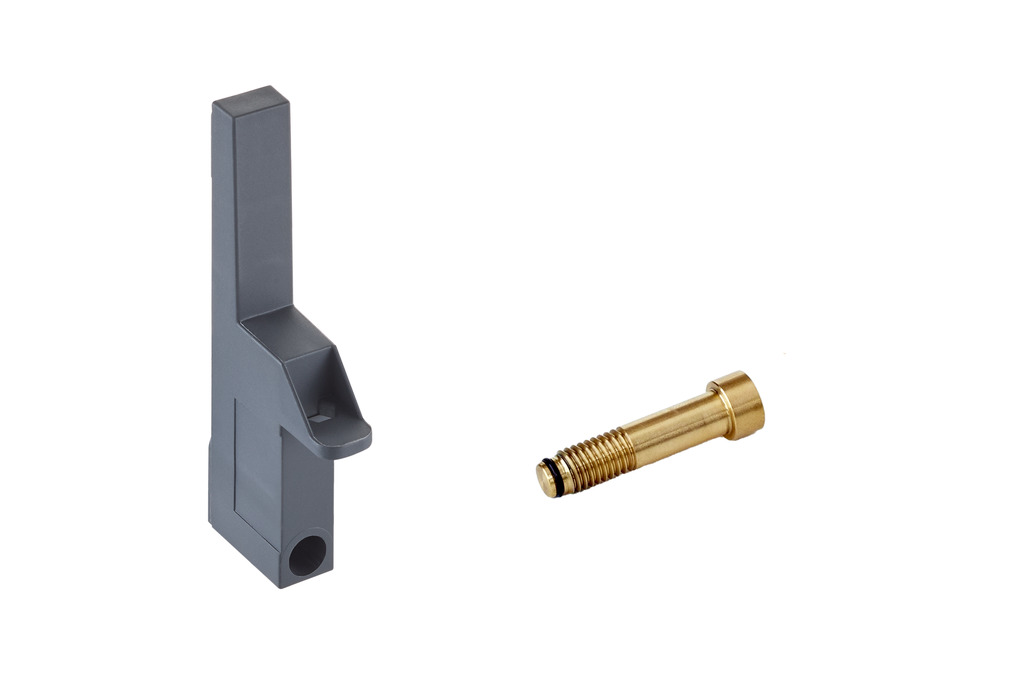

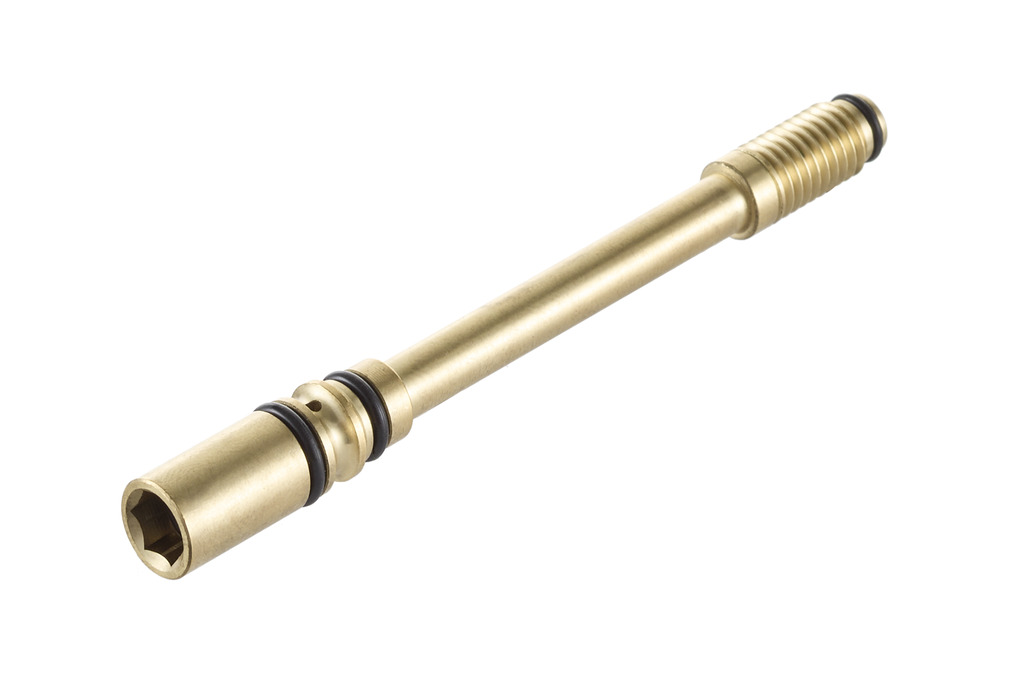

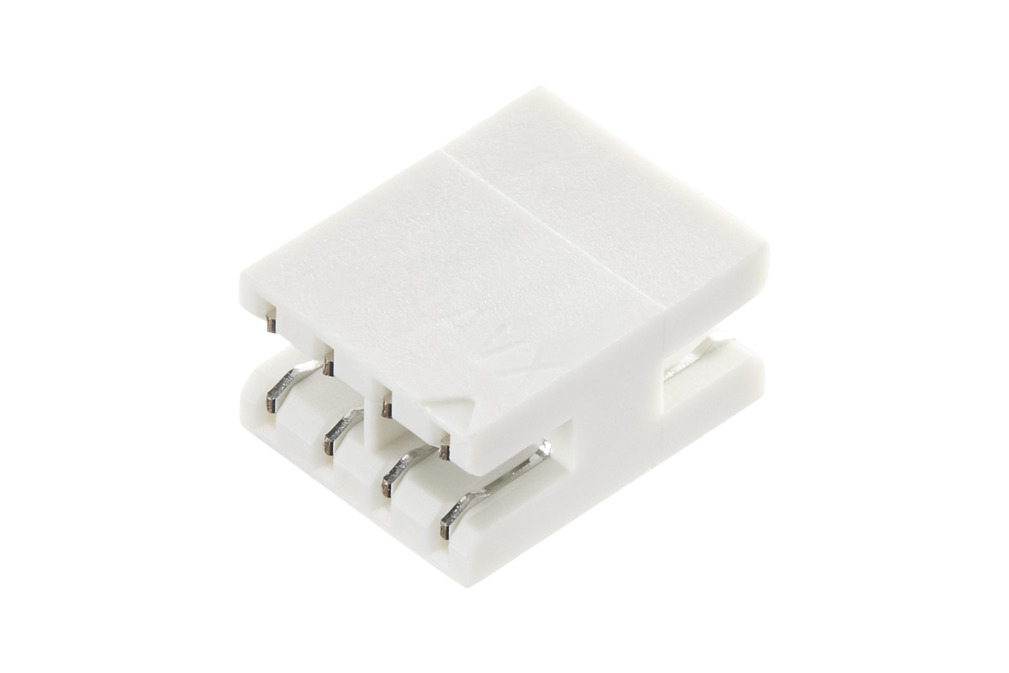

| Documentation | Language |
|---|---|
| English |
| Connection | 6/4 |
| Suction rate (max.) | 28 (l/min) |
| Air consumption suction | 58 (l/min) |
| Max. vacuum | 870 (mbar) |
| Control valve | Normally closed |
| Electrical connection | Flat pin |
| Protection type IP | IP 54 |
| Connection | 6/4 |
| Suction rate (max.) | 28 (l/min) |
| Air consumption suction | 58 (l/min) |
| Max. vacuum | 870 (mbar) |
| Control valve | Normally open |
| Electrical connection | Flat pin |
| Protection type IP | IP 54 |
| Length L | 86.5 (mm) |
| Width B | 12.4 (mm) |
| Height H | 40.5 (mm) |
| Utilization design | Compact terminal SCTMi |
| Thread G | M8 |
| Length L | 92.7 (mm) |
| Utilization design | Compact terminal SCTMi |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
| Outside diameter D | 4 (mm) |
| Internal diameter d | 2 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 20 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -40 ... 60 °C |
| Color | Milky-transparent |
| Connection | Hose 6/4 |
| Filter pore size | 50 (µm) |
| Connection | Hose 4/2 |
| Filter pore size | 50 (µm) |
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 1000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
| Cable length | 5000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
