VS-V-W-D M8-4 UH IOL

Part no.: 10.06.02.00861

Vacuum/pressure switch in cube shape with display and analog / digital output signals

Measuring range	-1...0bar
Shape	Cube, digital display
Type	TFT display
Electrical connection	Male connect M8, 4 pole
Inputs / outputs	2 digital
Shape manometers	Connection bottom, rear
Protection type IP	IP 65
Communication	IO-Link

Design Data

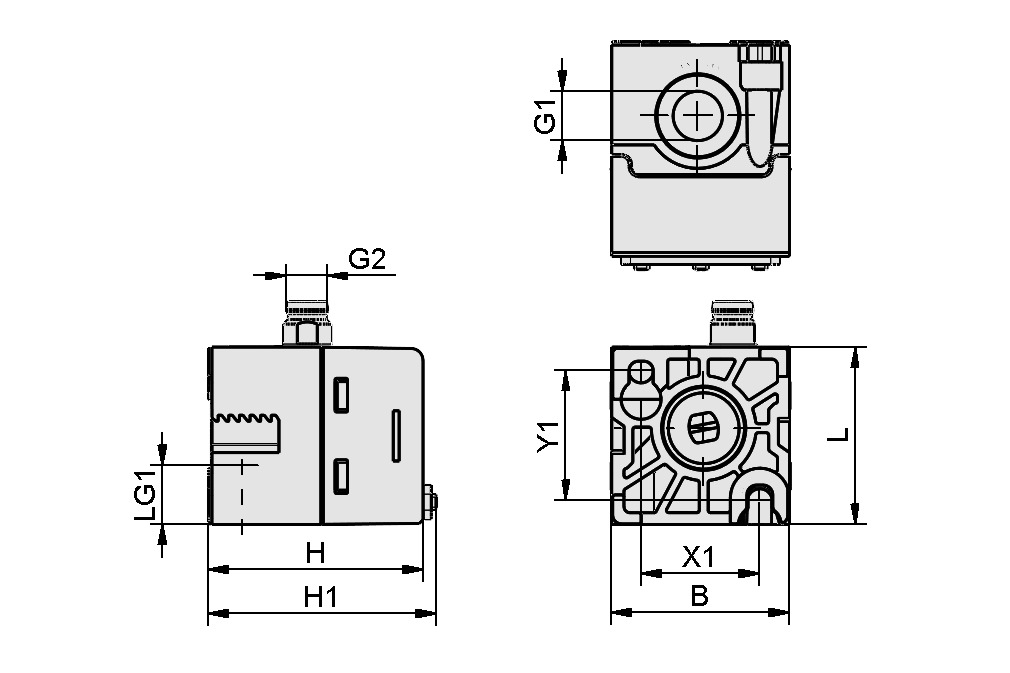

Design image

Attribute	Value
B	30 mm
G1	G1/8"-F
G2	M8x1-M
H	36.4 mm
H1	38.6 mm
L	30 mm
LG1	6.8 mm
X1	20 mm
Y1	22 mm

Technical Data

Attribute	Value
Measured medium	"Non-aggressive gases
Measuring range	-1...0bar
Hysteresis	Adjustable: 0 to 100% of set value
Inputs / outputs	2 digital
Electrical connection	Male connect M8, 4 pole
Voltage	18-30V-DC
Control valve	Optional NO / NC
Communication	IO-Link
Protection type IP	IP 65
Operating temperature	0 ... 60 °C
Weight	53.1 g
