Vacuum Lifting Cylinders HS
Stroke 14 mm and 28 mm
Vacuum-actuated automatic stroke safely separates thin, air-permeable workpieces
Design
Design
- Lifting suction cup consisting of a piston rod and anodized aluminum housing

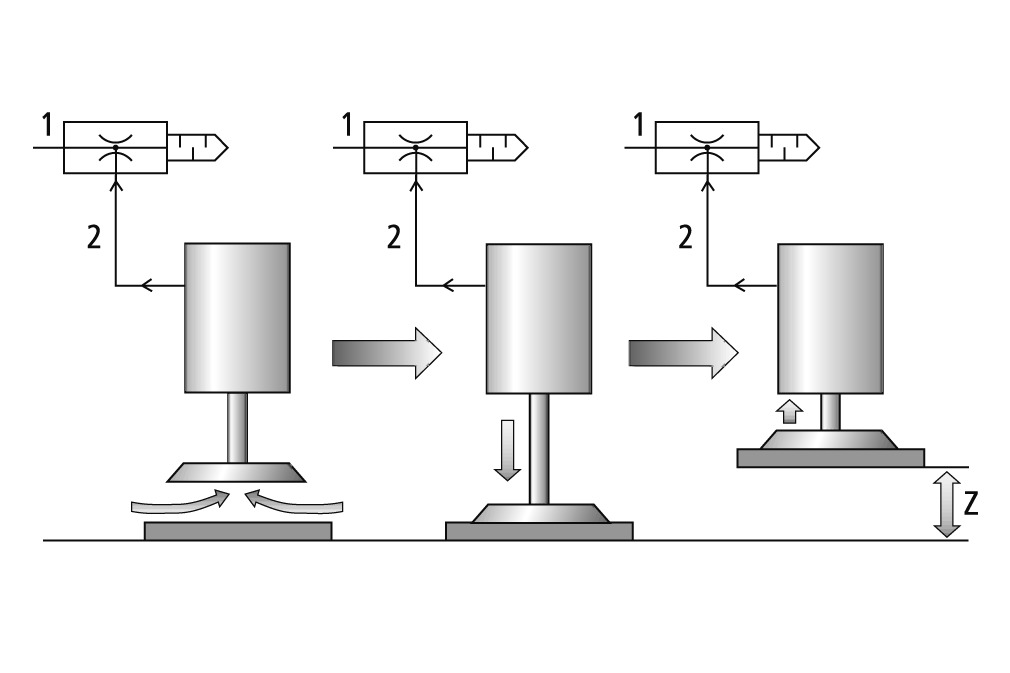

- In idle position, the piston rod is retracted
- Piston rod is extended, when vacuum is applied
- As soon as the suction cup touches the workpiece, the piston rod is retracted, lifting the workpiece before the "suck-through" effect is generated
- Delivery without suction cup
Technical Data
Technical Data
- Body of aluminium with integrated lifting cylinder
- Connection thread M5 and G1/8” for suction cups
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
