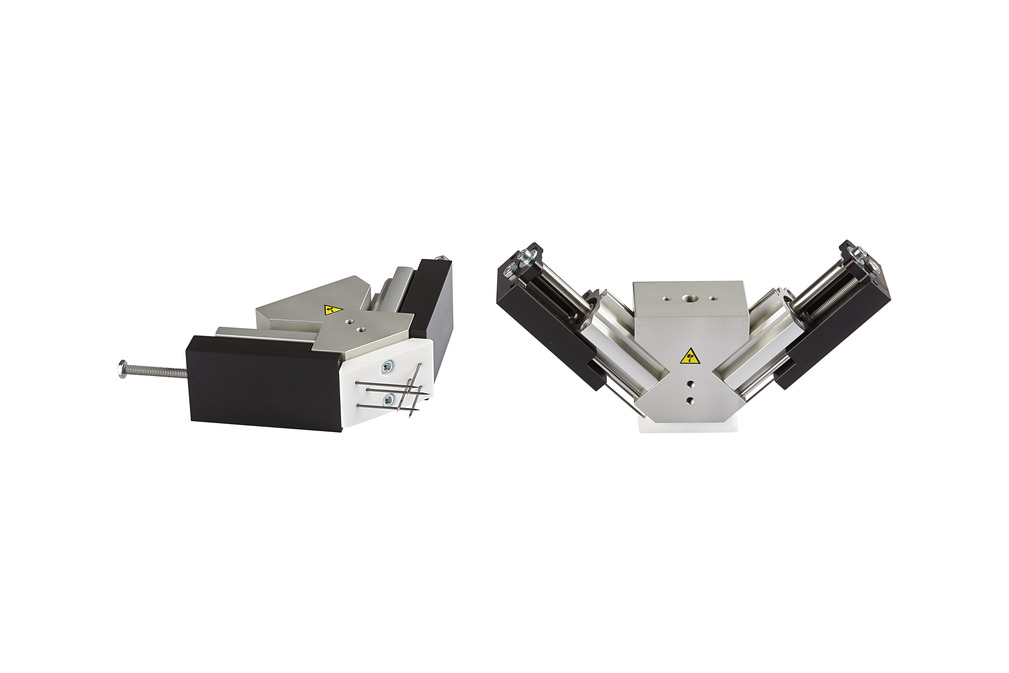

Part no.: 10.01.29.00568
| Attribute | Value |
|---|---|
| B | 48 mm |
| B2 | 10 mm |
| d | 6.6 mm |
| d1 | 11 mm |
| G1 | M5-F |
| G2 | G1/8"-F |
| G3 | M5-F |
| G4 | M5-F |
| H | 87.2 mm |
| H1 | 111.6 mm |
| H2 | 20 mm |
| L | 229 mm |
| W(E) | 45 ° |
| X1 | 29 mm |
| X3 | 25 mm |
| Y2 | 29 mm |
| Z(NA) | 25 mm |
| Attribute | Value |
|---|---|
| Number of needles | 6 |
| Needle diameter | 1.5 mm |
| Pressure range (operating pressure) [bar] | 3.0 ... 7.0 bar |
| Operating temperature | 5 ... 60 °C |
| Installation position | Any |
| Weight | 1,140 g |
| Additional function | Variable stroke, high force |
| Product family | SNG-V |
| Utilization design | Needle gripper |
| Size | V-HP |

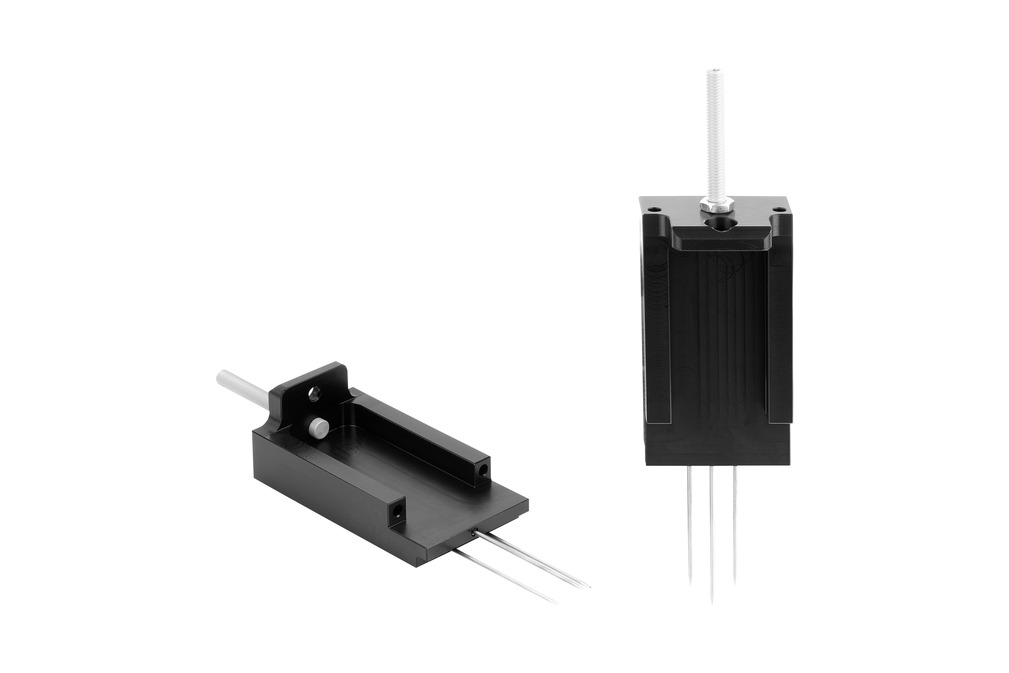

| contains | 2 needle wedges mounted |
| Number of needles | 6 |
| Needle diameter | 1.5 (mm) |
| Needle stroke Z(NA) | 25 (mm) |
| Utilization design | Needle gripper |
| Size | V-HP |

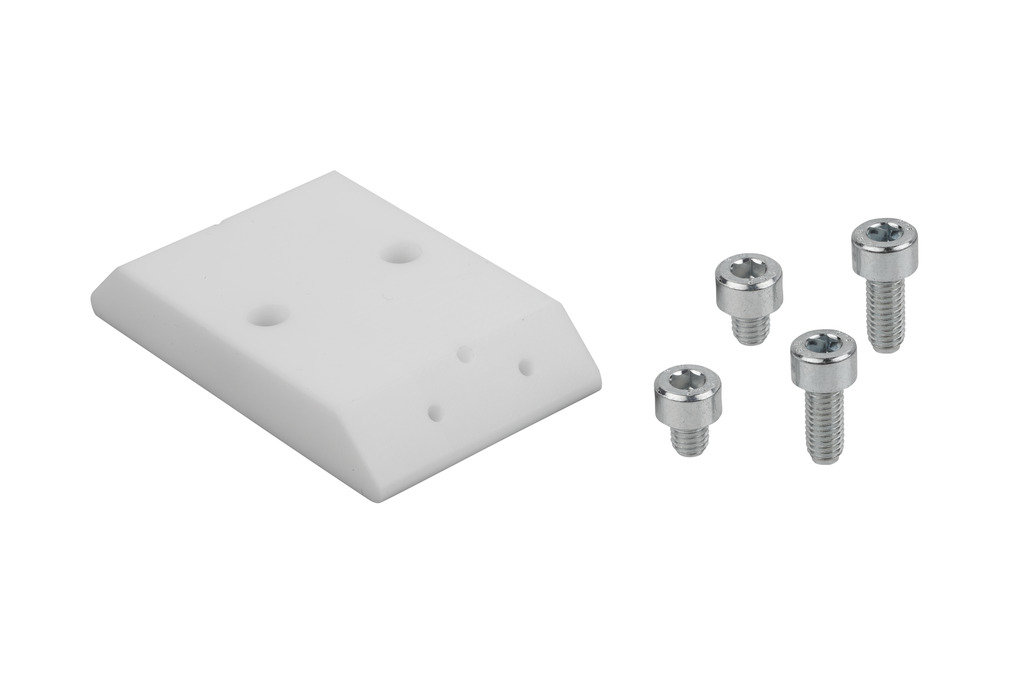

| contains | Gripping surface PTFE |
| Number of needles | 6 |
| Needle diameter | 1.5 (mm) |
| Needle stroke Z(NA) | 25 (mm) |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 11.5 (mm) |
| Thread G1 | G1/4"-F |
| Utilization design | Needle gripper |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 9.4 (mm) |
| Utilization design | Needle gripper |
| Size | AP/AE |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 9.4 (mm) |
| Utilization design | Needle gripper |
| Size | AP/AE |
| Utilization design | Needle gripper |
| Connection profile | 2x screws M6 |
| Size | AP/AE |
| Shape | One piece |
| Thread G1 | M5-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 9.9 (mm) |
| Length L | 18.8 (mm) |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 20.8 (mm) |
| Height H | 13 (mm) |
| Thread G1 | M5-M |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
