HPS-SNG 2M6 AP/AE OP
Part no.: 10.01.29.00666
Holder system
| Utilization design | Needle gripper |
| 2x screws M6 | |
| Size | AP/AE |
| Shape | One piece |

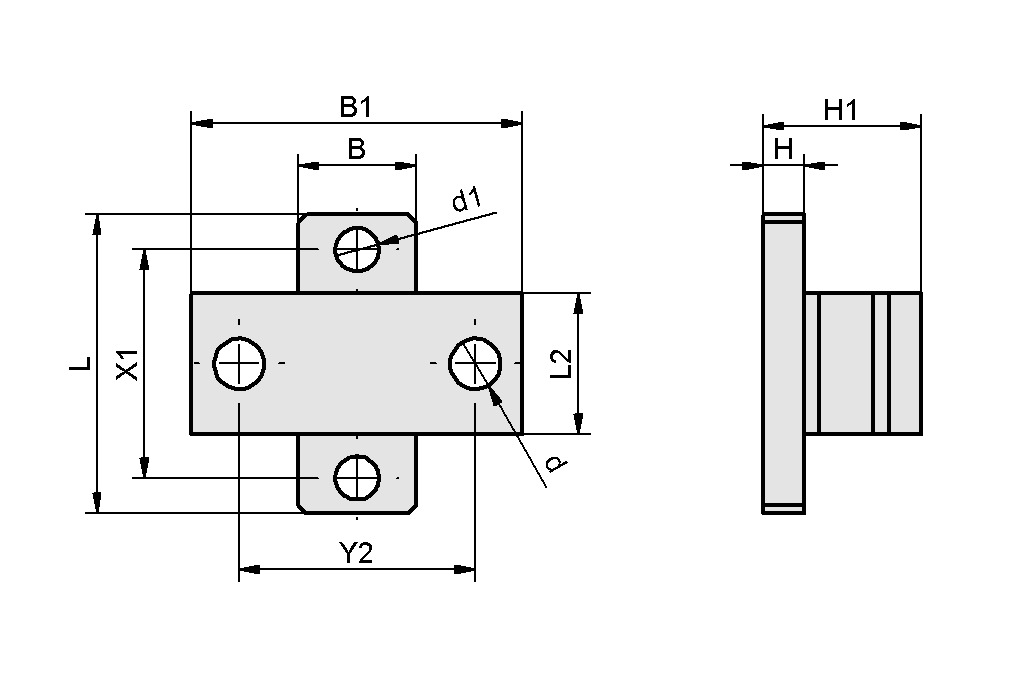

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 15 mm |
| B1 | 42 mm |
| d | 6.4 mm |
| d1 | 5.5 mm |
| H | 5.15 mm |
| H1 | 20 mm |
| L | 38 mm |
| L2 | 18 mm |
| X1 | 29 mm |
| Y2 | 30 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 31.4 g |
Documentation
Documentation
Accessories
SET HP-SG 2xM6 PXT10.07.06.00744Assembly set
| Utilization design | HP-SG |
| 2 | |
| M6 | |
| Form | Modular gripper system PXT |
