HTS-A2 SGM-HP 30/40 OP10.01.17.00567Holder system
| Connection 1 | Bolt with slot Ø19mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30/40 |
- EFFICIENT

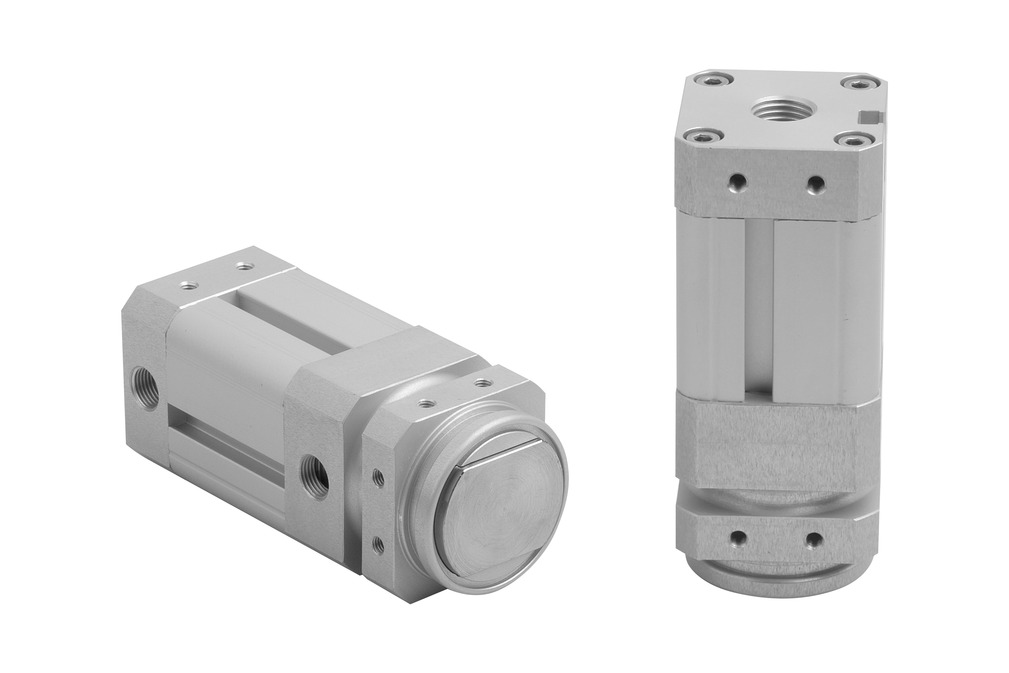

Part no.: 10.01.17.00403

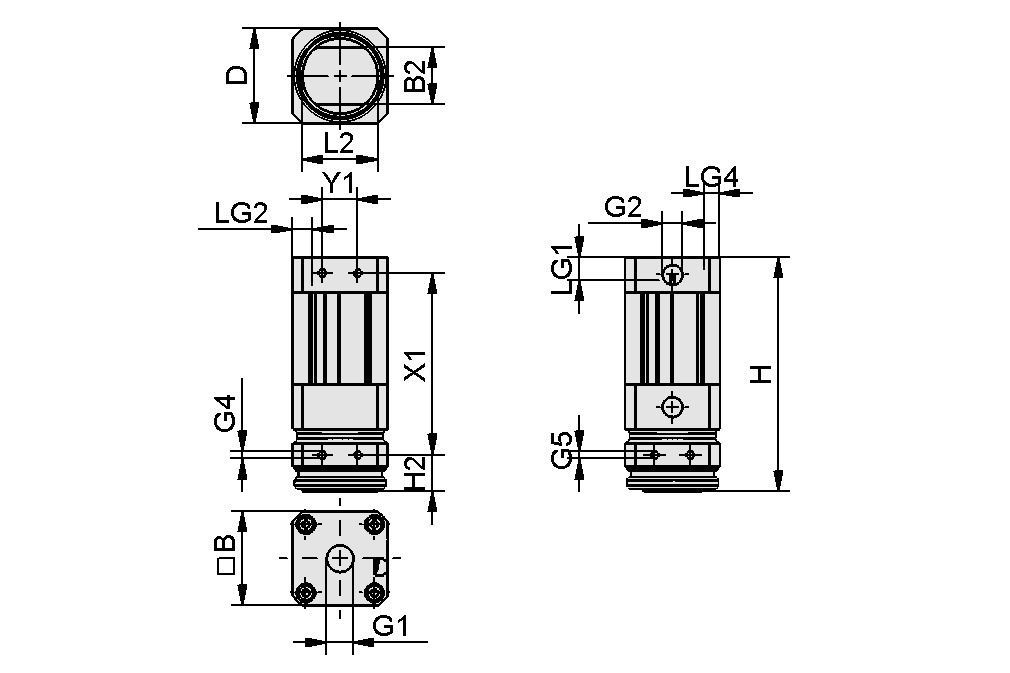

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 40.65 mm |
| B2 | 24.2 mm |
| D | 38.4 mm |
| G1 | G1/4"-F |
| G2 | G1/8"-F |
| G4 | M4-F |
| G5 | M4-F |
| H | 99.2 mm |
| H2 | 15.5 mm |
| L2 | 32 mm |
| LG1 | 9 mm |
| LG2 | 6 mm |
| LG4 | 5 mm |
| X1 | 74 mm |
| Y1 | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Holding force max. without friction | 290 N |
| Holding force max. with friction ring | 230 N |
| Sheet thickness optimum for holding force max. | 4 mm |
| Holding force 2 mm sheet without friction ring | 260 N |
| Holding force 2 mm sheet with friction ring | 200 N |
| Remaining holding force | 0.3 N |
| Pressure range (operating pressure) [bar] | 2.5 ... 6.0 bar |
| Installation position | BEL |
| Control valve | Bistable |
| Working temperature max. | 350 °C |
| Operating temperature | 5 ... 150 °C |
| Weight | 415 g |
| Product family | SGM-HP-HT |
Documentation
Documentation
Accessories
HTS-A3 SGM-HP 30/40 OP10.01.17.00557Holder system
| Connection 1 | Ball head 28.5 mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30/40 |
HTS-A5 SGM-HP 30/40 OP10.01.17.00563Holder system
| Connection 1 | Ball head 32 mm |
| Utilization design | Magnetic gripper SGM-HP |
| Size | 30/40 |
HPS-SGM-HP 2M8 30/40 OP10.01.17.00651Holder system
| Utilization design | Magnetic gripper SGM-HP |
| Connection 1 | 2x screws M8 |
| Size | 30/40 |
| Shape | One piece |
SCHUTZ SGM-40 ST10.01.17.00521Protection element for gripping
surface for handling hard and rough
workpieces
| Utilization design | Magnetic gripper |
| Size | 40 |
| Material | Steel |
REIB-RING SGM-HT-HP 40 HT2-6510.01.17.00411Friction ring
| Utilization design | Magnetic gripper SGM-HT-HP |
| Size | 40 |
| Outside diameter D | 40 (mm) |
| Internal diameter d | 32 (mm) |
ADP-E-TRI 30/40 SET10.01.17.00421Lifting elements for cylindrical
parts
| Size | 3040 |
| Shape | Triangle |
| Workpiece diameter (min.) | 10 (mm) |
| Workpiece diameter (max.) | 20 (mm) |
STV-GE G1/8-AG 6 HT10.08.02.00389Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Outside diameter D | 11.6 (mm) |
| Length L | 19 (mm) |
STV-W G1/8-AG 6 HT10.08.02.00391Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Length L | 22.5 (mm) |
VSL 6-4 PTFE MI-TR10.07.09.00157Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 50 (m) |
| Material hose | Polytetrafluorethylene |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -190 ... 260 °C |
| Color | Milky-transparent |
