Part no.: 10.08.02.00389
Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Outside diameter D | 11.6 (mm) |
| Length L | 19 (mm) |

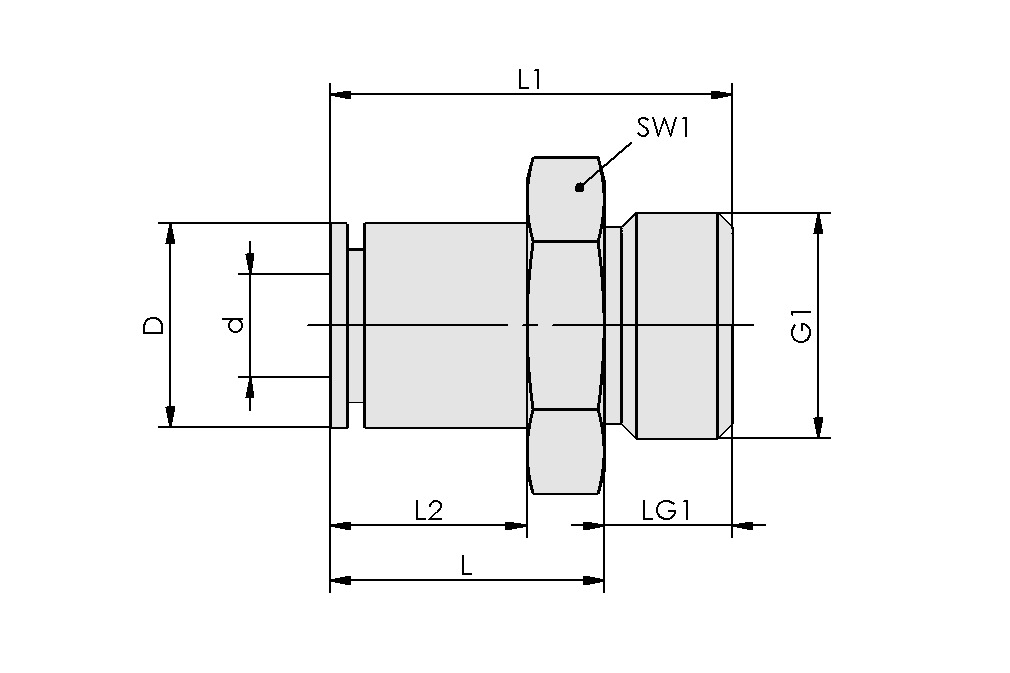

| Attribute | Value |
|---|---|
| D | 11.6 mm |
| d | 6 mm |
| G1 | G1/8"-M |
| dn | 6 mm |
| L | 19 mm |
| L1 | 24.5 mm |
| L2 | 15 mm |
| LG1 | 5.5 mm |
| SW1 | 13 mm |
| Attribute | Value |
|---|---|
| Design hose type | Hose D = 6 d = 4 |
| Design hose type | 6-4 |
| Material | Brass |
| Pressure range (operating pressure) [bar] | -0.95 ... 24.00 bar |
| Operating temperature | -20 ... 120 °C |
| Weight | 12 g |
| Product family | STV |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 100 (m) |
| Material hose | PE |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Color | blue |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 50 (m) |
| Material hose | Polytetrafluorethylene |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -190 ... 260 °C |
| Color | Milky-transparent |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
