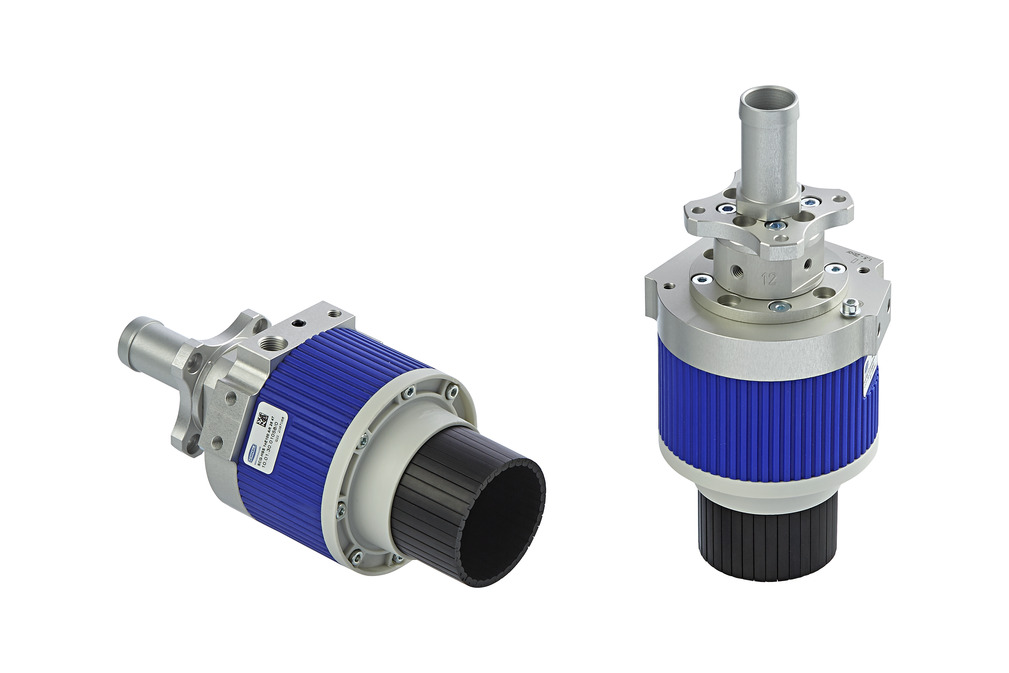

Part no.: 10.01.30.01058
Design Data
Design Data
| Attribute | Value |
|---|---|
| B1 | 73 mm |
| B2 | 72 mm |
| D | 73 mm |
| D2 | 50 mm |
| D3 | 19.5 mm |
| D mk1 | 46 mm |
| Ds | 47 mm |
| d | 4 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G3 | M5-F |
| G4 | M5-F |
| H | 105 mm |
| H1 | 143.5 mm |
| H2 | 75.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Additional function ejector | Exhaust duct axial |
| ESD status | compliant |
| Performance class | E100 |
| Operating temperature | 5 ... 50 °C |
| Weight | 520 g |
| Product family | SCG-HSS |
Documentation
Documentation
Spare parts
Accessories
SD G3/8-AG 40x80 SCG10.01.30.00352Silencer for vacuum generators
| Thread G1 | G3/8"-M |
| Outside diameter D | 40 (mm) |
| Length L | 80 (mm) |
| Utilization design | Flow gripper |
STV-W M5-AG 410.08.02.00155Push-in Fitting, swivelling
elbow
| Thread G1 | M5-M |
| Outer hose diameter | 4 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 16.4 (mm) |
STV-GE M5-AG 410.08.02.00200Push-in Fitting, straight
| Thread G1 | M5-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 7.9 (mm) |
| Length L | 15 (mm) |
STV-W M5-AG 610.08.02.00296Push-in Fitting, swivelling
elbow
| Pressure range (operating pressure) [bar] | bar |
| Length L | 20.8 (mm) |
| Height H | 13 (mm) |
| Thread G1 | M5-M |
STV-GE M5-AG 610.08.02.00201Push-in Fitting, straight
| Thread G1 | M5-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 9.9 (mm) |
| Length L | 18.8 (mm) |
STV-W G1/8-AG 610.08.02.00288Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Plastics |
| Operating temperature | °C |
| Length L | 20.8 (mm) |
STV-GE G1/8-AG 610.08.02.00204Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
VSL 4-2 PU MI-TR10.07.09.00001Hose for vacuum and
compressed-air systems
| Outside diameter D | 4 (mm) |
| Internal diameter d | 2 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 20 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -40 ... 60 °C |
| Color | Milky-transparent |
VSi V M8-410.06.02.00567Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Electrical connection | Male connect M8, 4 pole |
| Indication | LED |
| Protection type IP | IP 65 |
VENT-BGR 24V-DC E-KET 1,8M10.01.45.00032Building group Solenoid valve
Control of vacuum and compressed air
| Voltage DC | 24 V - DC |
| Pressure range (operating pressure) [bar] | 3.0 ... 10.0 bar |
| Type | 1,8m |
| Length L | 1760 (mm) |
| Weight | 2.5 (kg) |
VENT-BGR 24V-DC E-KET 2,2M10.01.45.00033Building group Solenoid valve
Control of vacuum and compressed air
| Voltage DC | 24 V - DC |
| Pressure range (operating pressure) [bar] | 3.0 ... 10.0 bar |
| Type | 2,2m |
| Length L | 2170 (mm) |
| Weight | 2.7 (kg) |
