Part no.: 10.01.30.01065

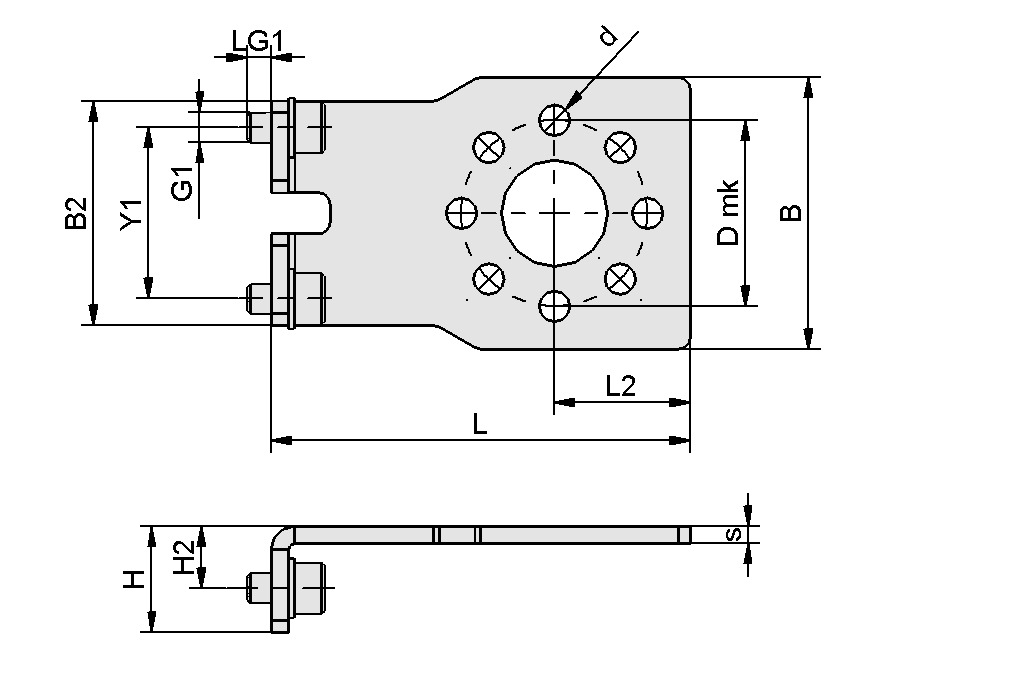

Design Data
Design Data
| Attribute | Value |
|---|---|
| SCG-HSS | |
| B | 46 mm |
| B2 | 38 mm |
| d | 5.2 mm |
| Dmk | 31.5 mm |
| G1 | M5-M |
| H | 18 mm |
| H2 | 10.5 mm |
| L | 71 mm |
| L2 | 23 mm |
| LG1 | 4 mm |
| Y1 | 29 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Mounting | sideways |
