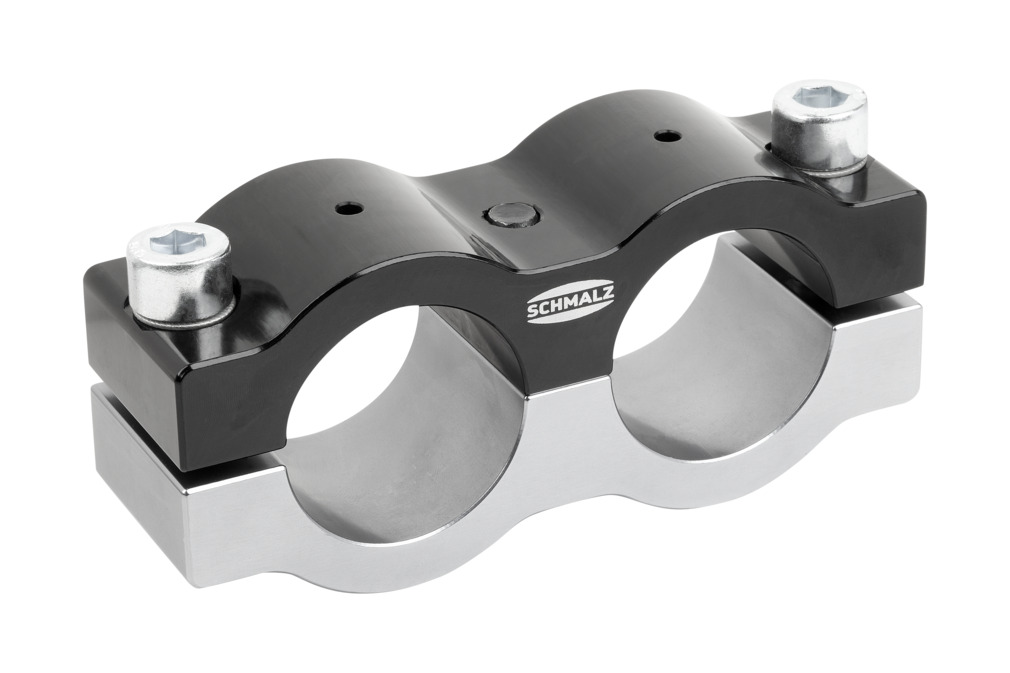

SXT-CL P 40 40 AL
Part no.: 10.07.13.00111
Clamp for Round Tooling
| Shape | Parallel |
| Width B | 40 (mm) |
| Length L | 130 (mm) |
| Material | Aluminum |
| Utilization design | Pipe 40 / 40 |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 40 mm |
| d | 40 mm |
| d1 | 40 mm |
| H | 58 mm |
| H1 | 58.5 mm |
| L | 130 mm |
| L2 | 37.3 mm |
| X1 | 55.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Parallel |
| Weight | 445 g |
| Product family | SXT |
