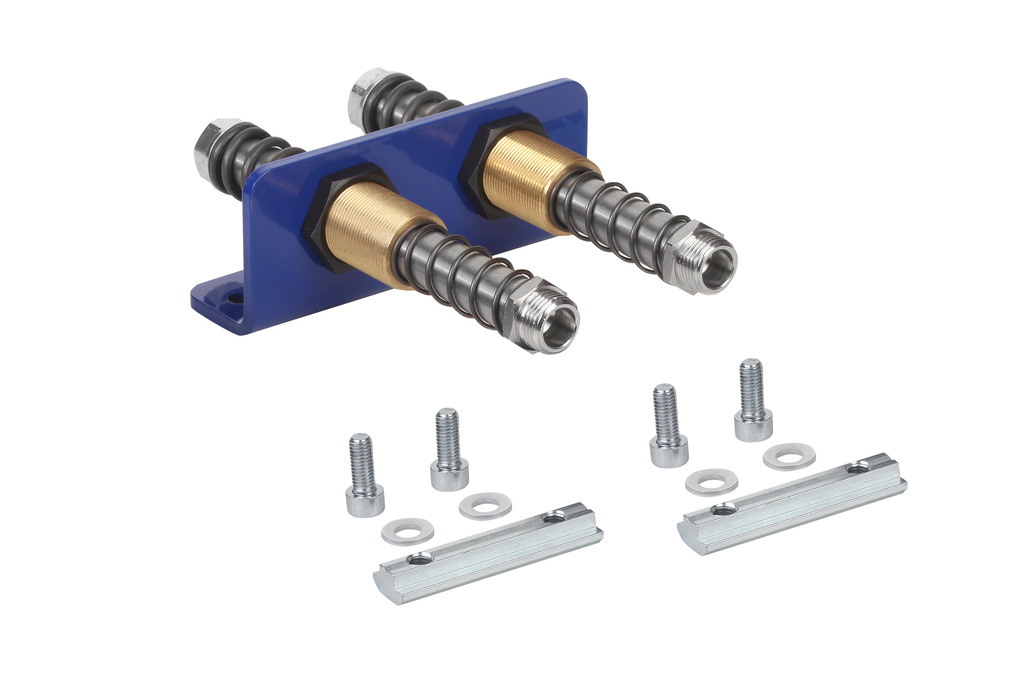

Part no.: 10.01.10.07012
| Attribute | Value |
|---|---|
| B | 152 mm |
| G1 | G3/8"-F |
| G2 | G1/2"-M |
| H | 167.6 mm |
| H1 | 129 mm |
| H2 | 20 mm |
| L | 41 mm |
| LG1 | 13 mm |
| LG2 | 10.5 mm |
| Z (Stroke) | 25 mm |
| Attribute | Value |
|---|---|
| Spring rate | 3.83 N/mm |
| Size | 40x40 |
| Weight | 2,300 g |
| Product family | FST-STARR |
| Length L | 120 (mm) |
| Width B | 85 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Vacuum area gripping system |
| Length L | 160 (mm) |
| Width B | 120 (mm) |
| Height H | 10 (mm) |
| Utilization design | Vacuum area gripping system FMHD |
| Length L | 200 (mm) |
| Width B | 100 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Large-area vacuum gripper |
| Length L | 260 (mm) |
| Width B | 90 (mm) |
| Height H | 10 (mm) |
| Utilization design | Vacuum area gripping system |
| Length L | 400 (mm) |
| Width B | 90 (mm) |
| Height H | 10 (mm) |
| Material | Steel |
| Utilization design | Large-area vacuum gripper |
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Shape mounting elements | reinforced |
