- PHASED-OUT ITEM
Part no.: 10.01.10.05702

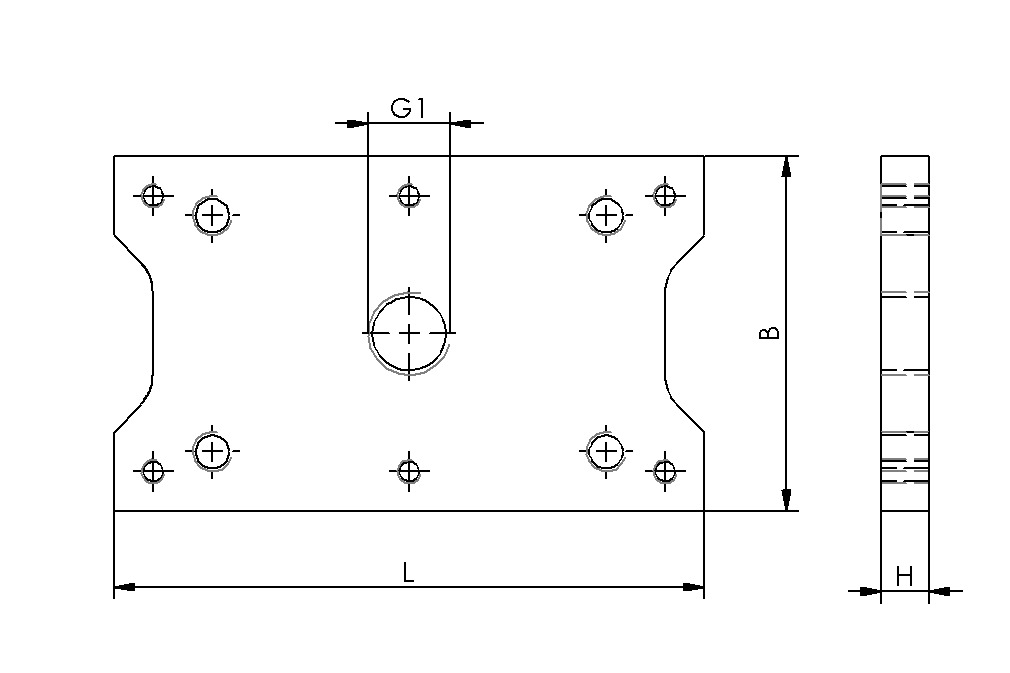

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 90 mm |
| G1 | G1/2"-F |
| H | 10 mm |
| H1 | 33 mm |
| L | 400 mm |
| L2 | 60 mm |
| L3 | 130 mm |
| L4 | 135 mm |
| X1 | 280 mm |
| Y1 | 65 mm |
Documentation
Documentation
Part no.: 10.01.10.05702
| Attribute | Value |
|---|---|
| B | 90 mm |
| G1 | G1/2"-F |
| H | 10 mm |
| H1 | 33 mm |
| L | 400 mm |
| L2 | 60 mm |
| L3 | 130 mm |
| L4 | 135 mm |
| X1 | 280 mm |
| Y1 | 65 mm |
