Suspension Flexible FST-FLEX
Stroke from 25 mm to 75 mm
Maintenance-free and durable thanks to high-quality plain bearings and machined push rod; enables minimum cycle times
With two damping springs optimized for sensitive workpieces
Plunger with centering spring and spherical calotte optimized for extremely uneven workpiece positions
Design
Design

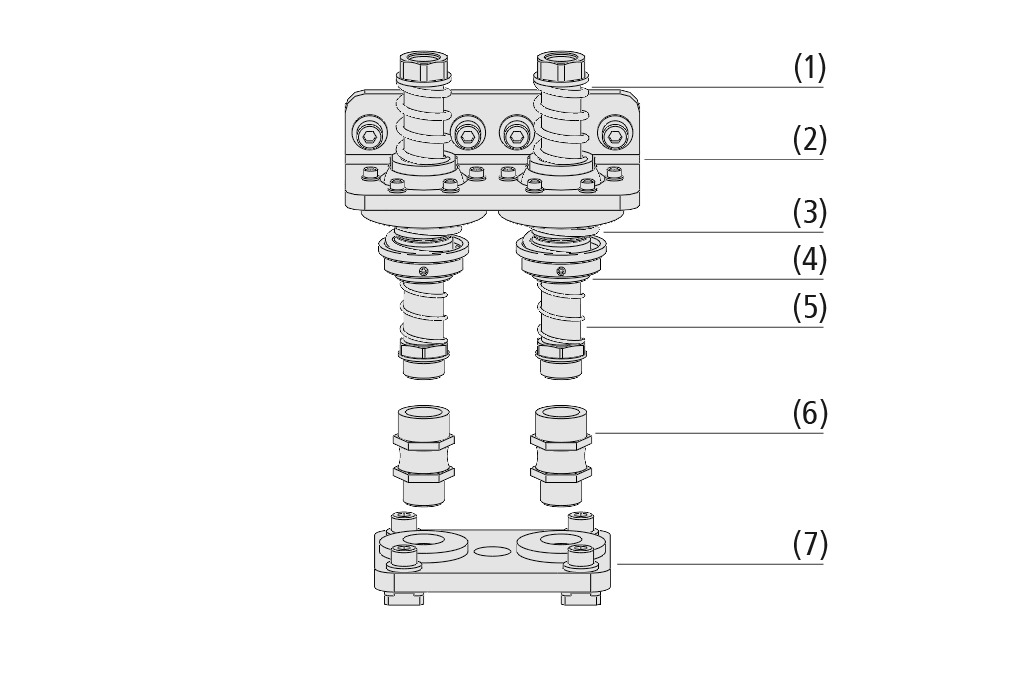

- Spring plunger with stainless steel plunger rod, brass guide sleeve with integrated sliding sleeve both lower (5) and upper (1) damping spring
- Powder coated plate (2) as attachment to an aluminum section and to hold the automatic centering unit consisting of the centering spring (3) and the spring seat nut (4); the centering spring pretensioning (3) can be set using locking screws in the spring seat nut (4).
- Jointed mounting (6) available as an option
- Powder coated connection plate (7) for connection to an area gripper; the connection plate can be adapted to individual area gripping systems
Technical Data
Technical Data
- Connection: G1/2"
- Stroke: 25 to 75 mm
- Jamming safe by spherical mounting
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
