Part no.: 10.01.02.00758

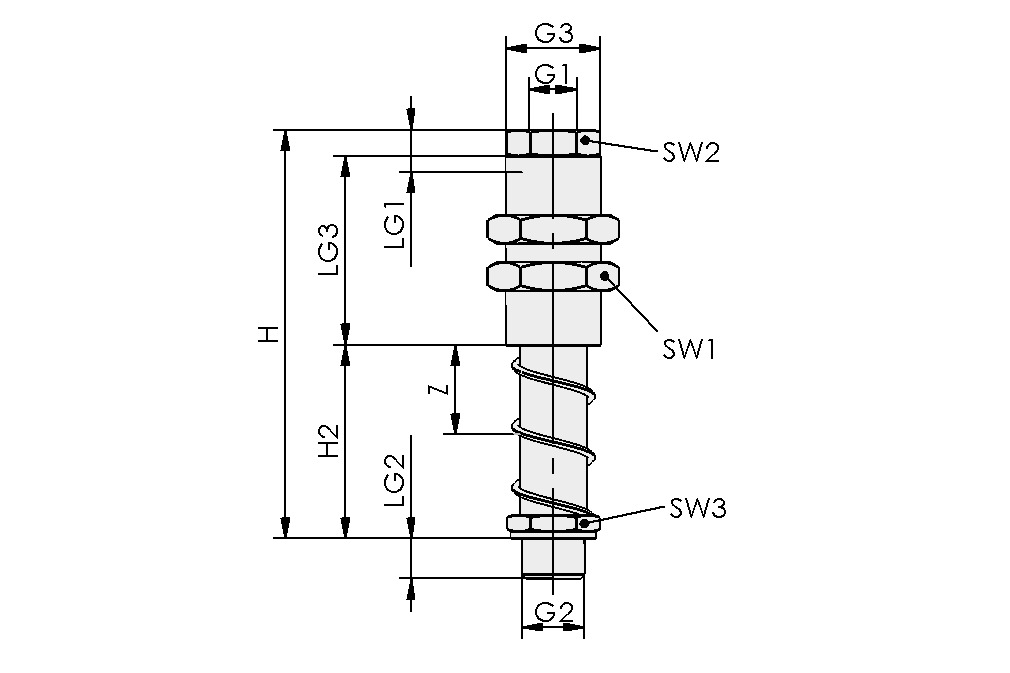

| Attribute | Value |
|---|---|
| G1 | G1/8"-F |
| G2 | G1/8"-M |
| G3 | M16x1-M |
| H | 116.5 mm |
| H2 | 72.5 mm |
| LG1 | 8 mm |
| LG2 | 7.5 mm |
| LG3 | 30 mm |
| SW1 | 22 mm |
| SW2 | 12 mm |
| SW3 | 14 mm |
| Z (Stroke) | 50 mm |
| Attribute | Value |
|---|---|
| Spring rate | 0.1 N/mm |
| Spring pretension | 2.92 N |
| Spring force center | 5.34 N |
| Vertical load | 3,700 N |
| Horizontal load | 173 N |
| Tightening torque (max) | 40 Nm |
| Weight | 110 g |
| Operating temperature | 0 ... 80 °C |
| Product family | FSTE-HD |
| Thread G1 | G1/8"-F |
| Thread G2 | G1/8"-M |
| Height H | 26.5 (mm) |
| Material | Austenitic stainless steel |
| Length L | 47 (mm) |
| Connection 1 | Sliding block |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | flat |
| Connection 1 | 30x30 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
| Connection 1 | 40x40 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 4 (mm) |
| Material | Brass |
| Surface | raw |
| Length L | 4 (mm) |
| Nominal diameter dn | 2.5 (mm) |
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 6 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 4.4 (mm) |
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 7.9 (mm) |
| Length L | 13.7 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Outside diameter D | 14 (mm) |
| Length L | 20.7 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 16.4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 20.1 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 24 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Outside diameter D | 11.6 (mm) |
| Length L | 19 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Plastics |
| Operating temperature | °C |
| Length L | 20.8 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 120 °C |
| Length L | 22.5 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 17.4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 21.4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 23.4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 10 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 25.2 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 32.5 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 41.5 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 48.7 (mm) |
