- NEW
Hose Management Kit HMK
Vacuum gripping system and hose routing from a single source
Schmalz offers you hose guide assemblies or, alternatively, complete vacuum hose management sets. The scope of delivery includes robot-specific adapter brackets and all the hardware for mounting the hose routing assemblies on your robot. Schmalz also offers sets that include the hardware for routing compressed air lines and robot I/O cables to the EOAT.
Simple and time-saving integration
Suitable for all common industrial robots
Flexible response to customer requirements
Also available as a complete package including project planning

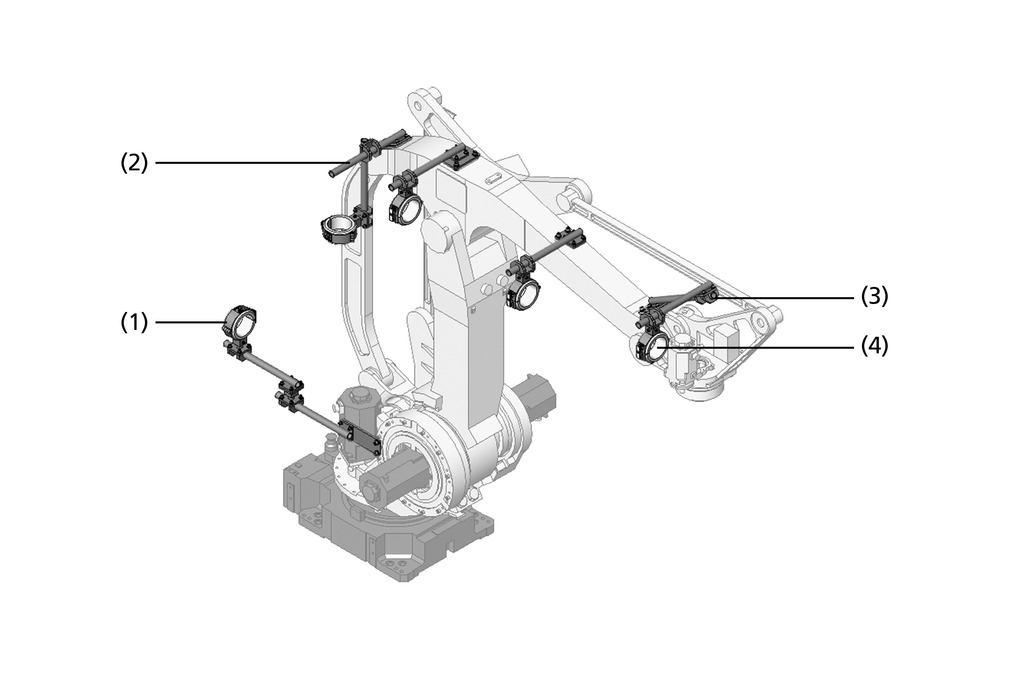

Design
- Hose clamp assembly (1)
- Pipe post (parallel) (2)
- Transition bracket (3)
- Insert ring for urethane hose outside diameter (4)
Ordering information
Ordering information
For quick and complete project planning, please complete the online questionnaire at the top of the page. You will then receive a quote for the complete hose routing set.
Technical Data
- Insert rings, hose clamps, brackets, transition brackets, hose baskets
- Outer hose diameter: 60 to 112 mm
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |

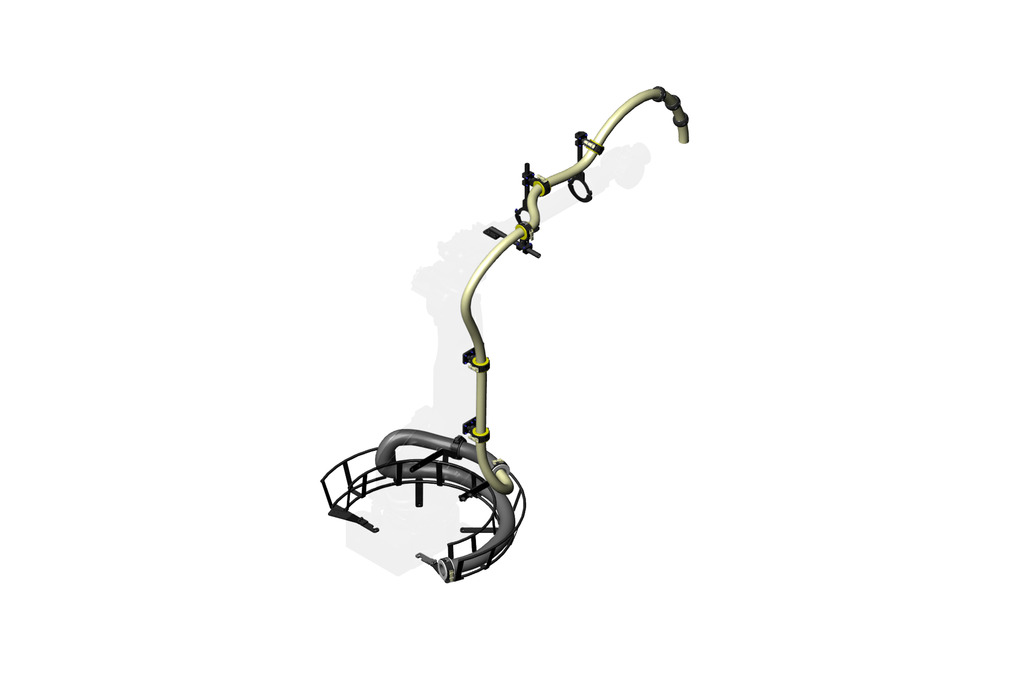

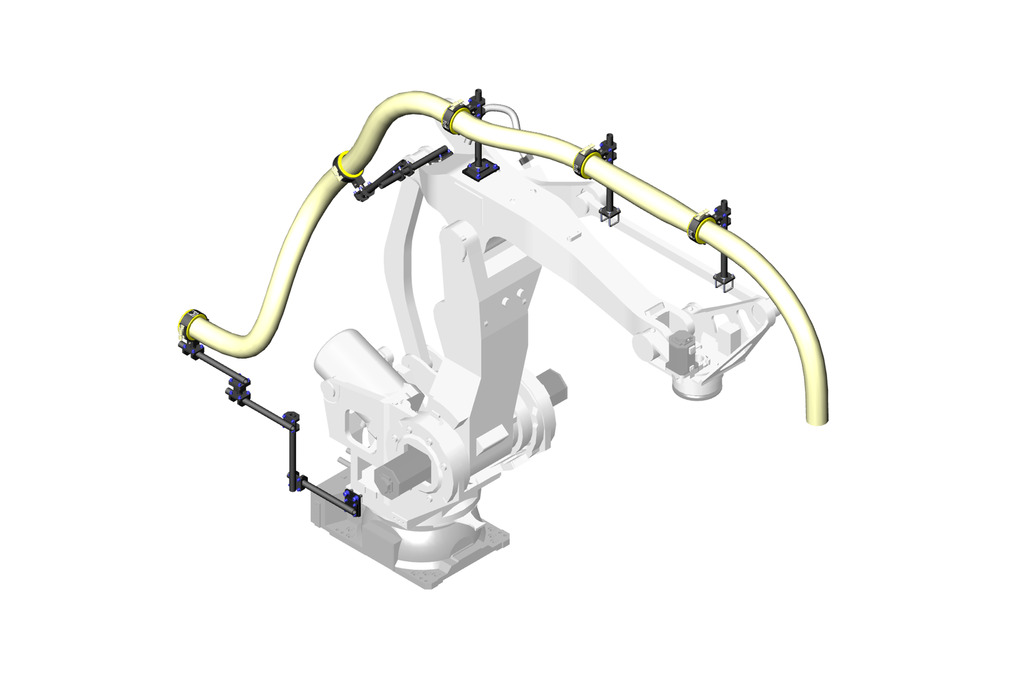

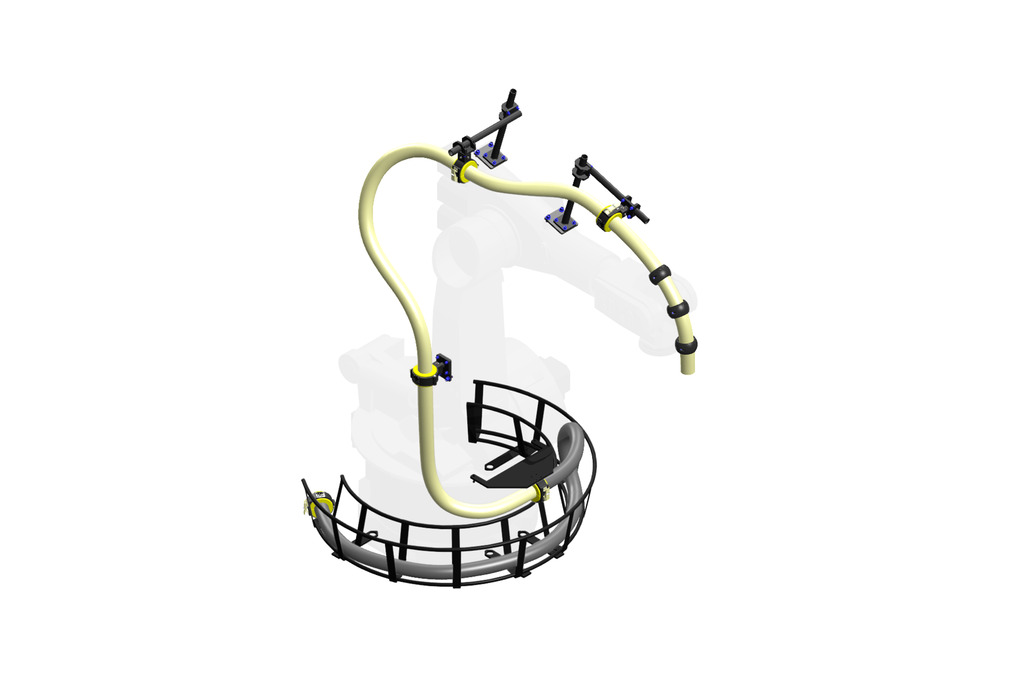

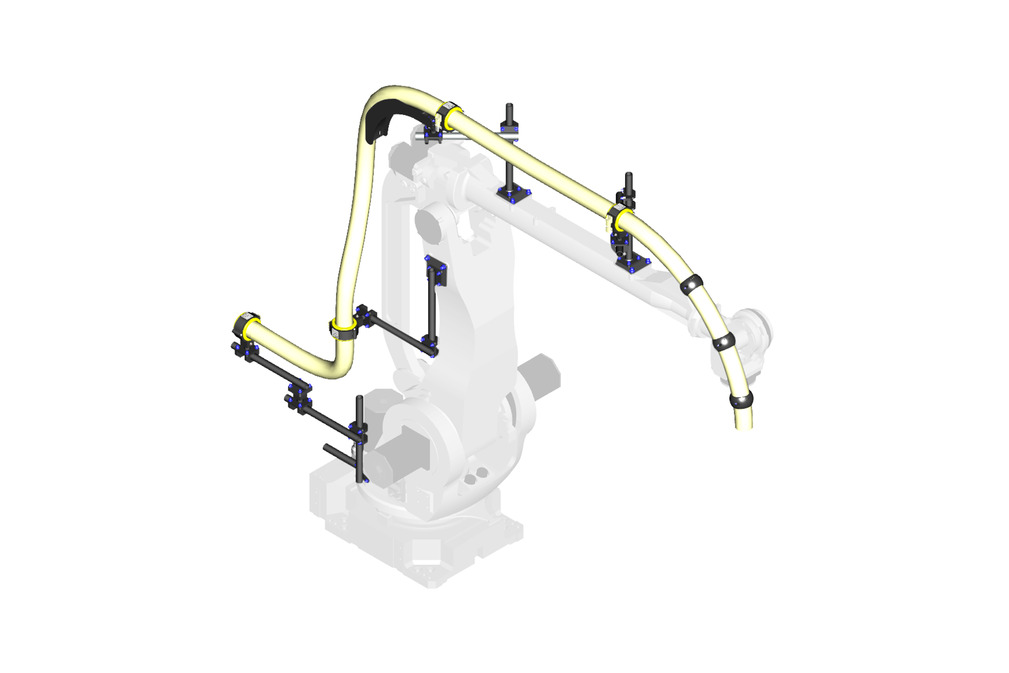

Example configurations
