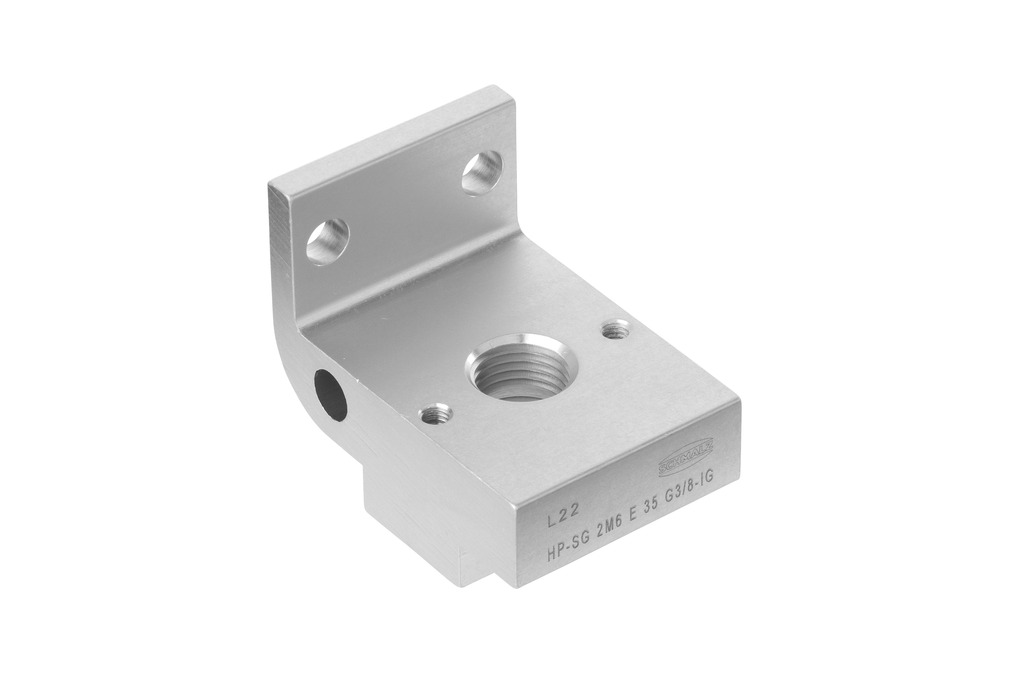

Holders for Suction Cups HP-SG
Suction cup connection for suction cup nipples G1/4" and G3/8"
Lightweight aluminum design minimizes gripper weight and load limit
Stable design for high dynamic load enables fast traversing speed
Versatile use on standard slot profiles due to flexible connection via slot nut
Saving of additional mounting material by connecting the vacuum supply line directly to the holder
Design
Design
- Connection to profiles with T-slot (1)
- Connection for vacuum suction cups (2) and decentralized vacuum generators of type SEAC (3)
- Optional: connection for external vacuum generation (3) instead of vacuum generator SEAC
Technical Data
Technical Data
- Width 35 mm, mounting for vacuum suction cups with connections G1/4" and G3/8", internal and external threads
- Material: Aluminum
- Connection to profile with double sliding blocks M6
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
