- NEW

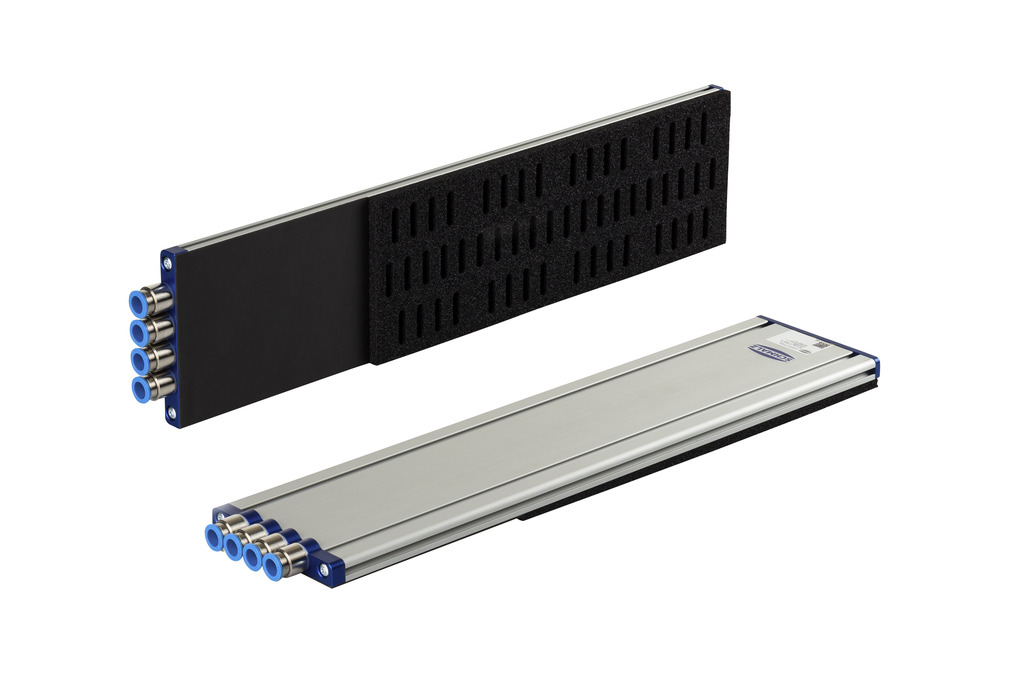

Vacuum Area Gripping Systems FEL
Gripping surface (LxW) from 300 x 130 to 800 x 130 mm
Low overall height with 16.5 mm base section height enables use in areas with critical interference contours
Low gripper weight, high effective lift capacity and dynamic handling thanks to modular lightweight design
High energy efficiency and low operating costs due to integrated gripper segmentation into individually switchable and controllable zones
High-performance sealing foam with excellent sealing properties and long service life
Sealing foam with quick-change adhesive film for effortless replacement without time-consuming cleaning work
Design
Design
- Aluminum base section (1) with lateral T-slots for sensors as well as integrated air guides for supplying the individual gripping zones (maximum 4 zones); different gripper lengths possible
- Connection hose couplings (2) for external vacuum generators to supply the individual suction zones
- Flanged-on area (3) and integrated suction zones (4)
- Sealing plate (5)
Technical Data
Technical Data
- Segmentable, low designed universal gripper for energy-efficient handling of different workpieces in confined spaces
- Dimensions: 300 x 130 to 800 x 130 mm
- Base section height: 16.5 mm
- Sealing element: sealing foam
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
