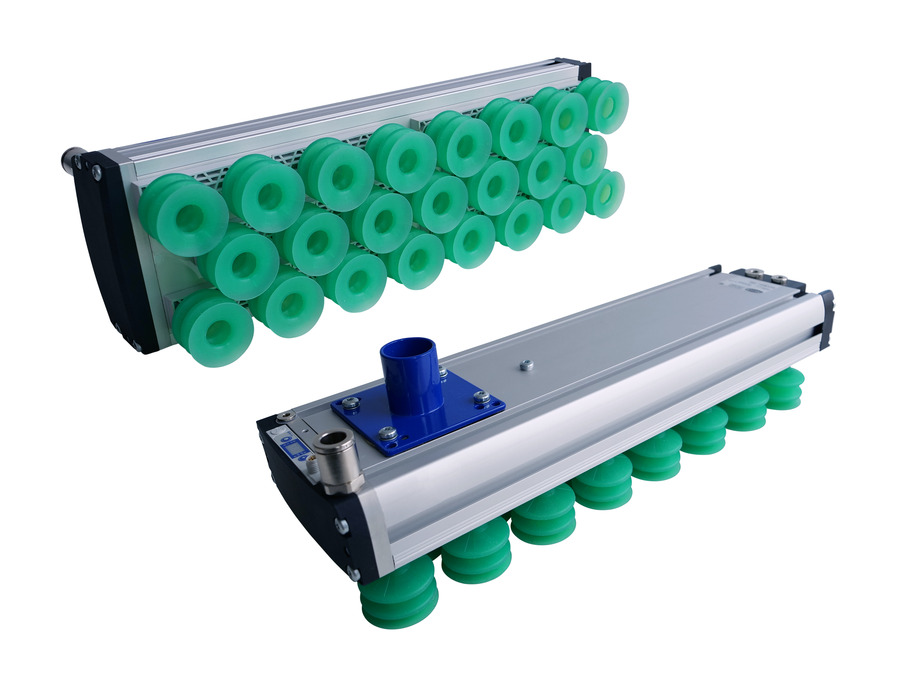

Part no.: 10.01.38.06752

Design Data

Attribute	Value
B	130 mm
B3	21.6 mm
D	32 mm
H	106 mm
H1	147 mm
H2	56 mm
H3	7.7 mm
H4	5.5 mm
H5	41 mm
L	442 mm
L1	446 mm
L2	402 mm
L3	80.9 mm
Y1	90 mm
Valve type	SVK

Note: Vacuum hose with internal diameter equal to dimension D required. See Technical Data -> Shape

Technical Data

Attribute	Value
Arrangement	3R54
Number of suction cells	22
Suction force at -250 mbar	250 N
Voltage	24V - DC
Electrical connection	Male connect M8, 6 pole
with	No vacuum display
Additional function area gripper	1x control valve vacuum / blow-off
Weight	3.4 kg
Sealing element	Suction Cups
Required suction capacity for pu = -0.25 bar	300 l/min
Product family	FMP

Note: Air consumption: At 5.5 bar compressed air input pressure / Suction force: At a vacuum of -0.25 bar and full occupancy of the gripper with a workpiece typical for the application (wooden board with textured surface) / Required suction capacity: The external vacuum generator used must provide at least the specified suction volume (at the vacuum connection piece of the FMP) at a vacuum of -0.25 bar, but max. 135 % of the specified suction volume

Documentation

Software

The matching software for this product is available in this section.

Documentation	Language
Device description file	English
