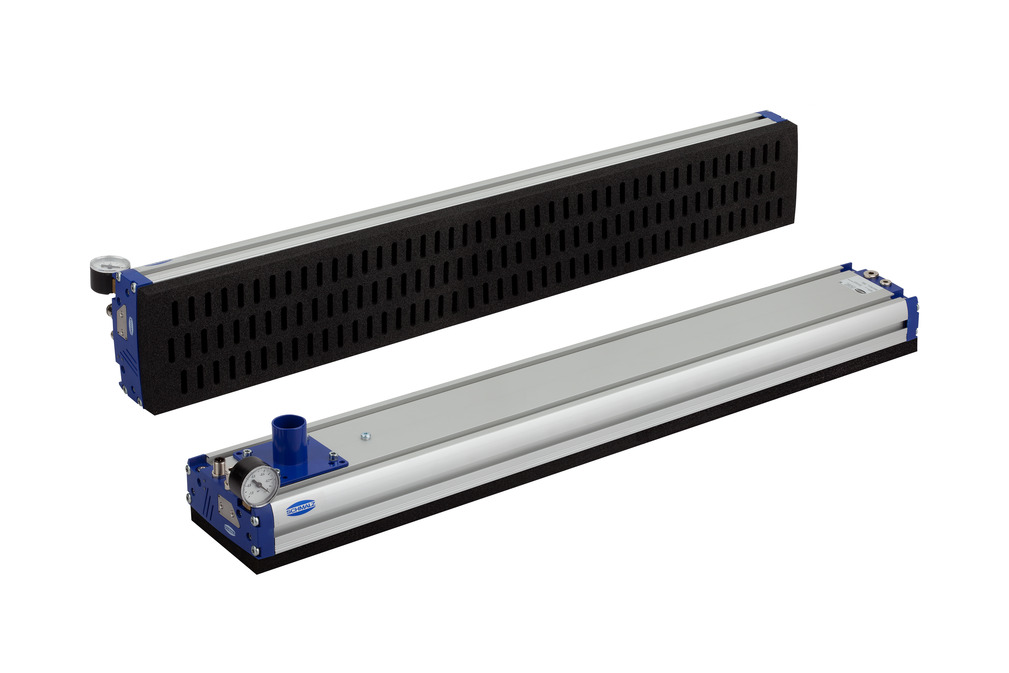

FMP-S-SW70 640 3R18 O20 G32

Part no.: 10.01.38.03432

Vacuum area gripping system for external vacuum generator, with flow resistors

Length L	640 (mm)
Width B	130 (mm)
Arrangement	3R18
Shape fittings	Straight
Outside diameter D	32 (mm)
Additional function area gripper	1x control valve vacuum / blow-off
Max. air consumption blow-off	800 (l/min)
Construction vacuum switch	PNP switching
Weight	3.5 (kg)
Product family	FMP

Product information

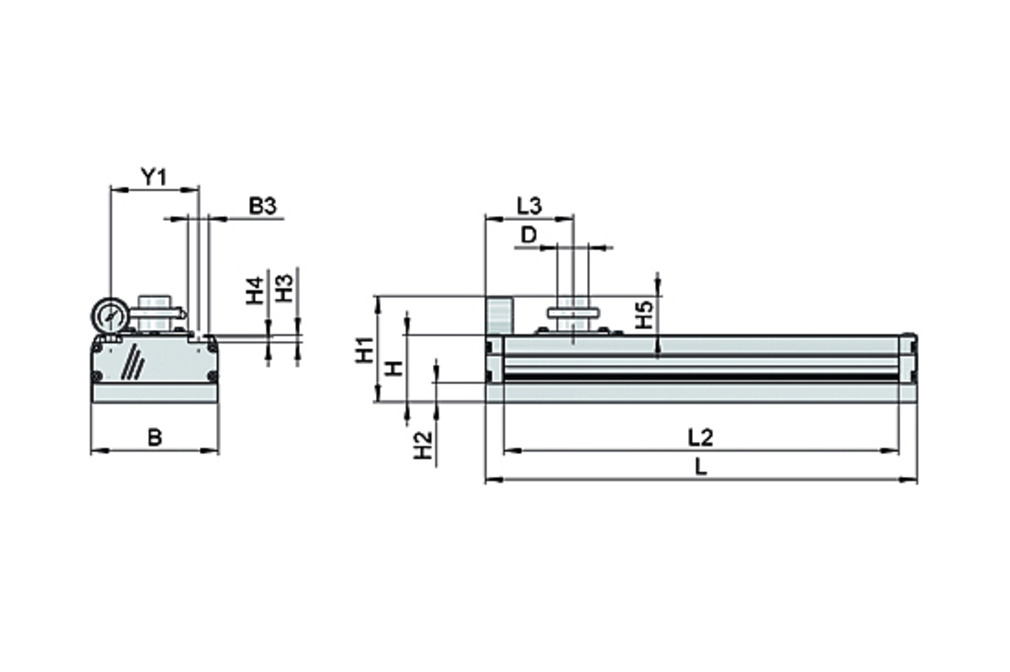

Design Data

Design image

Attribute	Value
B	130 mm
B3	21.6 mm
D	32 mm
H	70 mm
H1	111 mm
H2	20 mm
H3	7.7 mm
H4	5.5 mm
H5	41 mm
L	640 mm
L2	600 mm
L3	77 mm
Y1	90 mm
Valve type	SW

Note: Vacuum hose with internal diameter equal to dimension D required. See Technical Data -> Shape

Technical Data

Attribute	Value
Arrangement	3R18
Number of suction cells	99
Suction force at -250 mbar	660 N
Voltage	24V - DC
Additional function area gripper	1x control valve vacuum / blow-off
Weight	3.5 kg
Sealing element	Sealing Foam
Required suction capacity for pu = -0.25 bar	450 l/min
Product family	FMP

Note: Air consumption: At 5.5 bar compressed air input pressure / Suction force: At a vacuum of -0.25 bar and full occupancy of the gripper with a workpiece typical for the application (wooden board with textured surface) / Required suction capacity: The external vacuum generator used must provide at least the specified suction volume (at the vacuum connection piece of the FMP) at a vacuum of -0.25 bar, but max. 135 % of the specified suction volume

Documentation

Spare parts

VENT-BGR FMP-S-32

VENT-BGR FMP-S-32 10.01.38.03516 Building group Solenoid valve Control of vacuum and compressed air

contains	Multiway valve pneumatic
Utilization design	Vacuum area gripping system FMP-S

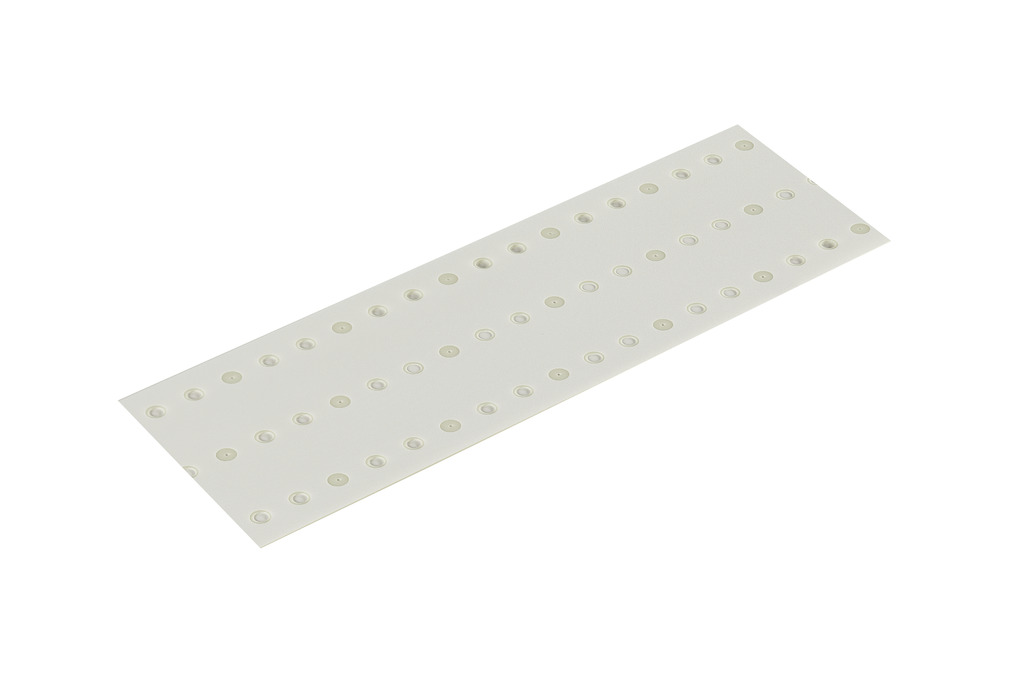

MASK-FOL SW70 600 3R18 FXP-FMP

MASK-FOL SW70 600 3R18 FXP-FMP 10.01.38.00503 Front foil

Length L	600 (mm)
Width B	109.8 (mm)
Height H	0.4 (mm)
Arrangement suction cells	3 rows, 18 mm
Measuring range [bar]	bar
Nozzle diameter	0.7 (mm)
Utilization design	Vacuum area gripping system FXP-FMP

DI-PL 640x128 3R18 LL-20x7 O20 KE

DI-PL 640x128 3R18 LL-20x7 O20 KE 10.01.38.00405 Sealing plate (FXP/FMP/FA-X/FA-M)

Length L	640 (mm)
Width B	128 (mm)
Arrangement	3R18
Additional function area gripper	Adhesive tape on one side

Accessories

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP 26.07.03.00002 Cover Profile

Length L	1450 (mm)
Width B	10 (mm)
Height H	7 (mm)
Material	Plastics
Color	black
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

FLAN-PL 120x85x10 ST FLGR

FLAN-PL 120x85x10 ST FLGR 10.01.10.05701 Flange plate

Length L	120 (mm)
Width B	85 (mm)
Height H	10 (mm)
Material	Steel
Utilization design	Vacuum area gripping system

FLK G1/2-IG G1/2-AG

FLK G1/2-IG G1/2-AG 10.01.03.00175 Flexible suction cup mounting for adaptation to sloping surfaces

Thread G1	G1/2"-F
Thread G2	G1/2"-M
Operating temperature	0 ... 70 °C

FST-FLEX 25 HD1 G1/2-AG G3/8-IG

FST-FLEX 25 HD1 G1/2-AG G3/8-IG 10.01.10.05697 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 25 HD2 G1/2-AG G3/8-IG

FST-FLEX 25 HD2 G1/2-AG G3/8-IG 10.01.10.05695 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 50 HD1 G1/2-AG G3/8-IG

FST-FLEX 50 HD1 G1/2-AG G3/8-IG 10.01.10.05687 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 50 HD2 G1/2-AG G3/8-IG

FST-FLEX 50 HD2 G1/2-AG G3/8-IG 10.01.10.05168 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 75 HD1 G1/2-AG G3/8-IG

FST-FLEX 75 HD1 G1/2-AG G3/8-IG 10.01.10.05698 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 75 HD2 G1/2-AG G3/8-IG

FST-FLEX 75 HD2 G1/2-AG G3/8-IG 10.01.10.05696 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 25 HD1 G1/2-AG G3/8-IG

FST-STARR 25 HD1 G1/2-AG G3/8-IG 10.01.10.05810 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 25 HD2 G1/2-AG G3/8-IG

FST-STARR 25 HD2 G1/2-AG G3/8-IG 10.01.10.05806 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 50 HD1 G1/2-AG G3/8-IG

FST-STARR 50 HD1 G1/2-AG G3/8-IG 10.01.10.05809 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 50 HD2 G1/2-AG G3/8-IG

FST-STARR 50 HD2 G1/2-AG G3/8-IG 10.01.10.05805 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 75 HD1 G1/2-AG G3/8-IG

FST-STARR 75 HD1 G1/2-AG G3/8-IG 10.01.10.05808 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 75 HD2 G1/2-AG G3/8-IG

FST-STARR 75 HD2 G1/2-AG G3/8-IG 10.01.10.05803 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

MOD-FLAN 120x120 FXP-FMP

MOD-FLAN 120x120 FXP-FMP 10.01.21.00244 Flange module

Length L	120 (mm)
Width B	120 (mm)
Height H	60 (mm)
Measuring range [bar]	bar
Thread G1	G1/2"-F
Weight	1.1 (kg)
Utilization design	Vacuum area gripping system FXP-FMP

SET fuer-Sensor(FXP/FMP)

SET fuer-Sensor(FXP/FMP)10.01.38.01194 Proximity switch mounting set

SET FXC-FMC

SET FXC-FMC 10.01.21.01291 Mounting set

Length L	119 (mm)
Width B	119 (mm)
Height H	9.6 (mm)
Measuring range [bar]	bar
Thread G1	G1/2"-F
Utilization design	Vacuum area gripping system FXC-FMC

SET FXP-FMP

SET FXP-FMP 10.01.21.02407 Mounting set

Length L	232 (mm)
Width B	119 (mm)
Height H	119 (mm)
Measuring range [bar]	bar
Weight	1.3 (kg)
Utilization design	Vacuum area gripping system FXP-FMP

SET FXP-FMP 4NUTSTEIN G20

SET FXP-FMP 4NUTSTEIN G20 10.01.21.00243 Mounting set

contains	4 sliding blocks
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

STF G1-1/4-IG N

STF G1-1/4-IG N 10.01.25.07008 Dust filter

Height H	116 (mm)
Outside diameter D	136 (mm)
Measuring range [bar]	bar
Weight	1 (kg)
Connection	G1-1/4"-F

VAM 40 V U BAR

VAM 40 V U BAR 10.07.02.00046 Vacuum gauge (manometer) for analogue measurement and monitoring of the vacuum

Width B	23 (mm)
Height H	46 (mm)
Outside diameter D	40 (mm)
Measuring range [bar]	-1,00 ... 0,00 bar
Shape manometers	Connection at bottom
Vacuum connection	G1/8"-M
Thread G1	G1/8"-M
Weight	0.06 (kg)

VENT-EINH 8/6 NC 24V-DC

VENT-EINH 8/6 NC 24V-DC 10.01.21.02405 Valve unit

Connection	Hose 8/6
Control valve	Normally closed
Utilization design	Vacuum area gripping system FXP-FMP

VSL 42-32 PU-DS-AS TR

VSL 42-32 PU-DS-AS TR 10.07.09.00036 Hose for vacuum and compressed-air systems

Outside diameter D	42 (mm)
Internal diameter d	32 (mm)
Length max.	20 (m)
Material hose	PU, wire spiral, antistatic
Bending radius min.	25 (mm)
Pressure range (operating pressure) [bar]	-1.00 ... 3.77 bar
Operating temperature	-40 ... 90 °C
Color	Transparent

VS-MONT 50x15.8x25 VS

VS-MONT 50x15.8x25 VS 10.06.02.00343 Vacuum switch (inst)

Length L	50 (mm)
Width B	15.8 (mm)
Height H	25 (mm)
Special function	Can be mounted upright
Measuring range [bar]	bar
Utilization design	Vacuum switch

VS-MONT 76.5x19 VSi FXP-FMP

VS-MONT 76.5x19 VSi FXP-FMP 10.01.38.02485 Vacuum switch (inst)

Length L	76.5 (mm)
Width B	19 (mm)
Special function	Can be mounted upright
Additional function area gripper	Vacuum and pressure switch VSi
Measuring range [bar]	bar
with	Vacuum and pressure switch
Utilization design	Vacuum area gripping system FXP-FMP

VTR-SL 3x RST60 2xD32

VTR-SL 3x RST60 2xD32 10.01.43.00013 Vacuum distributor with hose connector

Length L	439 (mm)
Width B	100 (mm)
Height H	127.5 (mm)

ASK B-M12-5 5000 K-5P

ASK B-M12-5 5000 K-5P 21.04.05.00080 Connection cable

Electrical connection	Fem connect M12, 5 pol
Cable length	5000 (mm)
Connection 2	Cable, 5-pole
Material hose	PUR cable

VSL 8-6 PU MI-TR

VSL 8-6 PU MI-TR 10.07.09.00003 Hose for vacuum and compressed-air systems

Outside diameter D	8 (mm)
Internal diameter d	6 (mm)
Length max.	500 (m)
Material hose	PU
Bending radius min.	45 (mm)
Pressure range (operating pressure) [bar]	-0.95 ... 10.00 bar
Operating temperature	-35 ... 60 °C
Color	Milky-transparent

FLAN-PL 120x120x10 FXC-FMC

FLAN-PL 120x120x10 FXC-FMC 10.01.21.00313 Flange plate

Length L	120 (mm)
Width B	120 (mm)
Height H	10 (mm)
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXC-FMC

FLK G1/2-IG G1/2-AG V

FLK G1/2-IG G1/2-AG V 10.01.03.00207 Flexible suction cup mounting for adaptation to sloping surfaces

Thread G1	G1/2"-F
Thread G2	G1/2"-M
Operating temperature	0 ... 70 °C
Shape mounting elements	reinforced

SCHL-AN 32-79x79x40 FMP-S

SCHL-AN 32-79x79x40 FMP-S 10.01.38.03581 Hose connector - straight pre-assemb

Length L	79 (mm)
Width B	79 (mm)
Height H	40 (mm)
Hole spacing X1	50 (mm)
Hole spacing Y1	62 (mm)
Outside diameter D	32 (mm)
Utilization design	Vacuum area gripping system FMP-S

SCHL-AN W 32-79x79x29 FMP-S

SCHL-AN W 32-79x79x29 FMP-S 10.01.38.04297 Hose connector - 90° pre-assemb

Length L	79 (mm)
Width B	79 (mm)
Height H	29 (mm)
Hole spacing X1	62 (mm)
Hole spacing Y1	50 (mm)
Outside diameter D	32 (mm)
Utilization design	Vacuum area gripping system FMP-S

VRS-PL 79x79x12 SPZ G2-IG

VRS-PL 79x79x12 SPZ G2-IG 10.01.21.01280 Sealing plate - pre-assembly

Length L	79 (mm)
Width B	79 (mm)
Height H	12 (mm)
Thread G1	G2"-F
Utilization design	Schmalz palletizer
