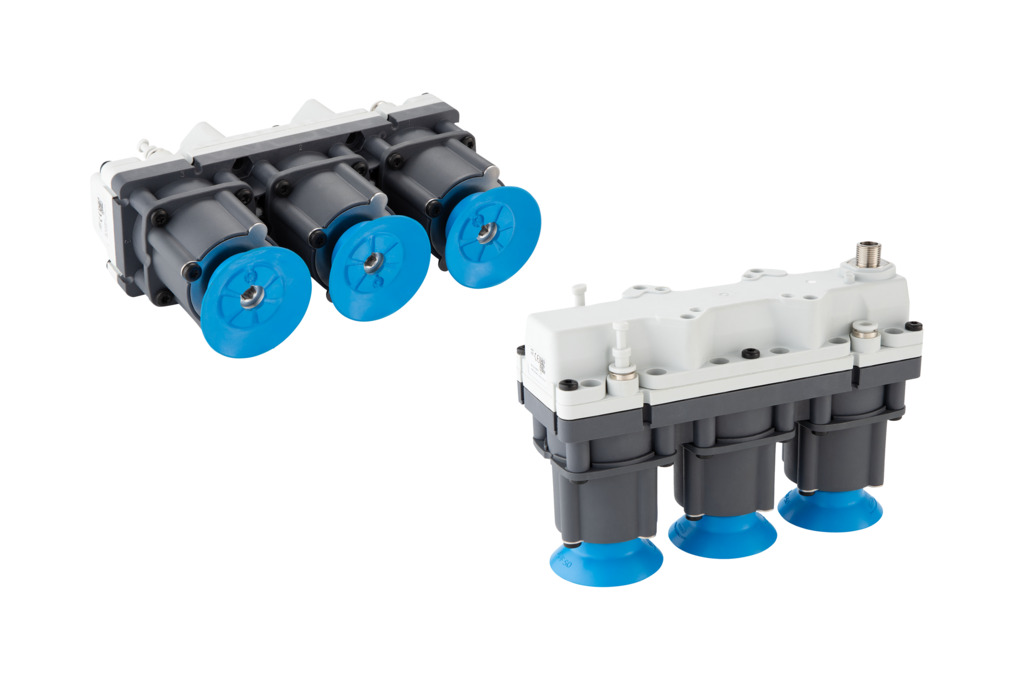

FMG 180x60x120 60 3 50-HT1
Part no.: 10.12.10.00177
Vacuum area gripper with individually activatable suction points
| Length L | 180 (mm) |
| Width B | 60 (mm) |
| Height H | 120 (mm) |
| 60 (mm) | |
| Number of suction plates | 3 |
| Diameter Ds | 50 (mm) |
| Suction cup material | |
| Suction stroke Zs | 5 (mm) |
| Cylinder stroke Z | 10 (mm) |
| Lift capacity (horizontal) | 285 (N) |
| Weight | 950 (g) |
| Communication | IO-Link (Class B) |
| Electrical connection | Male connect M12, 5 pol |
| Pressure range (operating pressure) [bar] | 4.0 ... 6.0 bar |
| Operating temperature max. | 50 (°C) |

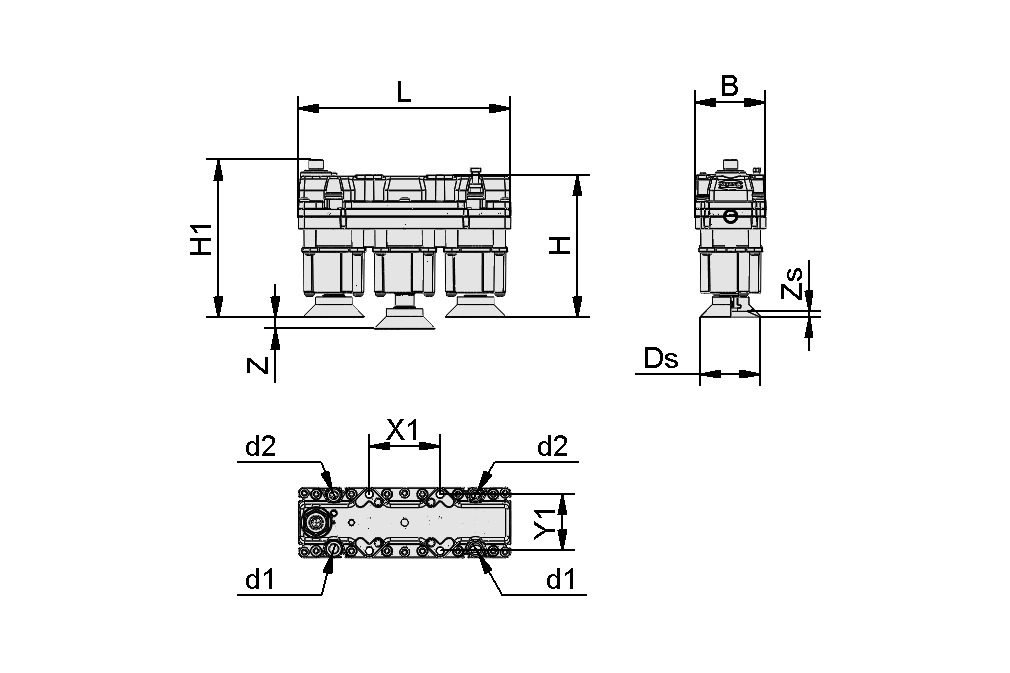

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 60 mm |
| d1 | 8 mm |
| d2 | 6 mm |
| Ds | 50 mm |
| H | 120 mm |
| H1 | 133 mm |
| L | 180 mm |
| X1 | 60 mm |
| Y1 | 48 mm |
| Z | 10 mm |
| Zs | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of suction plates | 3 |
| Suction cup material | |
| Communication | IO-Link (Class B) |
| Electrical connection | Male connect M12, 5 pol |
| Pressure range (operating pressure) [bar] | 4.0 ... 6.0 bar |
| Pressure max. | 6 bar |
| Lift capacity (horizontal) | 285 N |
| Operating temperature max. | 50 °C |
| Weight | 950 g |
Documentation
Documentation
Software
Software
The matching software for this product is available in this section.
| Documentation | Language |
|---|---|
| English |
Available soon
The matrix area gripper will be available from February 2026.
Are you interested? For more information, please fill out our contact form.
Spare parts
VRS-STEC 6x14.410.08.06.00012Sealing plug
| Operating temperature | °C |
| Outside diameter D | 6 (mm) |
| Length L | 14.4 (mm) |
VRS-STEC 8x18.510.08.06.00013Sealing plug
| Operating temperature | °C |
| Outside diameter D | 8 (mm) |
| Length L | 18.5 (mm) |
SUF 50 HT1-60 G1/8-AG10.01.01.15929Flat suction cup (round) for process
safe handling of smooth or slightly
rough surfaces
| Size | 50 |
| Suction cup material | |
| Material hardness [Shore A] | 60 (Shore A) |
| Number of folds | 0 |
