- NEW
Part no.: 10.01.44.00570

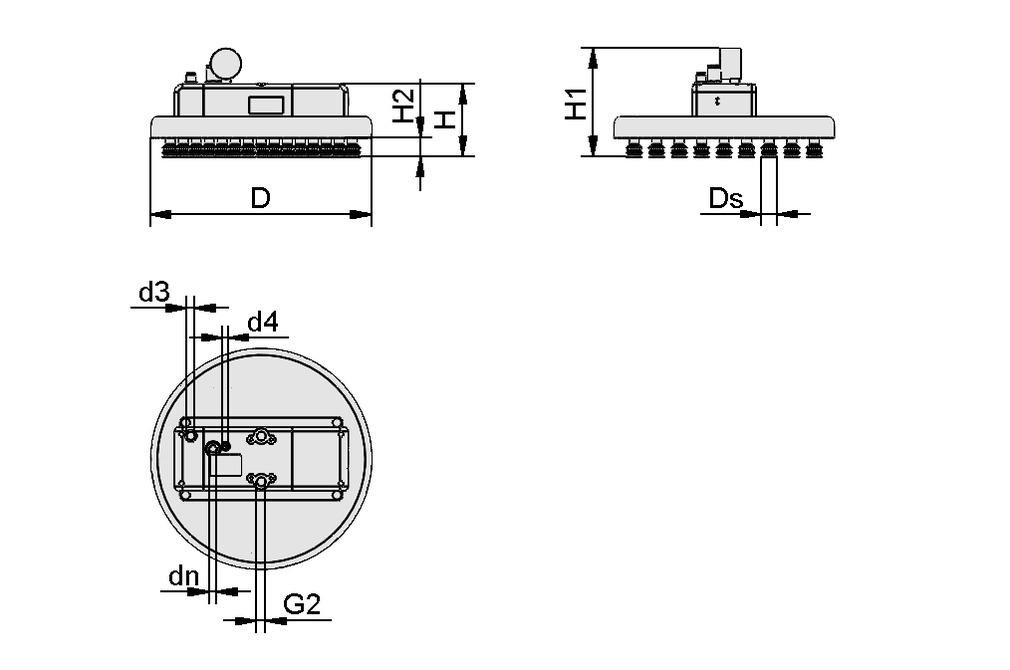

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 280 mm |
| dn | 10 mm |
| Ds | 20 mm |
| G2 | M5-F |
| H | 92.6 mm |
| H1 | 138.1 mm |
| H2 | 24.3 mm |
| L | 280 mm |
| Suction cup type | Bellows suction cups SPB2 |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Shape | Integrated vacuum generation |
| Form | Circular |
| Nozzle diameter | 0.8 mm |
| Control valve | Normally open |
| Construction vacuum switch | PNP switching |
| Number of suction cells | 56 |
| Weight | 1.4 kg |
Documentation
Documentation
Spare parts
SW 80 P 7.310.05.04.00090Flow resistor for reduction of the
volume flow rate
| Nominal size | 0,80 mm |
| Shape | Push In |
| Length L | 15.5 (mm) |
| Material | Polyoxymethylene |
| Outside diameter D | 7.3 (mm) |
SPB2 20 SI-40 P10.01.06.03125Bellows suction cup (round)
with 2.5 corr. for dynamic handling
of cardboard and rigid packaging
| Size | 20 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 40 (Shore A) |
| Number of folds | 2.5 |
| Shape | Push In |
FD 16 12010.01.06.02565Filter disc
| Outside diameter D | 16 (mm) |
| Filter pore size | 120 (µm) |
| Utilization design | Bellows suction cup |
| Size | FG20/FGA20 |
Accessories
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
ASK WB-M12-5 5000 K-4P21.04.05.00557Connection cable
| Electrical connection | Elbow fem con M12, 5pol |
| Material hose | PUR cable |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 4-pole |
VAM 40 V U BAR10.07.02.00046Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at bottom |
| Vacuum connection | G1/8"-M |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |
VSi V D M8-410.06.02.00577Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
