Part no.: 10.01.06.03125

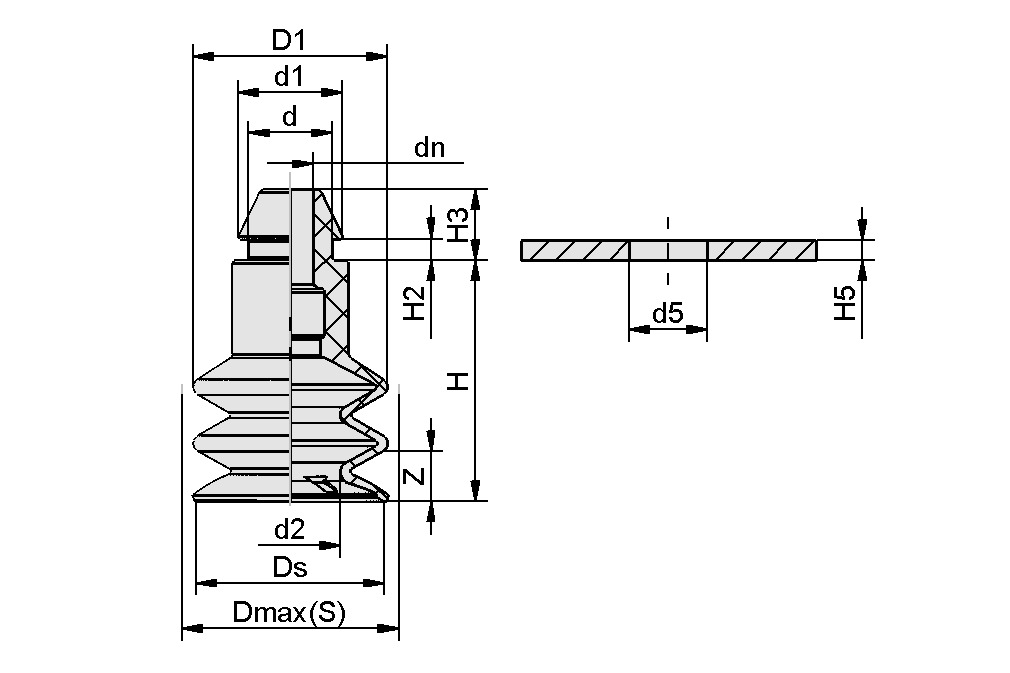

| Attribute | Value |
|---|---|
| d | 8.5 mm |
| d1 | 11.8 mm |
| d2 | 10.2 mm |
| d5 | 7.9 mm |
| dn | 4.6 mm |
| D1 | 20 mm |
| Dmax(S) | 20.5 mm |
| Ds | 19.6 mm |
| H | 24.3 mm |
| H2 | 2.2 mm |
| H3 | 7.2 mm |
| H5 | 2 mm |
| Z (Stroke) | 9 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 4.9 N |
| Pull-off force | 8 N |
| Volume | 2.5 cm³ |
| Workpiece radius min. (convex) | 25 mm |
| Size | 20 |
| Number of folds | 2.5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 40 Shore A |
| Weight | 2.5 g |
| Product family | SPB2 |
| Outside diameter D | 16 (mm) |
| Filter pore size | 120 (µm) |
| Utilization design | Bellows suction cup |
| Size | FG20/FGA20 |
| Size | 20 |
| Material | Polyamide |
| Utilization | SPB2-20 |
| Nominal size | 1,00 mm |
| Shape | Push In |
| Length L | 15.5 (mm) |
| Material | Polyoxymethylene |
| Outside diameter D | 7.3 (mm) |
| Nominal size | 1,30 mm |
| Shape | Push In |
| Length L | 15.5 (mm) |
| Material | Polyoxymethylene |
| Outside diameter D | 7.3 (mm) |
| Nominal size | 1,50 mm |
| Shape | Push In |
| Length L | 15.5 (mm) |
| Material | Polyoxymethylene |
| Outside diameter D | 7.3 (mm) |
| Nominal size | 0,80 mm |
| Shape | Push In |
| Length L | 15.5 (mm) |
| Material | Polyoxymethylene |
| Outside diameter D | 7.3 (mm) |
