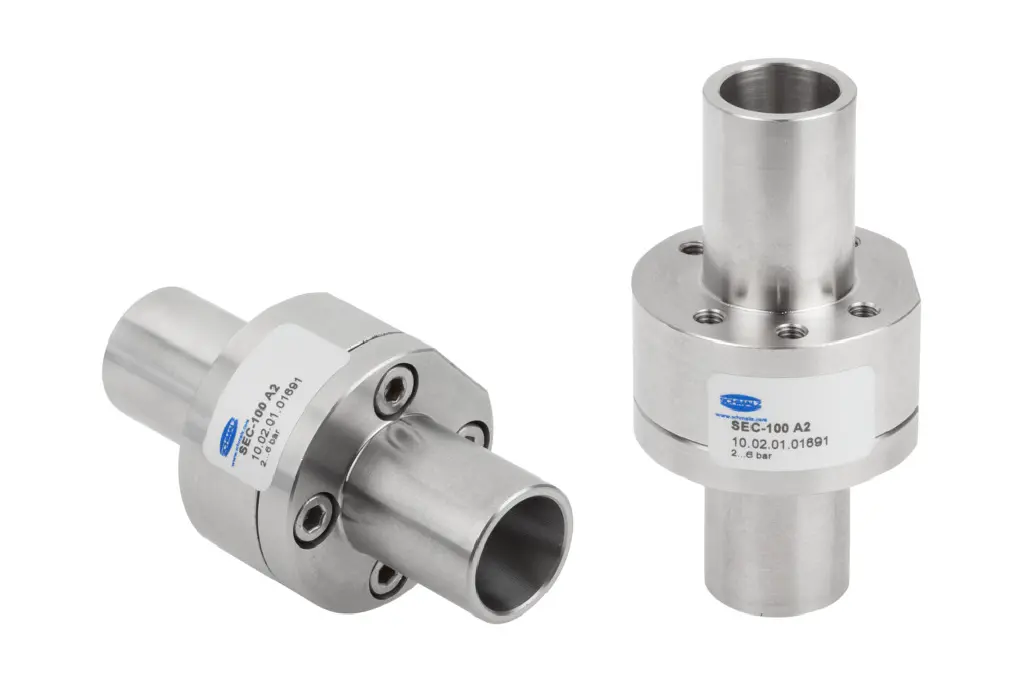

SEC-100 A2
Part no.: 10.02.01.01691
Powerful ejector for very porous parts
Industries: Chemicals | Food | Logistics | Universal
| Nozzle size | 10.0 mm |
| Suction rate (max.) | 36.6 (m³/h) |
| Material | Austenitic stainless steel |

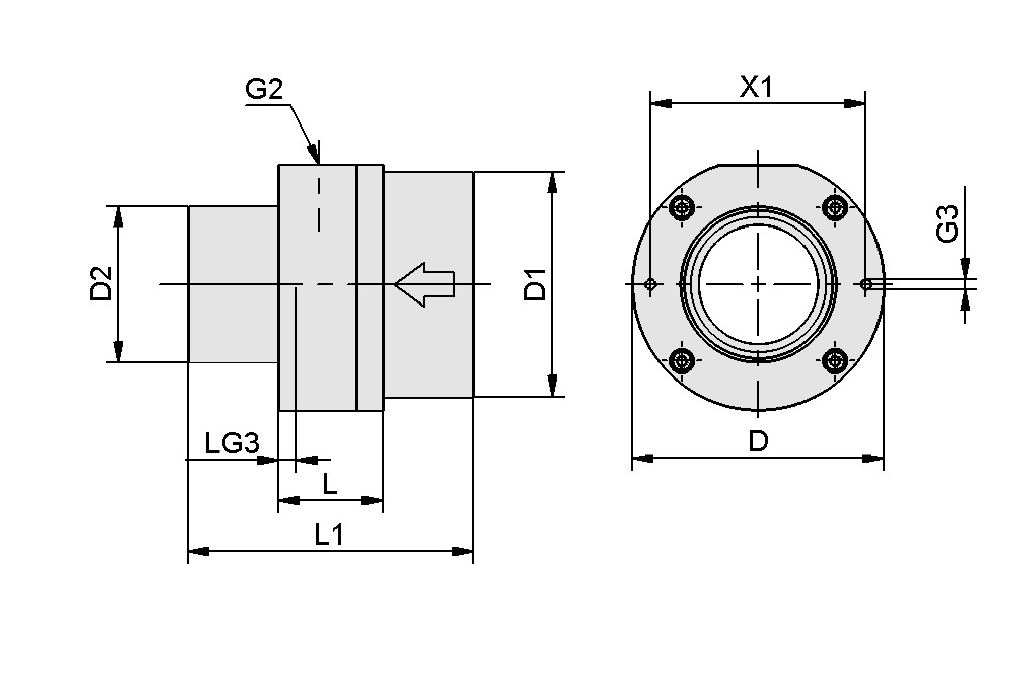

Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 37 mm |
| D1 | 19 mm |
| D2 | 19 mm |
| G2 | |
| G3 | M4-F |
| L | 21 mm |
| L1 | 70 mm |
| LG3 | 8 mm |
| X1 | 29 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Max. vacuum | -170 mbar |
| Suction rate (max.) | 610 l/min |
| Suction rate (max.) | 36.6 m³/h |
| Air consumption suction | 190 l/min |
| Air consumption suction | 11.1 m³/h |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Operating temperature | °C |
| Material | Austenitic stainless steel |
| Weight | 0.21 kg |
| Max. vacuum | -5.02 inHg |
| Suction rate (max.) | 21.54 cfm |
| Air consumption suction | 6.71 cfm |
| Pressure range (operating pressure) [psi] | 29.0 ... 87.0 |
| Product family | SEC |
